| Brand Name: | NO |
| Model Number: | TD03 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 41.00/50.96mm | Type: | Turbochargers |
|---|
1.Model:TD03 Forward

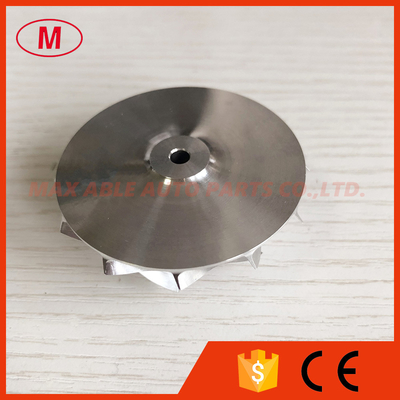

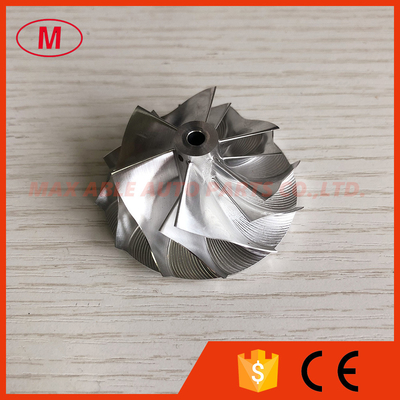

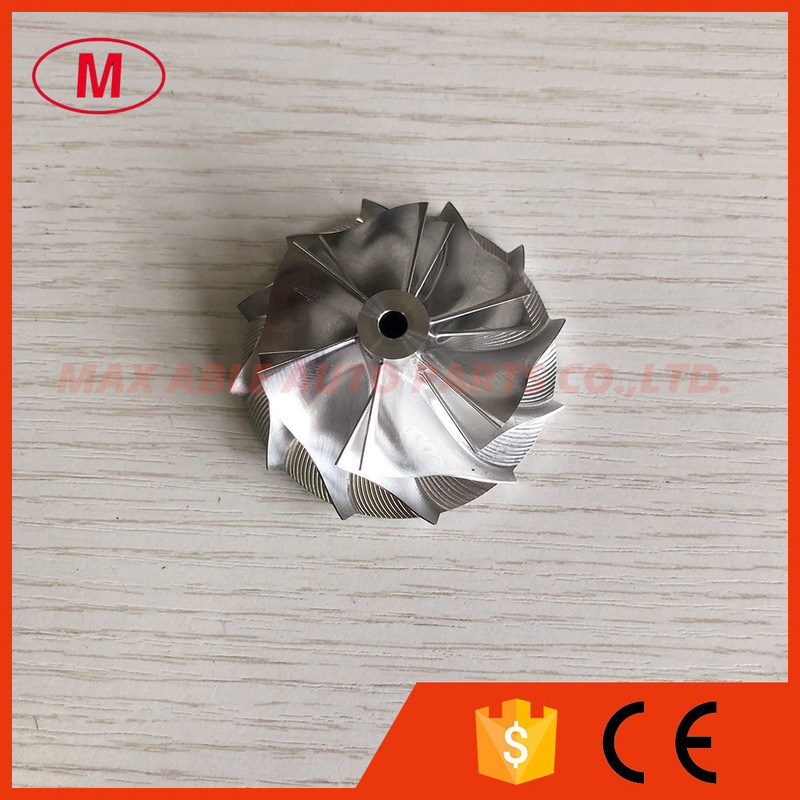

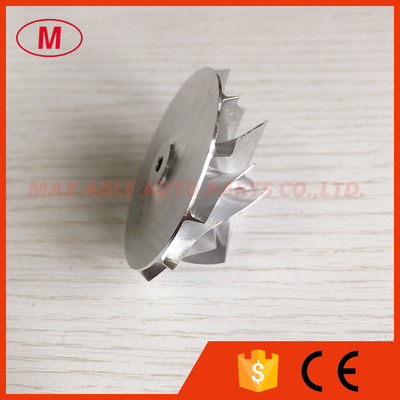

2.TD03 41.00/50.96mm 6+6 blades turbocharger billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:10.25mm
Inducer:41.00mm
Exducer:50.96mm
Tapered tip exducer:54.53mm
Tip height:4.09mm
Superback:1.80mm
Overall height:24.00mm
Bore size:4.00mm
Trailing angle:75
Cutback:8.0
SP Height angle:1.00
Blade height:19.73mm
Splitter height:12.95mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size,please check carefully before buying.
4.High quality ,competitive price and good service.
5.We can also produce as your requirement.
All the compressor wheel have been balanced.
6.If you want more details, please send email to me or talk to me online.
We will try our best to meet your needs.
