| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | CT26 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:CT26 Forward

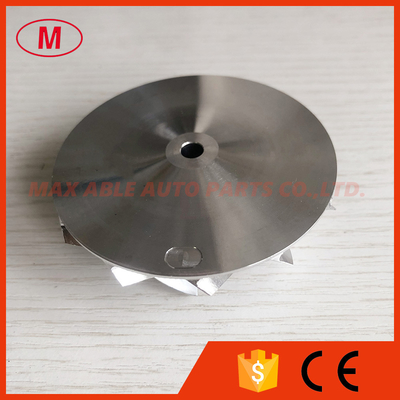

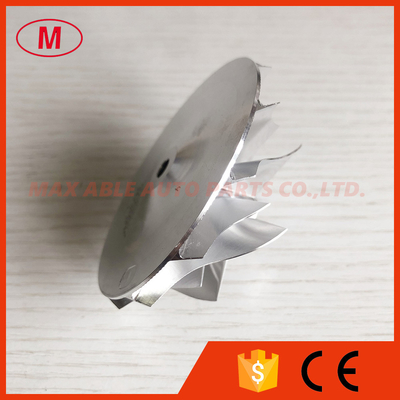

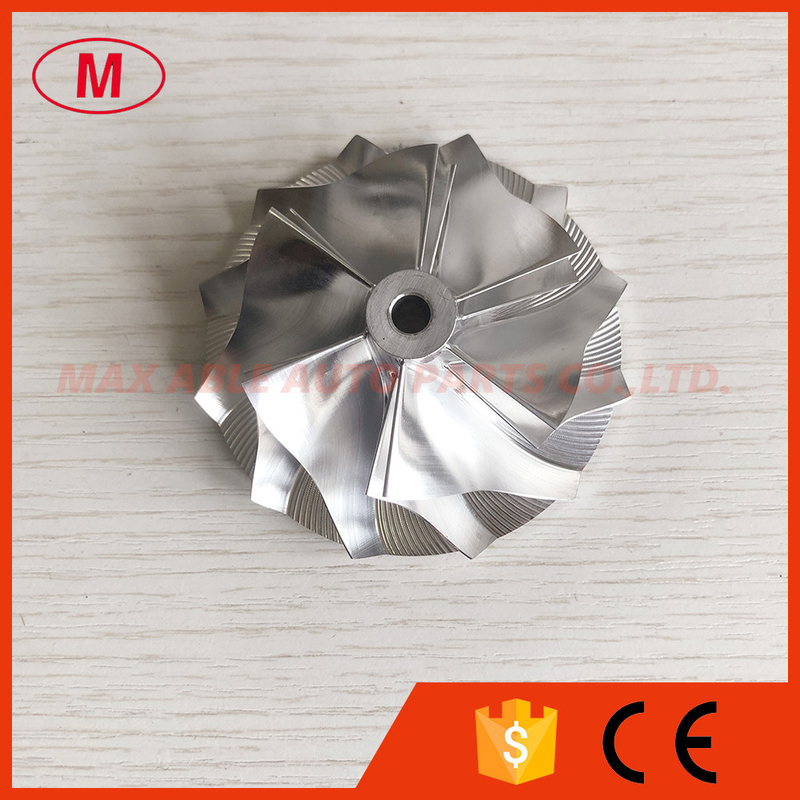

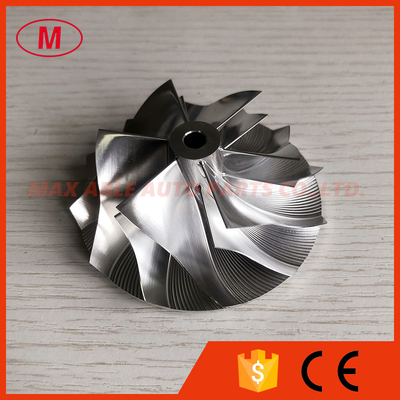

2. CT26 53.11/70.98mm 6+6 blades Turbo aluminum 2618/milling/Billet compressor wheel
3.Size:
Nose diameter:13.32mm
inducer:53.11mm
exducer:70.98mm
Tapered tip exducer:74.07mm
Tip height:5.49mm
bore size :5.70mm
bore type:through
Overall height:27.78mm
Superback:2.00mm
Trailing angle:45 degree
Cutback:1.0mm
SP Height angle:-3.70
Blades height:24.08mm
Splitter height:16.80mm
6+6 blades
forward rotation
Tapered tip angle:19 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
All the billet compressor wheels have been balanced.
