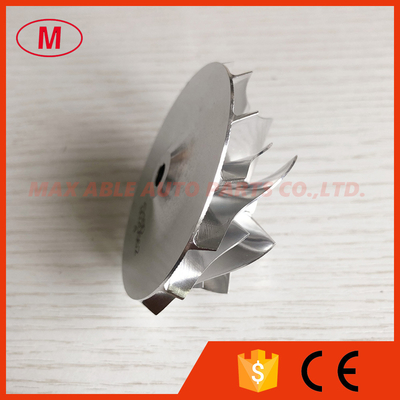

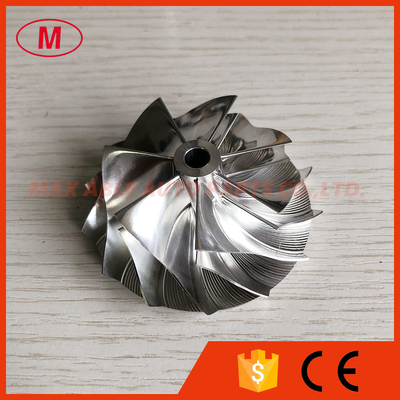

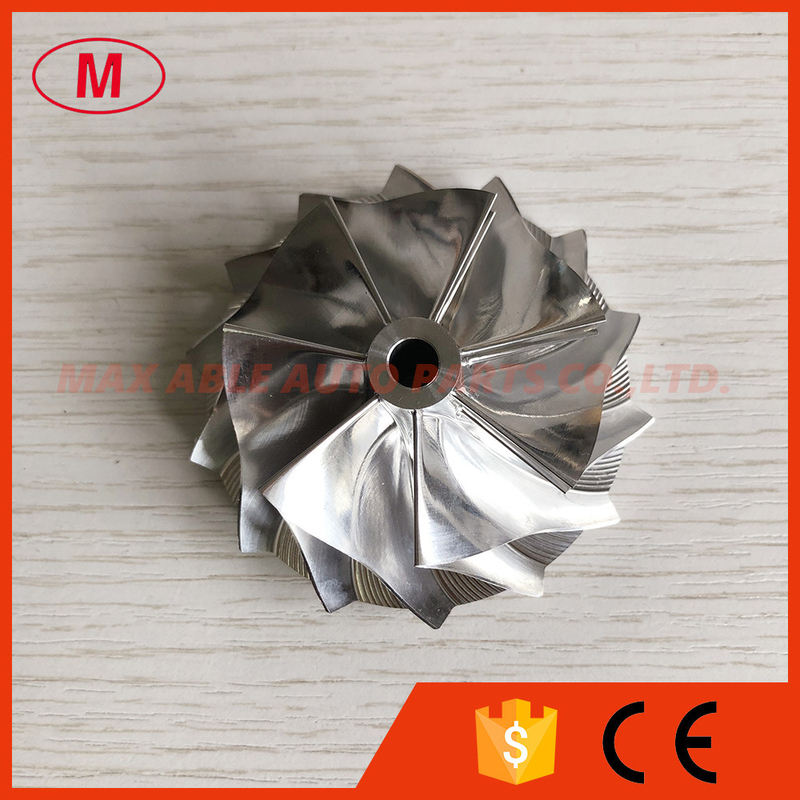

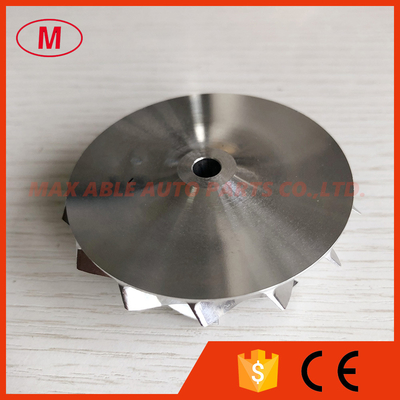

TB25 445436-0009 47.20/60.13mm 7+7 blades high performance turbo billet/milling/aluminum 2618 compressor wheel

Model Number:	TB25

Contact Now

Detailed Product Description

1.Model:TB25 Forward

2. TB25 445436-0009 47.20/60.13mm 7+7 blades high performance turbocharger billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:11.35mm

Inducer:47.20mm

Exducer:60.13mm

Tapered tip exducer:64.80mm

Tip height:5.04mm

Superback:2.30mm

Overall height:24.81mm

Bore size:5.99mm

Trailing angle:60

Cutback:0.0

SP Height angle:-7.50

Blade height:21.21mm

Splitter height:14.30mm

7+7 blades

Forward rotation

Tapered tip angle:30 degree

Fits OE Compressor Housing

4.High quality ,competitive price and good service.

5.We can also produce as your requirement.

All the compressor wheel have been balanced.

6.If you want more details, please send email to me or talk to me online.

We will try our best to meet your needs.
