| Model Number: | K04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | , T/T, Western Union, MoneyGram |
| Supply Ability: | 1000PCS /MONTHS |
1. MODEL:K04 forward

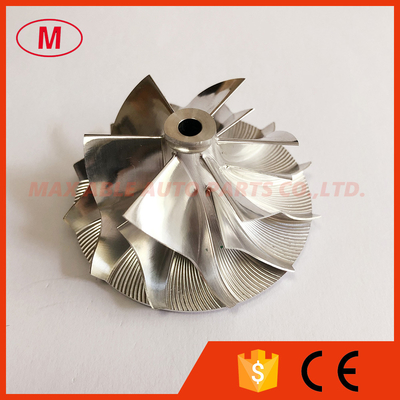

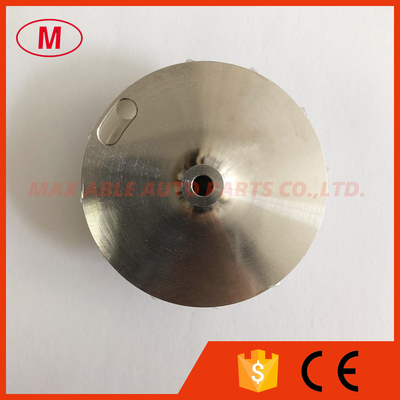

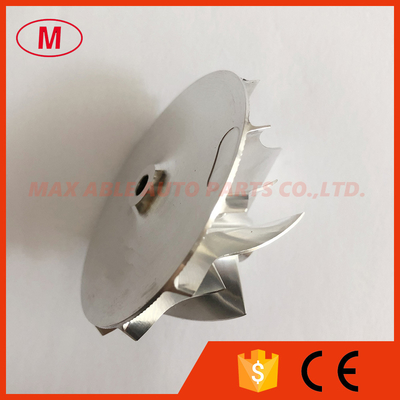

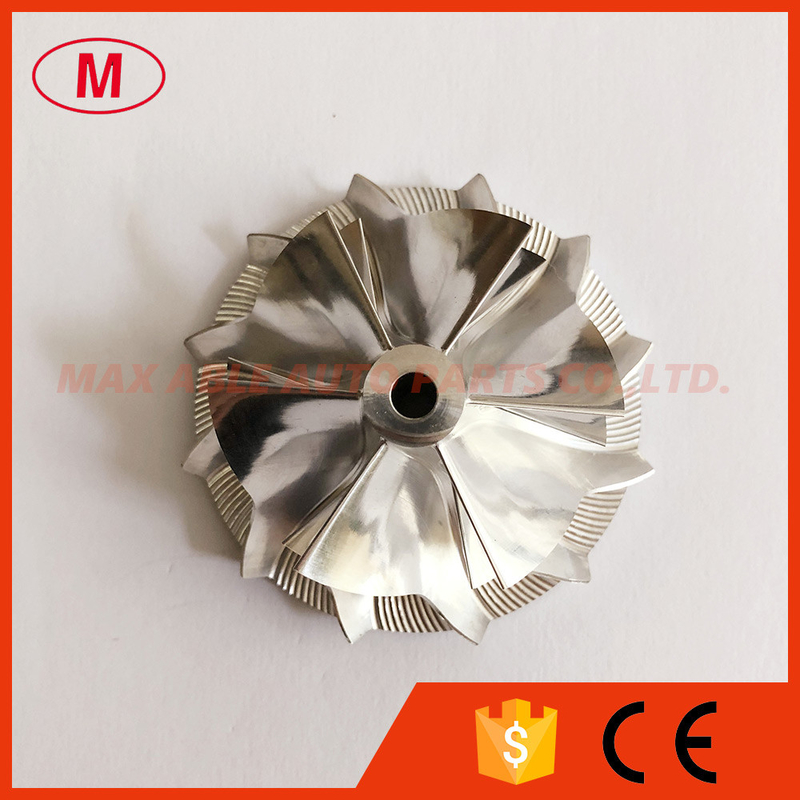

2.K04 43.30/56.08mm 6+6 blades high performance billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:10.30mm
inducer:43.30mm
Exduder:56.08mm
Tapered tip exducer:59.55mm
Tip height:4.00mm
Superback:2.60mm
Overall height:27.70mm
bore size :4.61mm
bore type:through
Trailing Angle:60 degree
Cutback:2.5
SP height angle:-3.00
Blade height:22.00mm
Splitter height:13.80mm
6+6 blades
Tapered tip Angle:30 degree
Forward rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
All the billet compressor wheels have been balanced.
The more models we also have.
