| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:RHF5 reverse

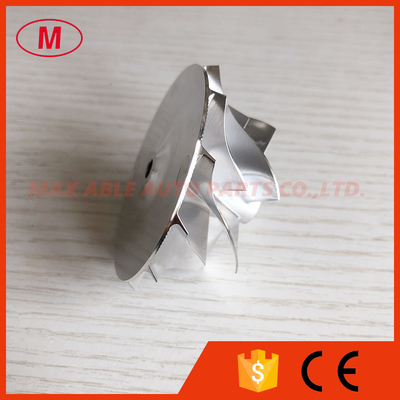

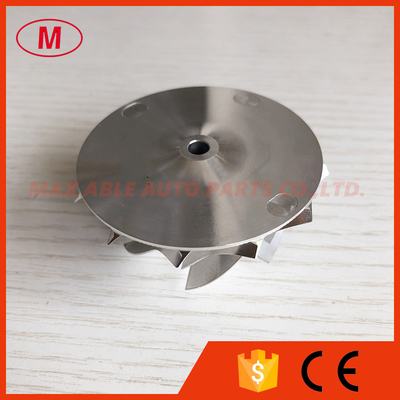

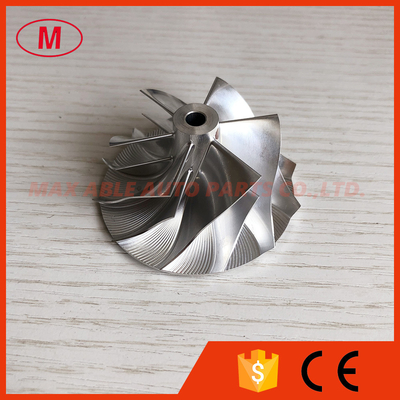

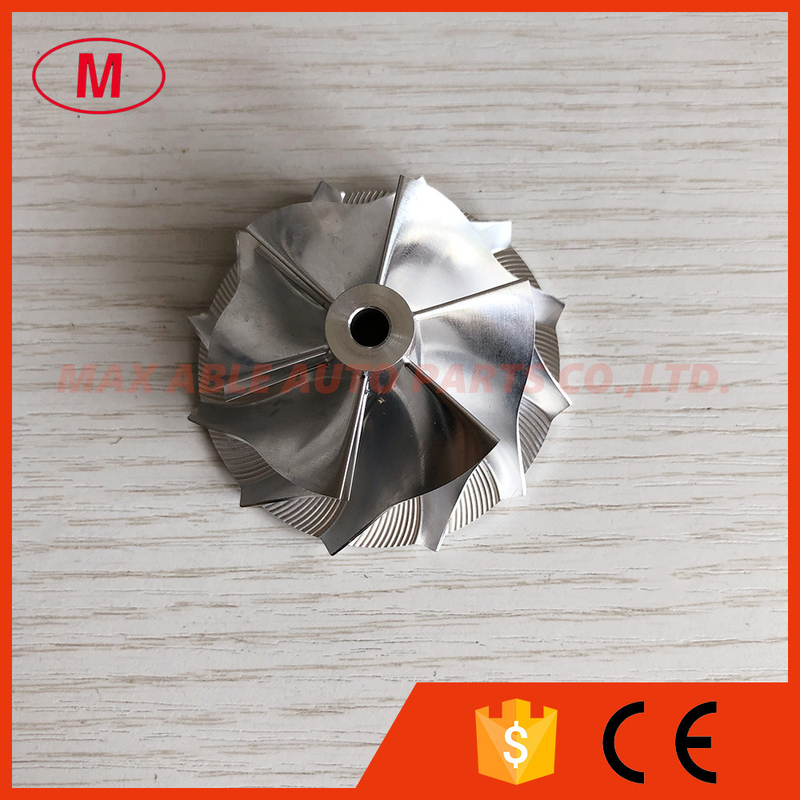

2. RHF5 reverse 6+6 blades 44.93/58.00mm high performance turbo aluminum 2618/Billet/milling compressor wheel for JHJ /06K145702J A3 Golf 7 G1
3.Size:
Nose diameter:11.70mm
Inducer:44.93mm
exducer:58.00mm
Tapered tip exducer:61.80mm
Tip height :4.29mm
superback:1.53mm
Overall height:30.75mm
Bore size:5.10mm
bore type:through
Trailing angle:60 degree
SP height angle:0.00
Blade height:26.00mm
Splitter height:16.90mm
Cutback:2.8
6+6 blades
reverse rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
We can produce as your requirement.
