| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | k04 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 47.56/61.98mm | Type: | Turbochargers |
|---|
1.Model:k04 Forward

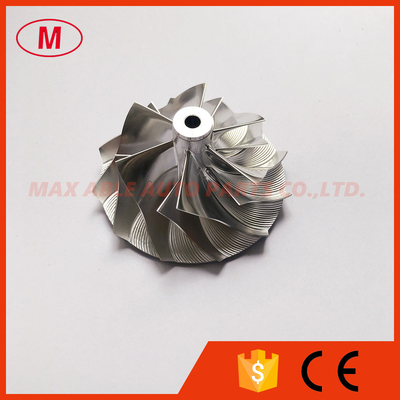

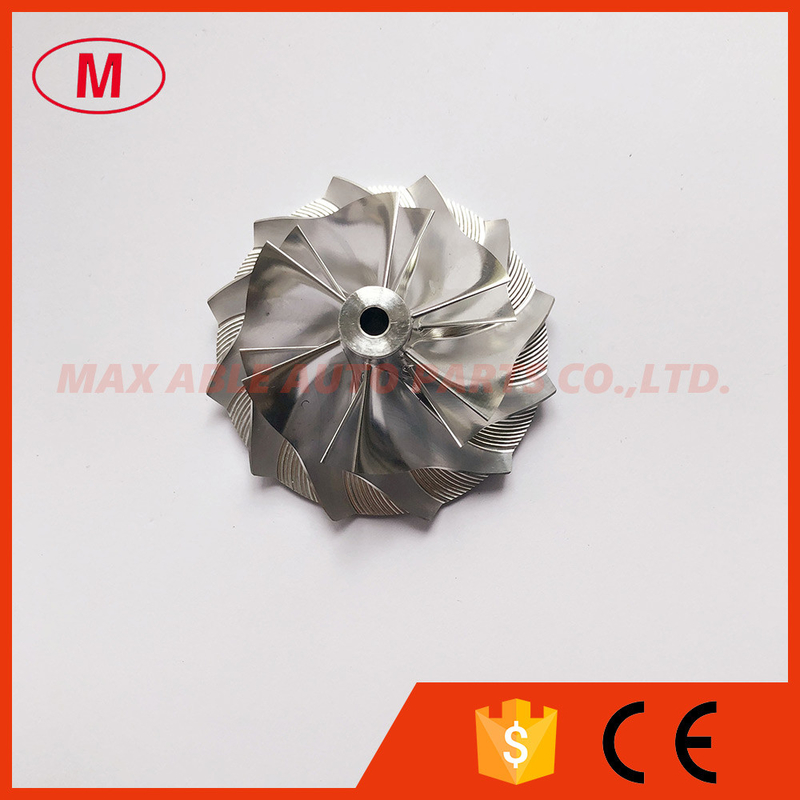

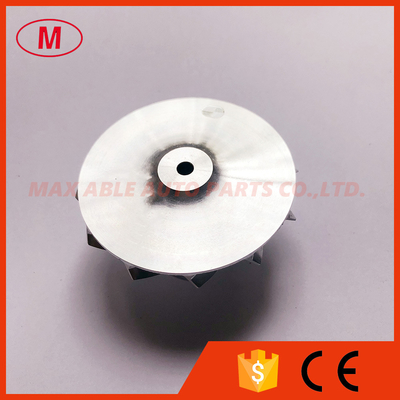

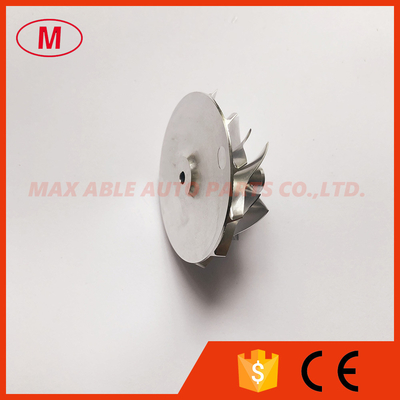

2. K04 47.56/61.98mm 6+6 blades high performance turbocharger turbo billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:11.69mm
Inducer:47.56mm
Exducer:61.98mm
Tapered tip exducer:66.29mm
Tip height:4.73mm
Superback:2.67mm
Overall height:32.37mm
Bore size:4.61mm
Trailing angle:50
Cutback:8.0
Sp height angle:-5.90
Splitter height:16.20
Blade height:23.25mm
6+6 blades
Tapred tip angle:30 degree
It is for Cutom size ,please check carefully before buying.
4.Good quality and competitive price.
5.Forward rotation
6.if you want to know more details ,please send email to me !
All the compressor wheel have been balanced.
We can produce as your requirement.
