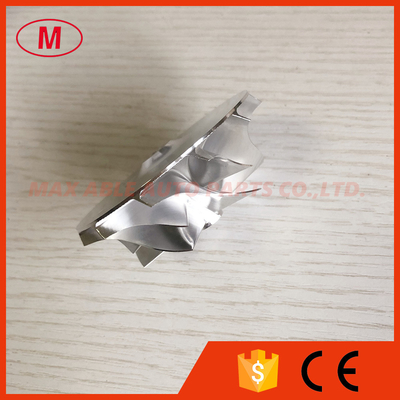

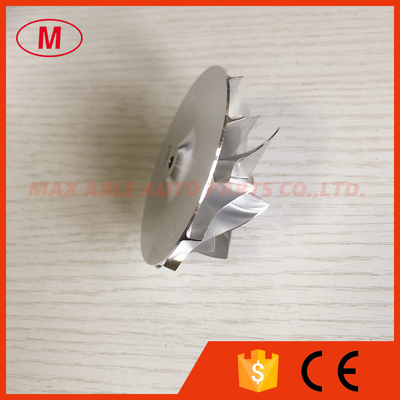

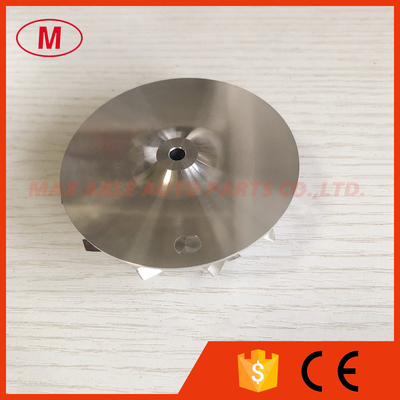

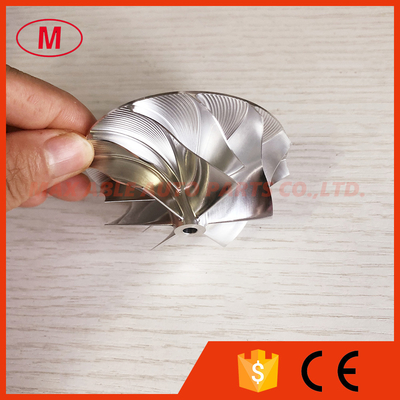

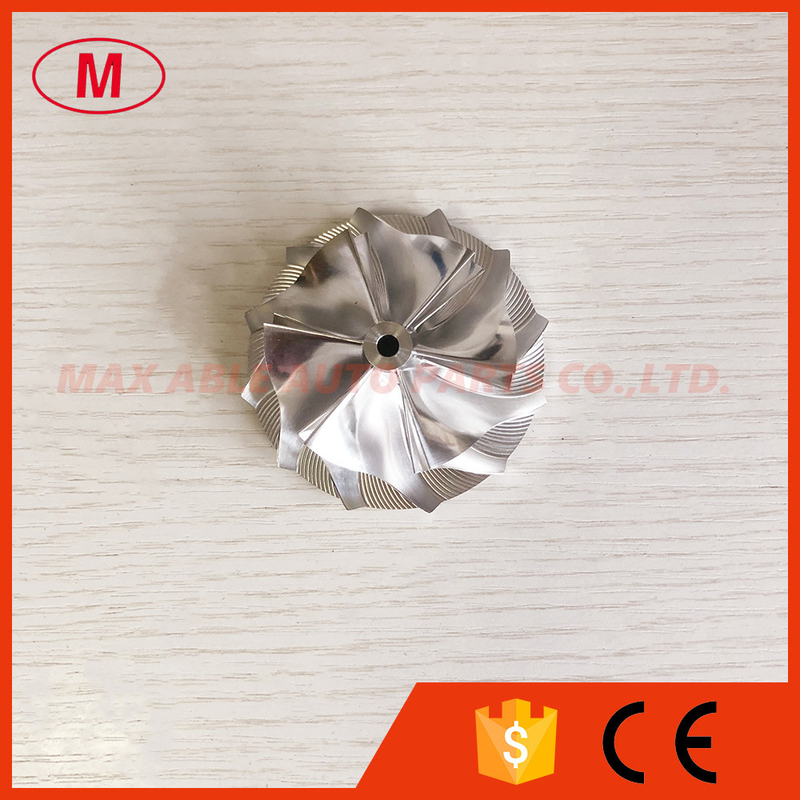

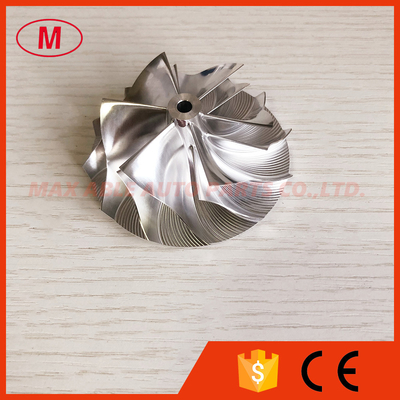

K04 54.00/70.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel

K04 54.00/70.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel

    • K04 54.00/70.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
    • K04 54.00/70.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
    • K04 54.00/70.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
    • K04 54.00/70.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
    • K04 54.00/70.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
    • K04 54.00/70.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel
    • K04 54.00/70.00mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: k04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Size: 54.00/70.00mm Type: Turbochargers





    1. MODEL:K04 forward
    2.K04 54.00/70.00mm 6+6 blades turbo Billet/milling/aluminum 2618 compressor wheel
    3.Size:
    Nose diameter:10.20mm
    Inducer:54.00mm
    exducer:70.00mm
    Tapered tip exducer:73.00mm
    Tip height:5.50mm
    Superback:2.67mm
    bore size :4.61mm
    Bore type:through
    Overall height:29.82mm
    Cutback:3.0
    Trailing Angle:60 degree
    SP height angle:-5.30
    Blade height:25.08mm
    Splitter height:17.50mm
    6+6 blades forward
    It is custom size ,please check carefully before buying.
    Tapered tip Angle:18.4 degree

    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheels have been balanced.
