| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | S400 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 74.53/101.44mm | Type: | Turbochargers |
|---|
1. MODEL:S400 Forward

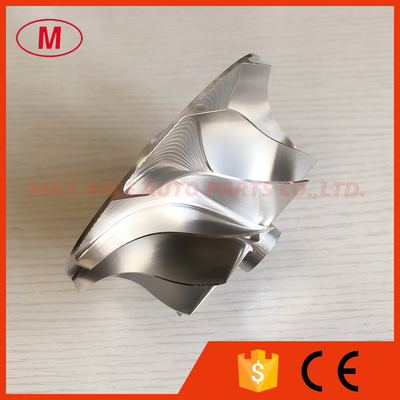

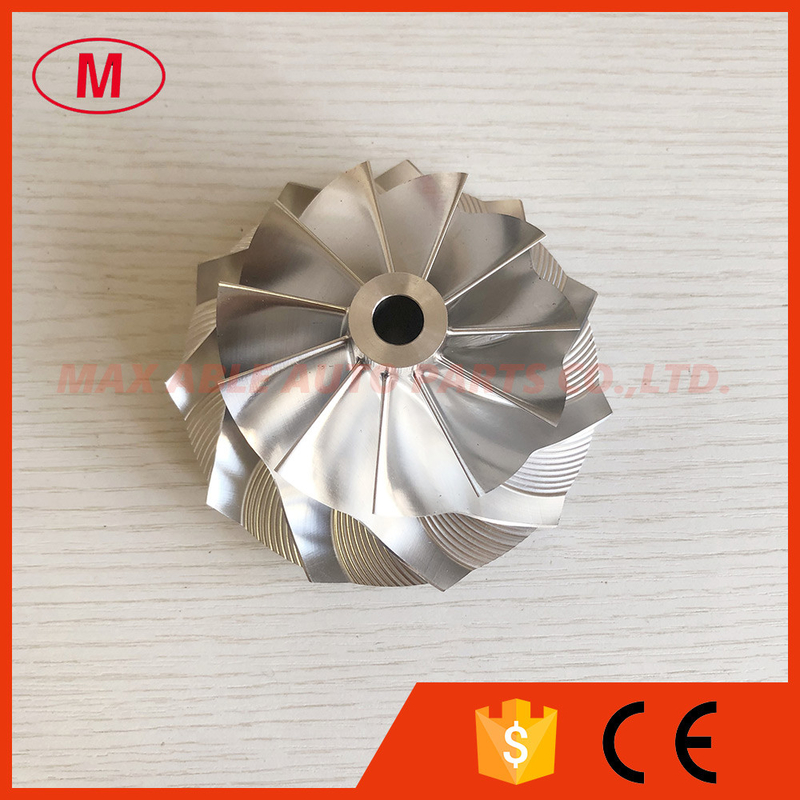

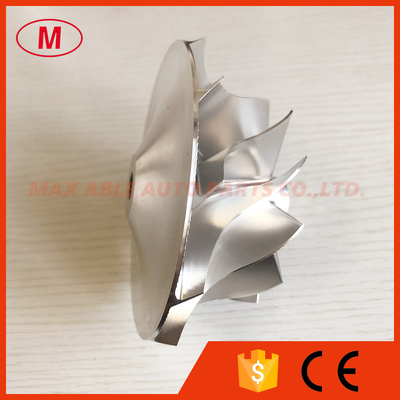

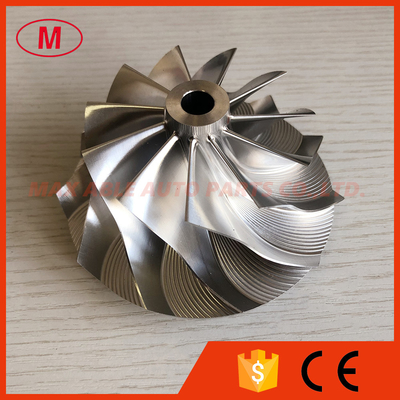

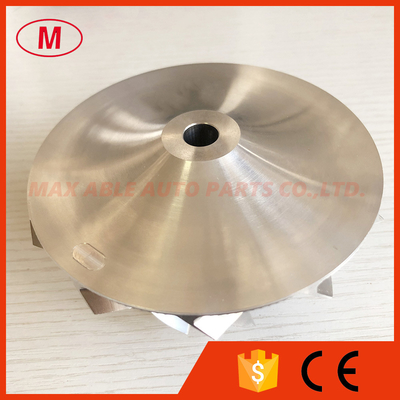

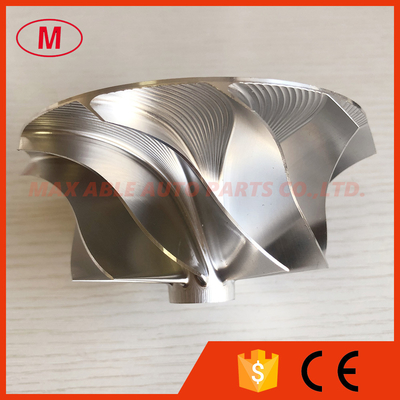

2. S400 171691 74.53/101.44mm 11+0 blades Turbo Billet/milling/aluminum 2618 compressor wheel for S374/S375 : 171702(S400SX4-75), 176806(S400SX4-75), 179174(S400SX-75) racing.
3.Size:
Nose diameter:19.36mm
Inducer:74.53mm
Exducer:101.44mm
Tapered tip exducer:106.01mm
Tip height:8.03mm
Superback:8.41mm
Overall height:55.89mm
Bore:10.00mm
bore type: through
Trailing angle:45
Blade height:41.96mm
Cutback:5.0
SP height angle:0.00
Splitter height:0.00
11+0 blades
Forward rotation
Tapered tip angle:18 degree
It is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me
We can produce as your requirement.
All the compressor wheel have been balanced.
