| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
| Size: | 46.50/59.00mm | Type: | Turbochargers |
|---|

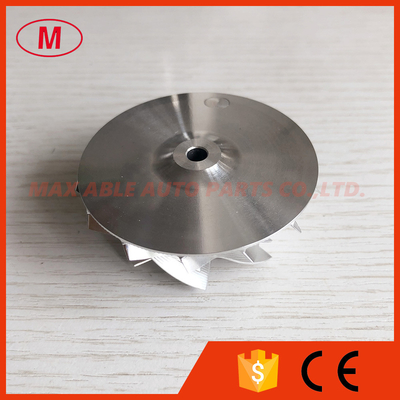

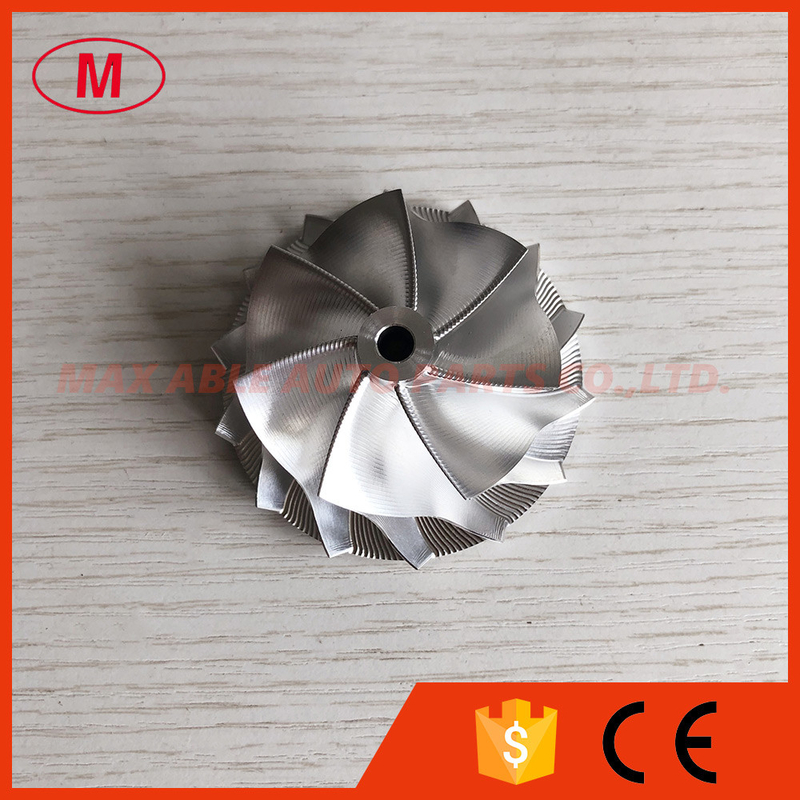

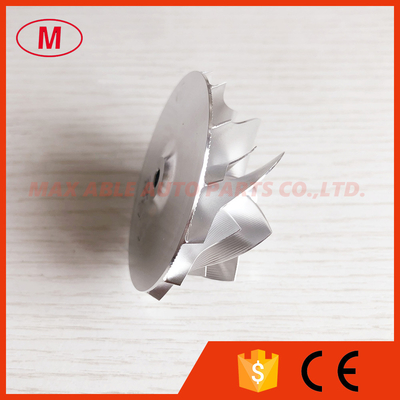

1.GT15-25 46.50/59.00mm 7+7 blades point milling performance Turbo aluminum 2618/milling/ billet compressor wheel for turbo
2.SIZE:
Nose diameter:10.55mm
inducer:46.50mm
Exducer:59.00mm
Tapered tip exducer:62.46mm
Tip height:4.55mm
Superback:1.70mm
Overall height:27.65mm
bore size :5.08mm
bore type:through
Trailing angle:60 degree
Cutback:2.0mm
SP Height angle:-6.80 degree
Blades height:23.97mm
Splitter height:15.45mm
7+7blades
forward rotation
Tapered tip angle:26 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.Please send email to me or talk to me on online ,if you want to know more details.
All the billet compressor wheel have been balanced.
