KP35 6+6blades 25.85/39.01mm turbo Billet/milling/aluminum 2618 compressor wheel

Model Number:	kp35

Contact Now

Detailed Product Description

1. MODEL:KP35 forward

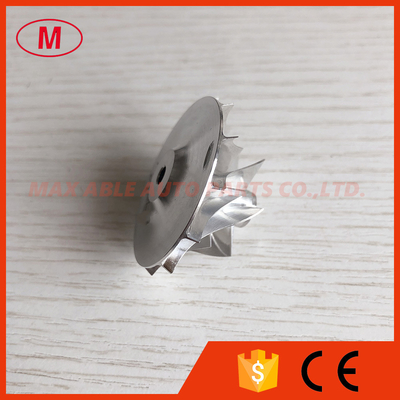

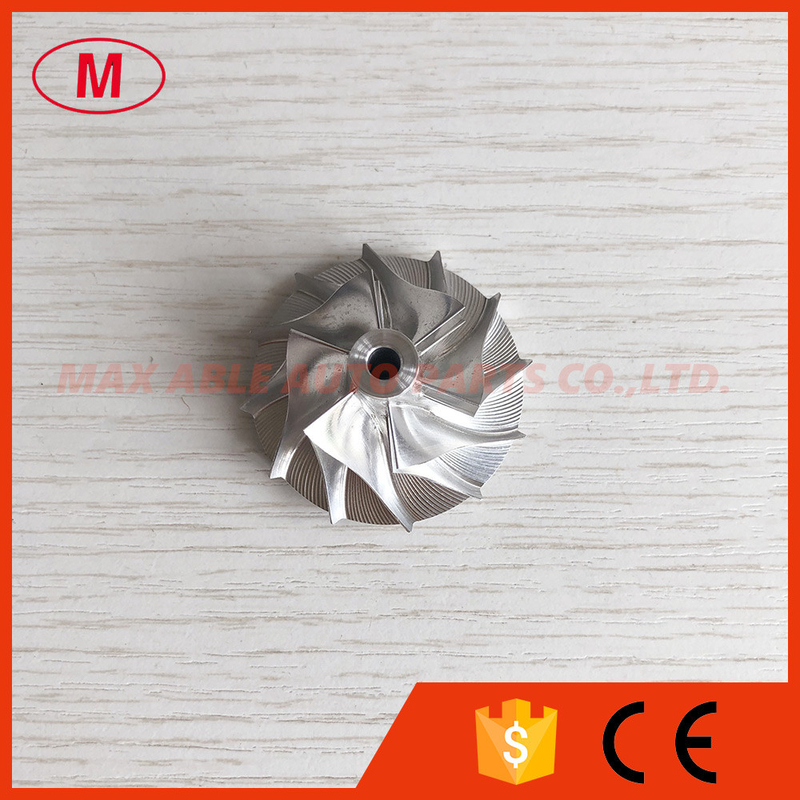

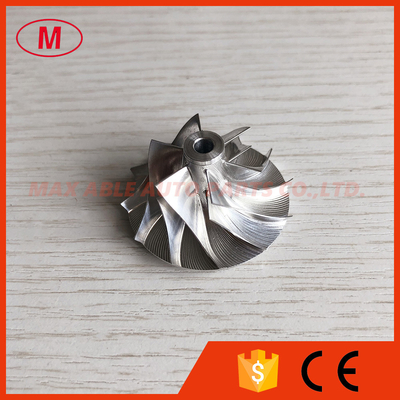

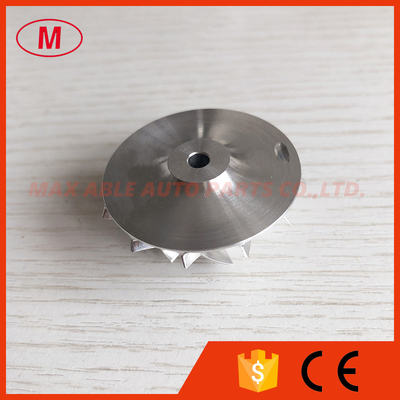

2. KP35 6+6blades 25.85/39.01mm turbo Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:9.10mm

Inducer:25.85mm

exducer:39.01mm

Tapered tio exducer:41.78mm

Tip height:3.40mm

Superback:2.72mm

bore size :4.10mm

Overall height:22.11mm

Cutback:0.0

Trailing Angle:60

Blade height:16.28mm

6+6 blades forward rotation

It is for OE compressor housing

Tapered tip Angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
