| Model Number: | GTA4594 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

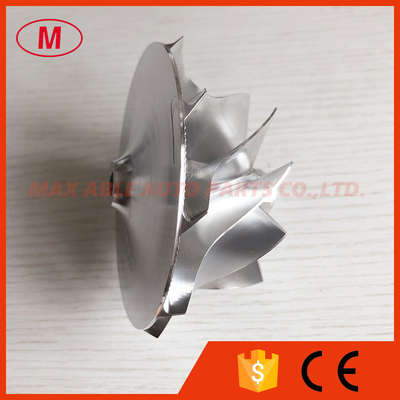

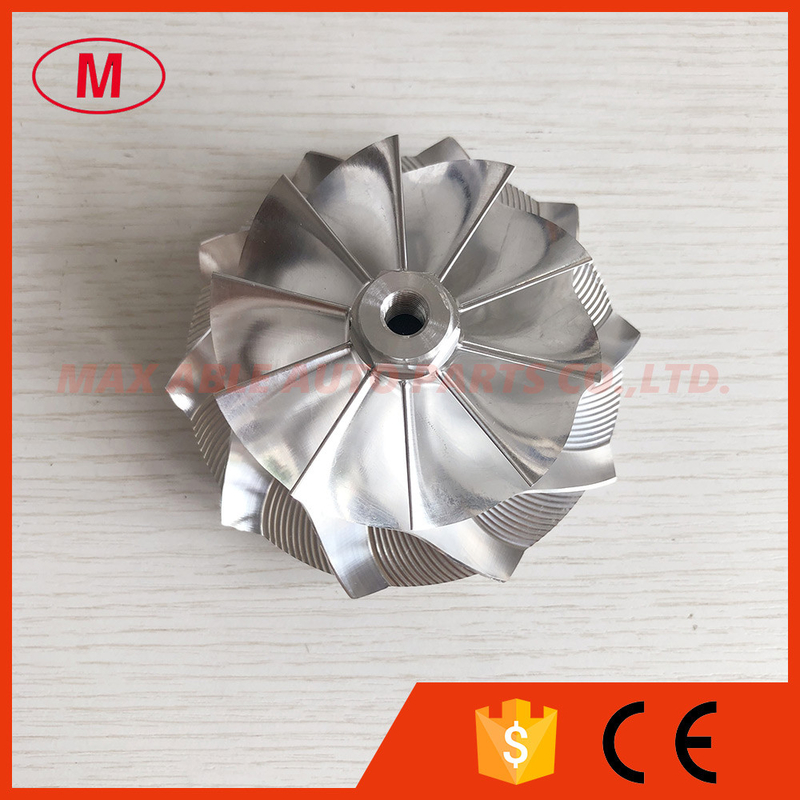

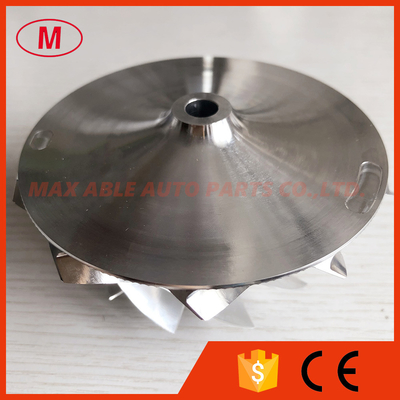

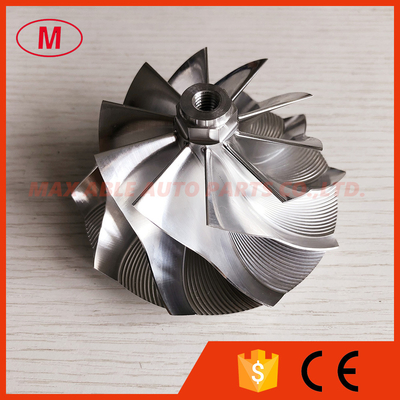

1.GTA4594 434335-0017 70.30/94.00mm 10+0 blades Performance Turbo milling/aluminum 2618/ Billet Compressor wheel for Cat C-12 EURO 2 12.0L 702335-0001
2. Size:
Nose diameter:19.33mm
Inducer:70.30mm
Exduder:94.00mm
Tapered tip exducer:100.50mm
Tip height:6.63mm
Superback:9.51mm
Overall height:58.80mm
Bore size:8.25mm
Trailing angle:40 degree
Bore type:Threaded-M8x1.25LHT
Cutback:0.0
Sp height angle:0.00
Blade height:39.04mm
Splitter height:0.00
10+0 blades
forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
3.Good quality and competitive price.
4.if you want to know more details ,please send email to me !
All the compressor wheels have been balanced.
We can produce as your requirement.
