| Model Number: | RHF5H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

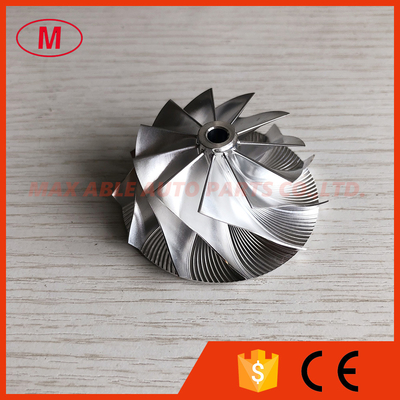

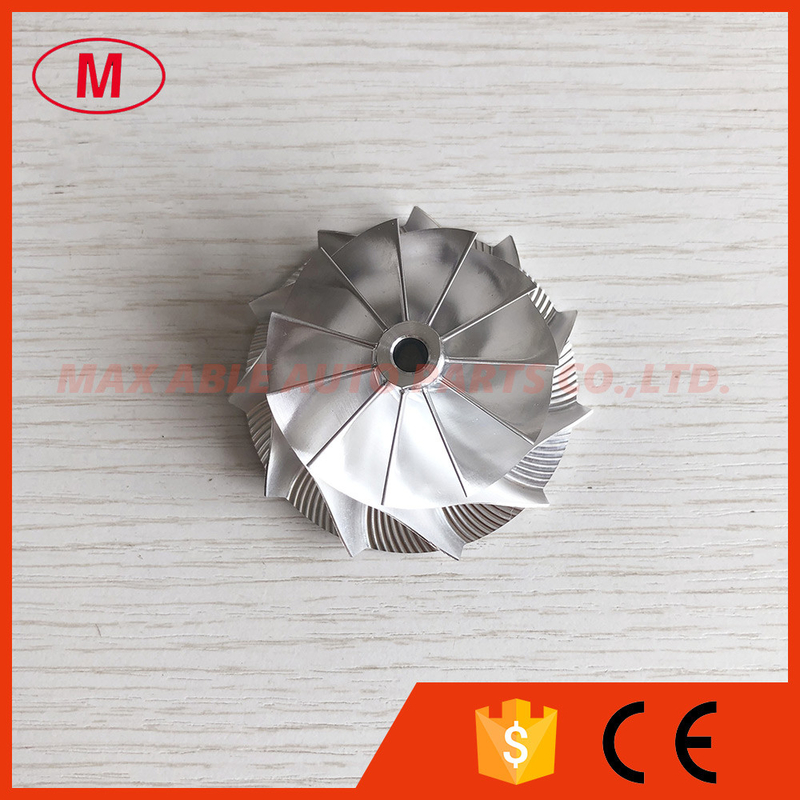

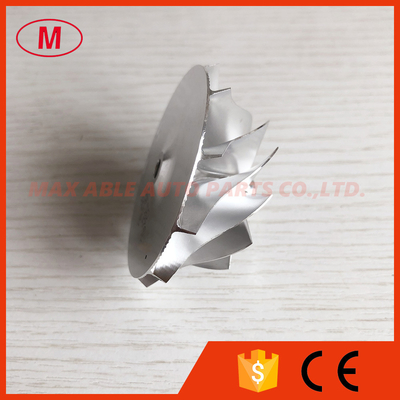

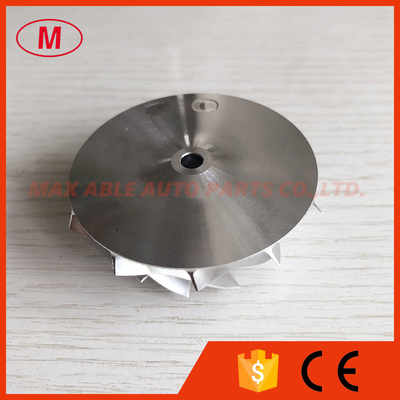

1.Model:RHF5H FORWARD
3.Size:
Nose diamter:10.00mm
inducer:43.26mm
Exduder:56.00mm
Tapered tip exducer:60.17mm
Tip height:4.61mm
Superback:1.50mm
Overall height:26.20mm
bore size :5.10mm
bore type:through
Trailing Angle:60
Cutback:4.0
SP height angle:0.00
Blades height:22.70mm
Splitter height:0.00
11+0 blades
Forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
