| Model Number: | K03 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

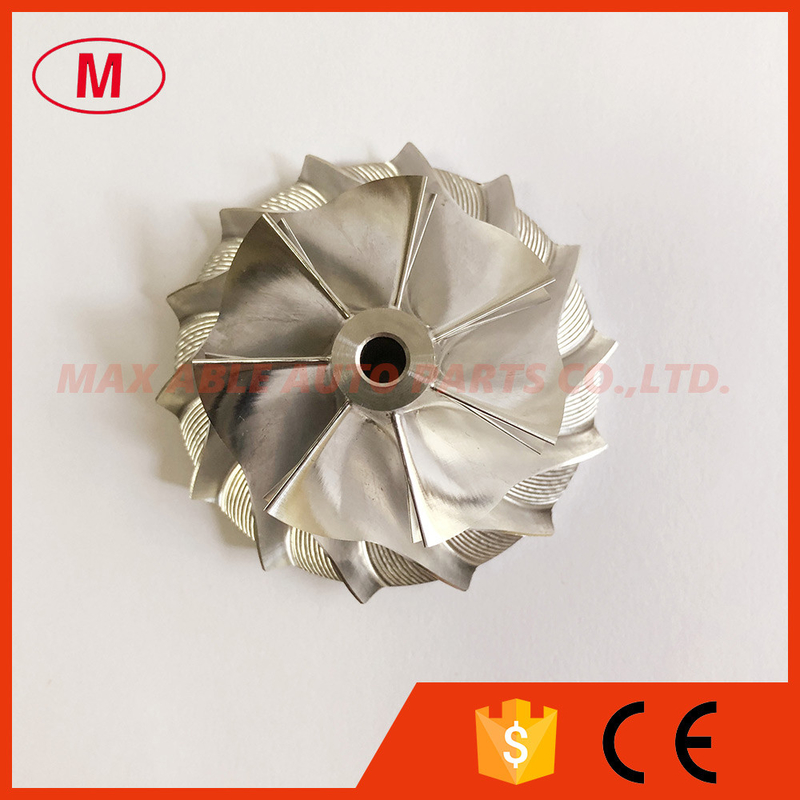

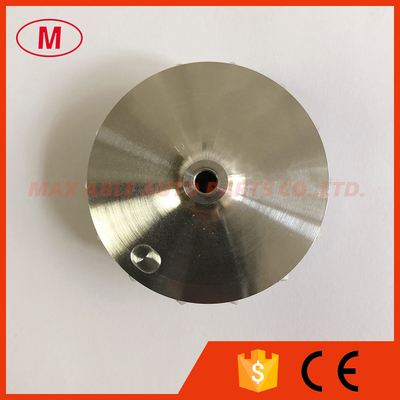

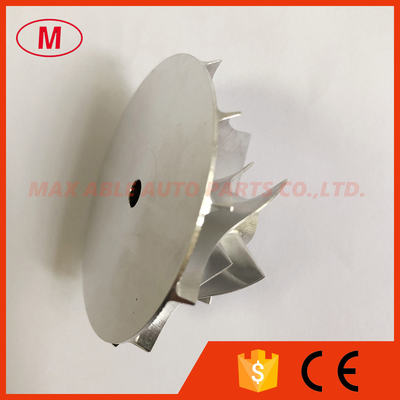

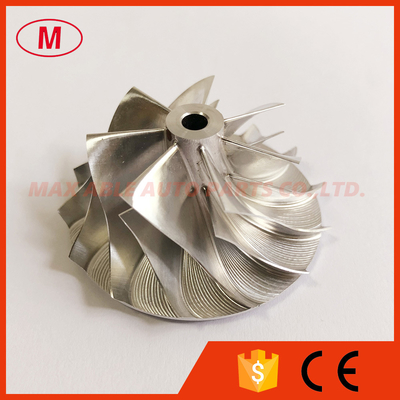

1.Model:K04 forward
3.Size:
Nose diamter:10.36mm
inducer:38.58mm
Exduder:52.00mm
Tapered tip exducer:55.39mm
Tip height:3.94mm
Superback:2.60mm
Overall height:25.70mm
bore size :4.61mm
Trailing angle:75 degree
Cutback:4.5
SP height angle:-8.40
Blade height:21.40mm
Splitter height:14.65mm
It is custom size ,please check carefully before buying.
7+7 blades
Forward rotation
Tapered tip angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
All the billet compressor wheels have been balanced.
