| Model Number: | GTX3071 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

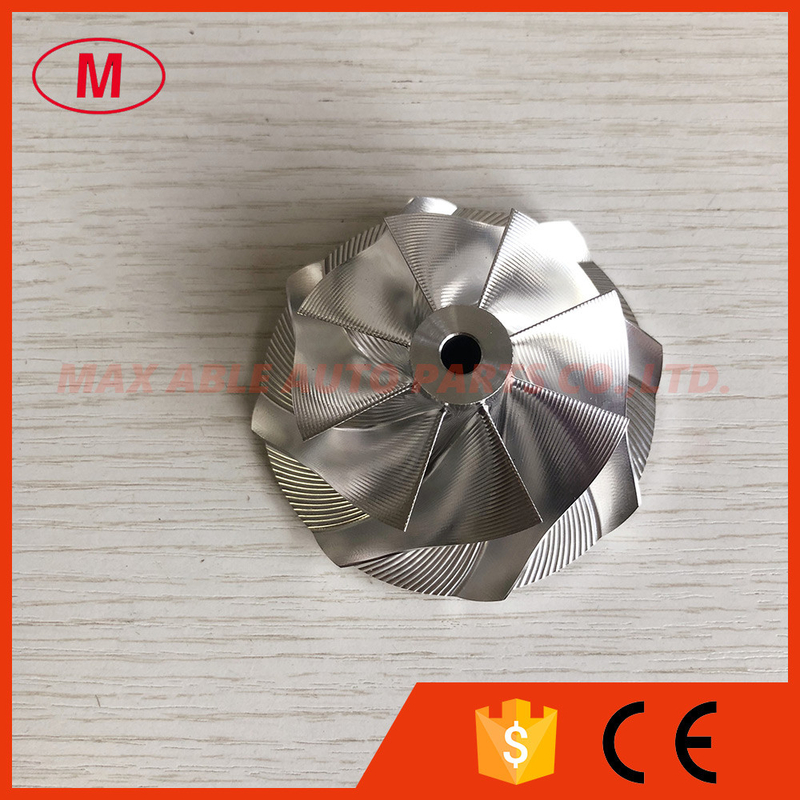

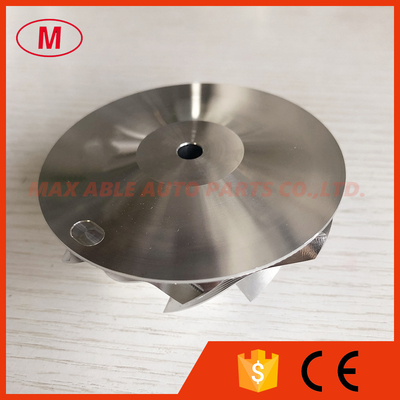

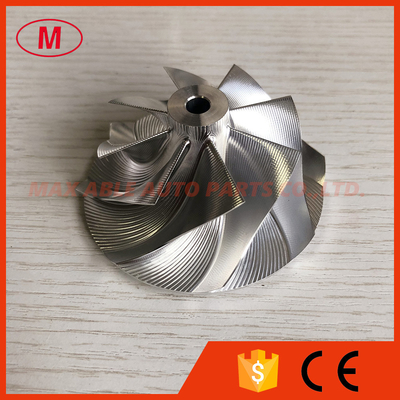

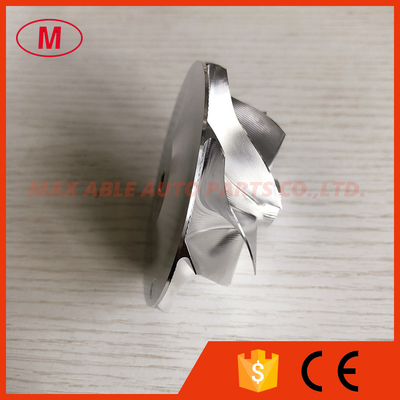

1.Model:GTX3071 GEN ll reverse
3.Size:
Nose diamter:15.30mm
inducer:54.06mm
Exduder:71.40mm
Tapered tip exducer:73.77mm
Tip height:5.78mm
Superback:2.36mm
Overall height:34.60mm
bore size :6.01mm
Traling angle:40
Cutback:6.6
SP height angle:0.00
Splitter height:0.00
Blade height:27.10mm
Splitter height:0.00
8+0blades
reverse rotation
Tapered tip angle:14 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
