| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:RHF5 Forward

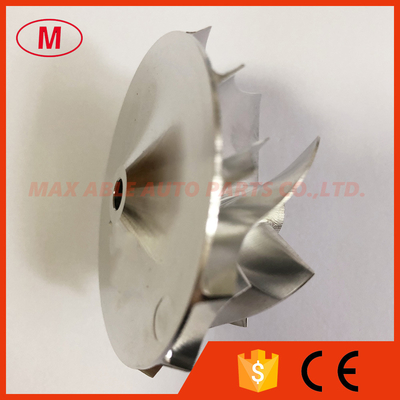

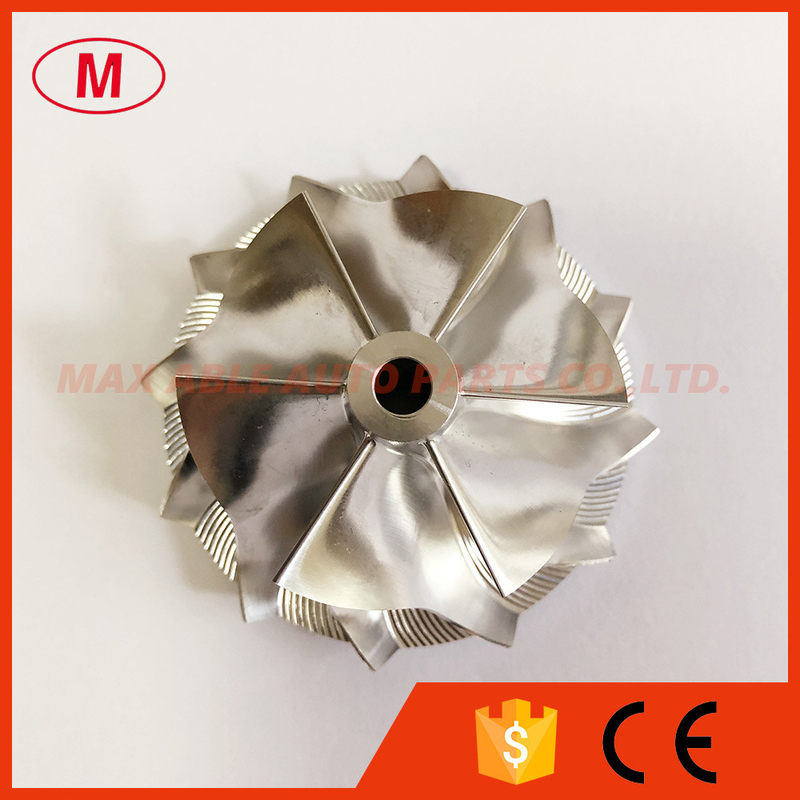

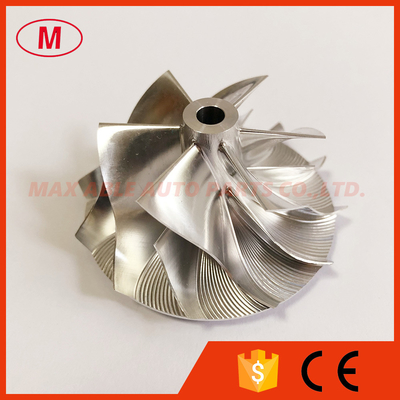

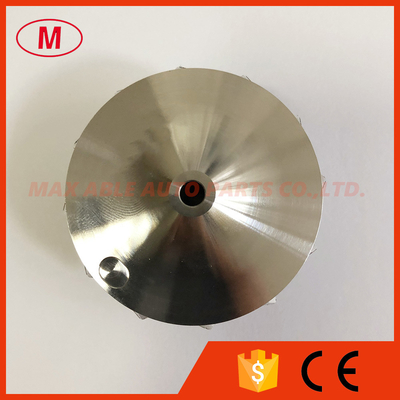

2.RHF5 41.90/54.00mm 6+6 blades high performance turbo aluminum 2618/Milling/billet compressor wheel
3.Size:
Nose diameter:10.00mm
Inducer:41.90mm
exducer:54.00mm
Tapered tip exducer:57.91mm
Tip height :4.39mm
superback:3.85mm
Overall height:29.60mm
Bore size:5.11mm
bore type:through
Trailing Angle:60
Cutback:3.0
SP height angle:0.00
Blades height:23.00mm
Splitter height:12.15mm
Tapered tip angle:30 degree
6+6 blades
Forward rotation
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheels have been balanced.
We can produce as your requirement.
