| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:TD05H reverse rotation

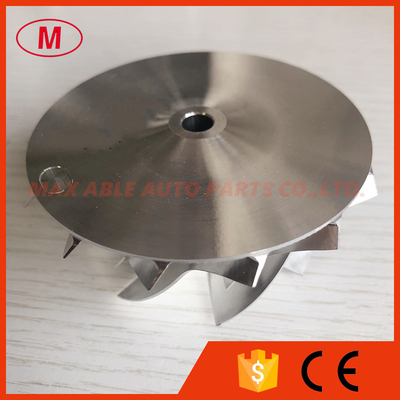

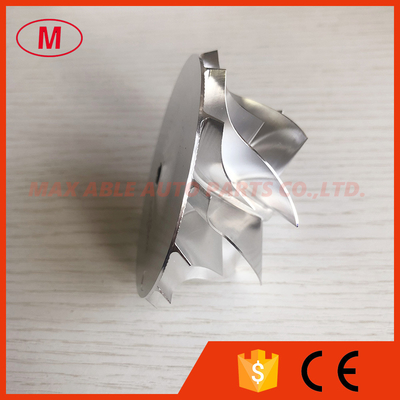

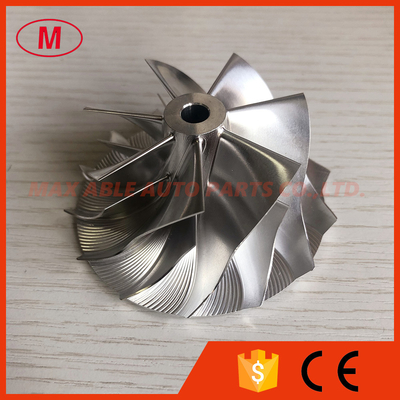

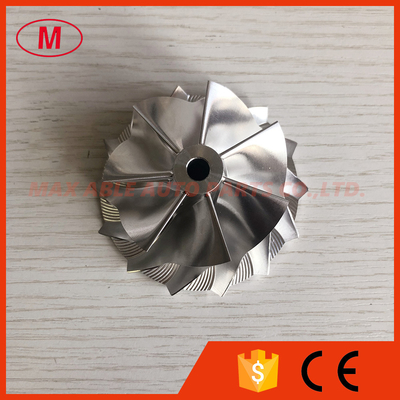

2. TD05H reverse 54.56/70.01mm 7+7 blades high performance turbo milling/aluminum 2618/billet turbo compressor wheel
3.Size:
Nose diameter:14.62mm
Inducer:54.56mm
Exducer:70.01mm
Tapered tip exducer:75.05mm
Tip height:5.37mm
Superback:1.60mm
Overall height:35.10mm
Bore size:6.50mm
bore type:through
Trailing angle:45 DEGREE
Cutback:-0.00
SP Height angle:-4.30
Blades height:31.87mm
Splitter height:19.70mm
7+7 blades
reverse rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price.
5.if you want to know more details ,please send email to me !
We have more model you want.
