1.Model:GTB2260V Forward

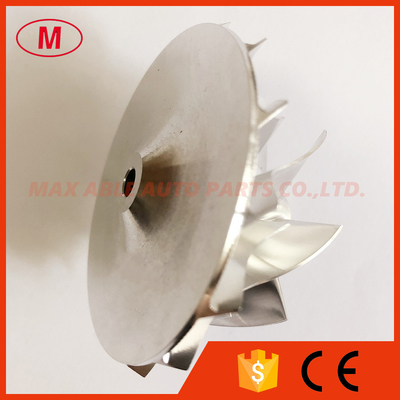

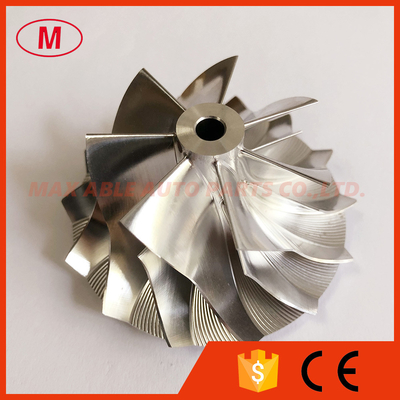

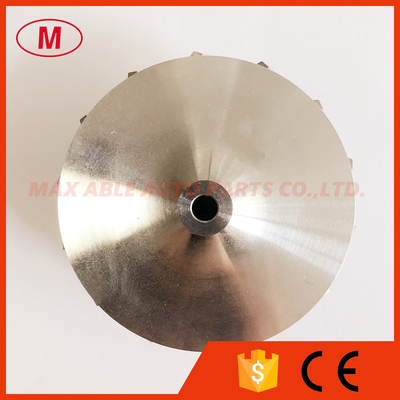

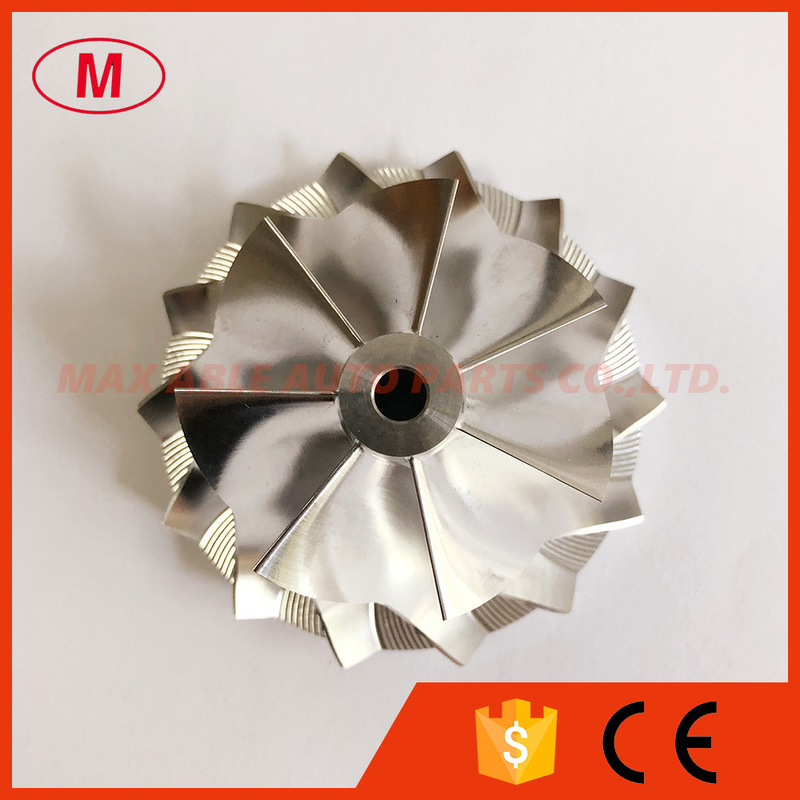

2.GTB2260V 784369-0002/787571-0002 44.52/60.01mm 7+7 blades high performance turbocharger billet/milling/aluminum 2618 compressor wheel for AUDI Q7/VW Touareg/Mercedes ML350/GL350/S350 758351-0003, 758351-0005, 758351-0009, 758351-0013, 758351-0015, 758351-0017, 758351-0019, 758351-0020, 758351-0022, 758351-0024,
3.Size:
Nose diameter:12.00mm
Inducer:44.52mm
Exducer:60.01mm
Tapered tip exducer:64.16mm
Tip height:4.60mm
Superback:3.79mm
Overall height:32.40mm
Bore size:5.08mm
bore type:through
Trailing angle:45 degree
Cutback:3.0mm
SP Height angle:0.00
Blade height:25.63mm
Splitter height:15.05mm
7+7 blades
Forward rotation
Tapered tip angle:30 degree
It is for OE Compressor Housing
4.High quality ,competitive price and good service.
5.We can also produce as your requirement.
All the compressor wheels have been balanced.
6.If you want more details, please send email to me or talk to me online.
We will try our best to meet your needs.
