1.Model:TF035 13T Forward

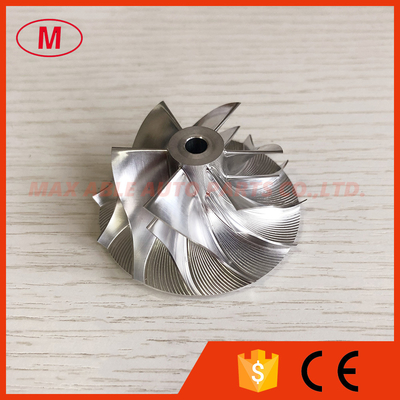

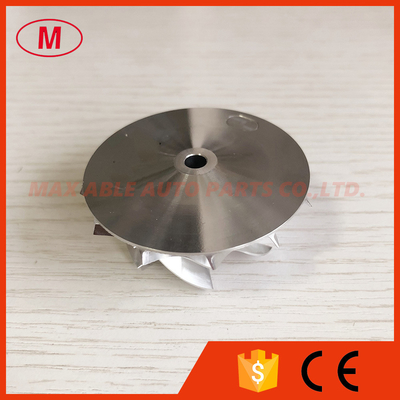

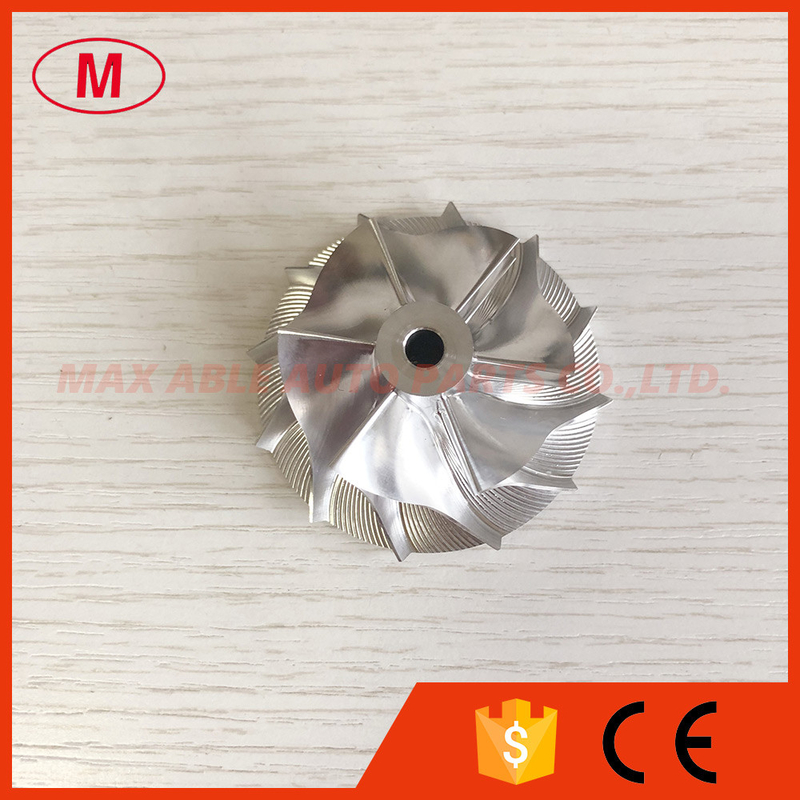

2.TF035 13T 49377-00018 38.35/51.00mm 6+6 blades turbocharger billet/milling/aluminum 2618 compressor wheel for S40 2.0 T4, 49135-05610, 49135-05611, 49135-05620, 49135-05621, 49135-05630, 49135-05631, 49135-05640, 49135-05641, 49135-05650, 49135-05651, 49135-05660, 49135-05661, 49135-05670, 49135-05671, 49135-05801, 49135-05801, 49135-05810, 49135-05830, 49135-05840, 49135-05841, 49135-05845, 49135-05850, 49135-05851, 49135-05860, 49135-05861, 49135-05865, 49135-05866, 49135-05870, 49135-05871, 49135-05875, 49135-05880, 49135-05881, 49135-05885, 49135-05886, 49135-05890, 49135-05891, 49135-05895, 49135-05896, 49335-00100, 49335-00200, 49335-00201, 49335-00230, 49335-00240, 49335-00241, 49335-00420, 49335-00430, 49335-00431, 49335-00440, 49335-00441, 49377-07401, 49377-07402, 49377-07403
3.Size:
Nose diameter:12.38mm
Inducer:38.35mm
Exducer:51.00mm
Tapered tip exducer:54.14mm
Tip height:3.72mm
Superback:1.90mm
Overall height:24.20mm
Bore size:5.00mm
bore type:through
Trailing angle:60
Bore Type:Through
Cutback:0.0
SP Height angle:0.00
Blade height:20.72mm
Splitter height:13.25mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.High quality ,competitive price and good service.
5.We can also produce as your requirement.
All the compressor wheels have been balanced.
6.If you want more details, please send email to me or talk to me online.
We will try our best to meet your needs.
