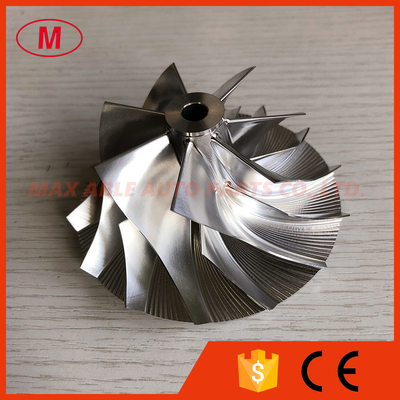

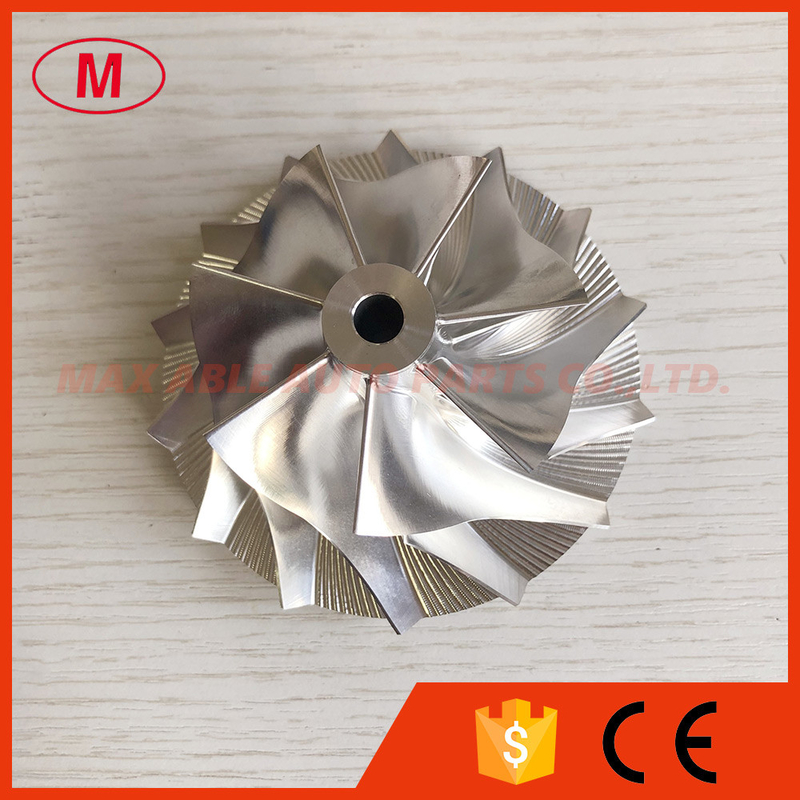

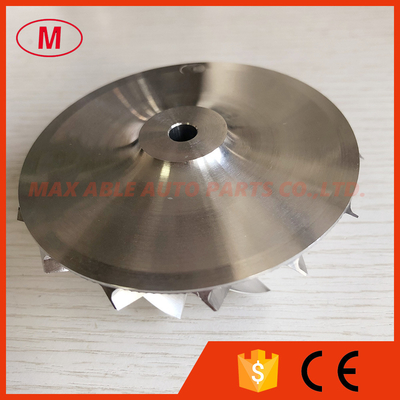

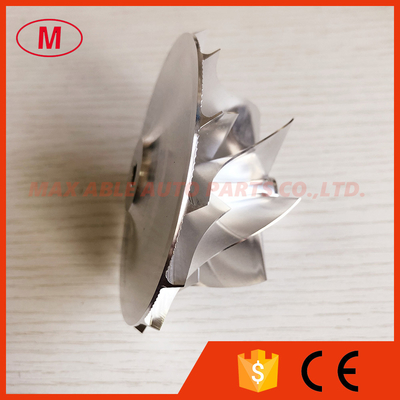

S200 1283-123-2001 7+7 blades 58.85/84.60mm high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel

Contact Now

Detailed Product Description

1.Model: S200 forward

2.S200 1283-123-2001 7+7 blades 58.85/84.60mm high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:16.00mm

Inducer:58.85mm

exducer:84.60mm

Tapered tip exudcer:89.23mm

Tip height:5.00mm

Superback:5.20mm

bore size :7.00mm

Overall height:43.35mm

Cutback:3.0

Trailing Angle:45

Blade height:35.00mm

Sp height angle:3.00

Splitter height:15.90mm

7+7 blades forward

It is for OE compressor housing

Tapered tip Angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.
