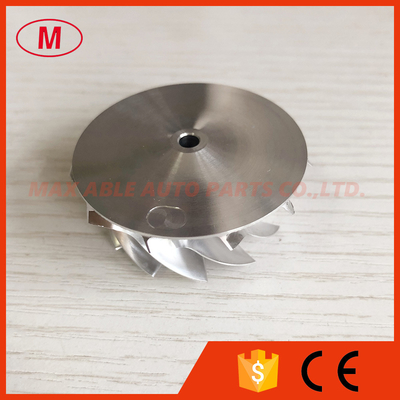

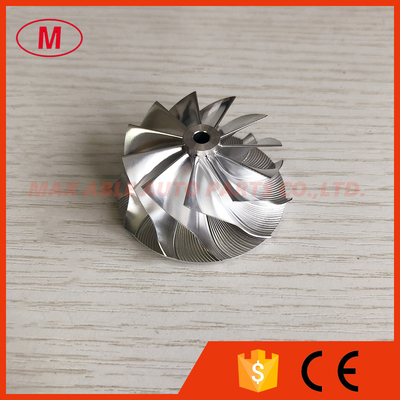

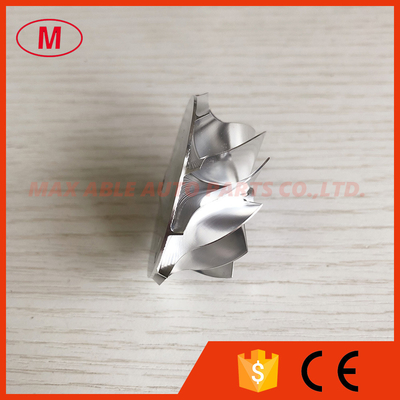

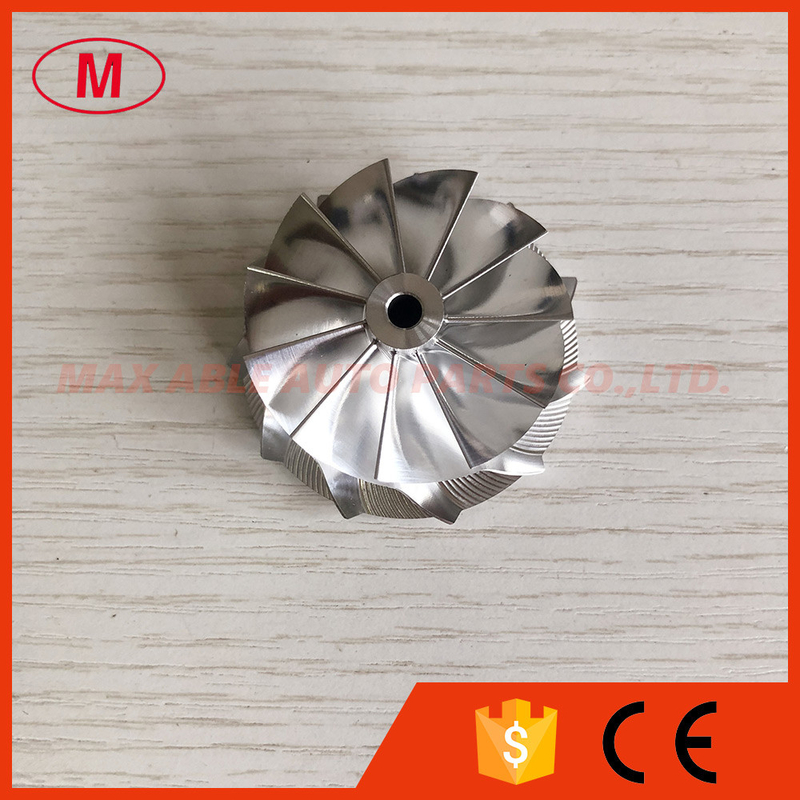

TD03 39.10/46.00mm 11+0 blades high performance turbocharger milling/aluminum 2618/billet compressor wheel

Contact Now

Detailed Product Description

1.Model:TD03 Forward

2.TD03 39.10/46.00mm 11+0 blades high performance turbocharger billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:9.10mm

Inducer:39.10mm

Exducer:46.00mm

Tapered tip exducer:48.92mm

Tip height:3.33mm

Superback:1.68mm

Overall height:22.50mm

Bore size:4.01mm

Trailing angle:60

Cutback:0.0

SP Height angle:0.00

Blade height:18.90mm

Splitter height:0.00mm

11+0 blades

Forward rotation

Tapered tip angle:30 degree

Fits OE Compressor Housing

4.High quality ,competitive price and good service.

5.We can also produce as your requirement.

All the compressor wheel have been balanced.

6.If you want more details, please send email to me or talk to me online.

We will try our best to meet your needs.
