| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:RHF5 forward

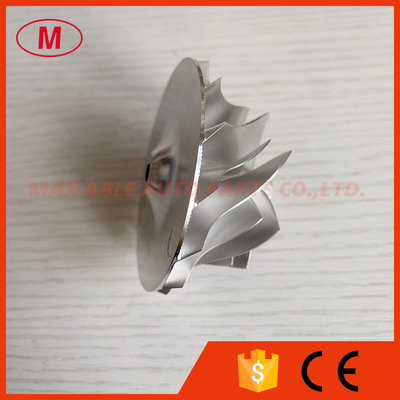

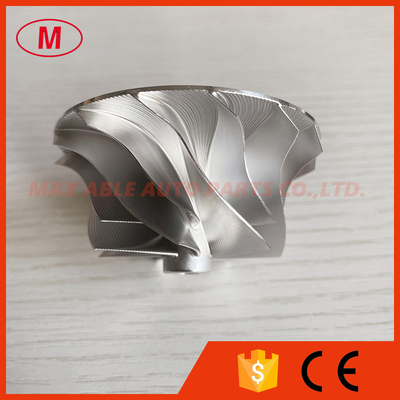

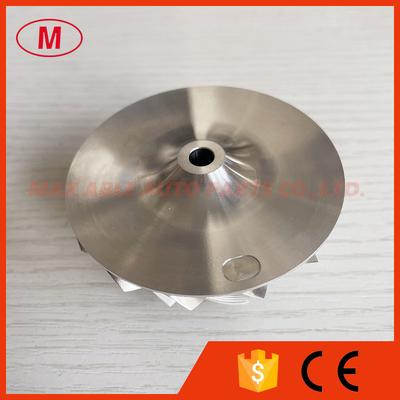

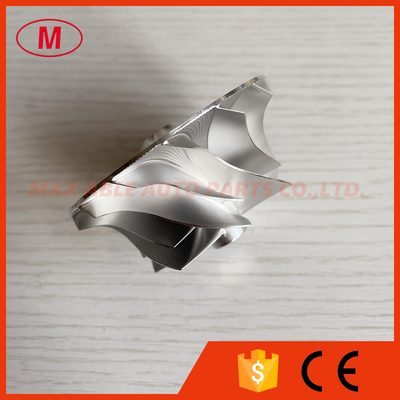

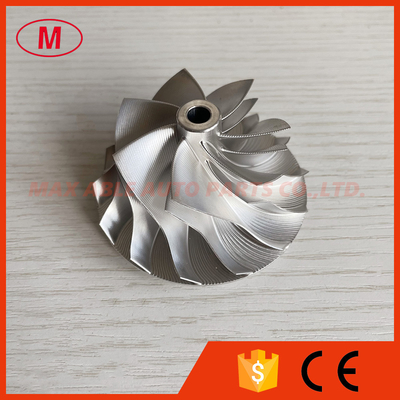

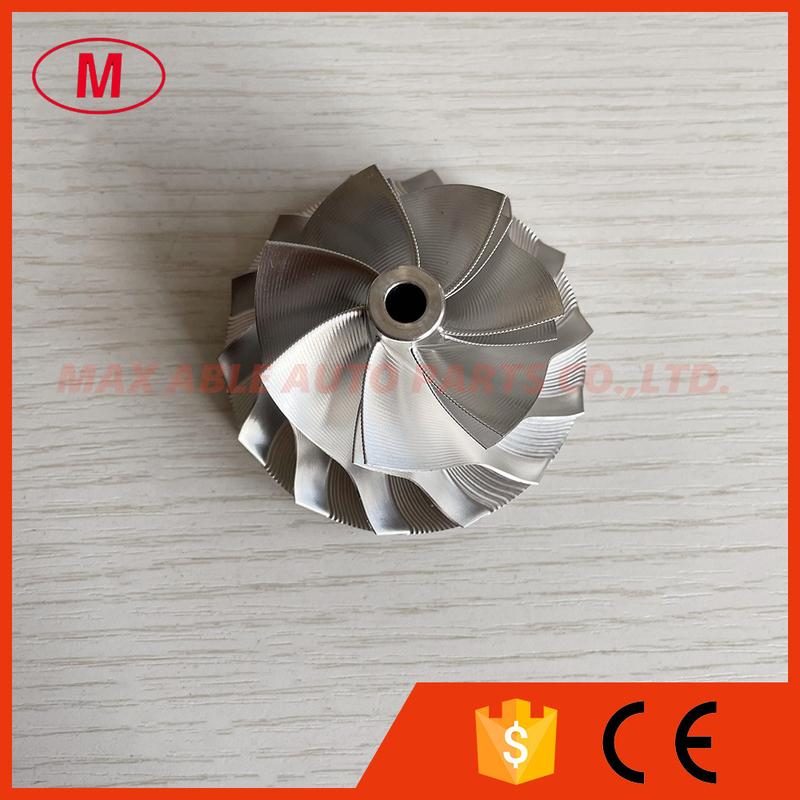

2.RHF5 48.75/67.50mm 7+7 blades point milling turbo turbocharger aluminum 2618/Billet/milling compressor wheel
3.Size:
Nose diameter:12.00mm
Inducer:48.75mm
exducer:67.50mm
Tapered tip exducer:69.01mm
Tip height :5.70mm
superback:4.50mm
Overall height:38.00mm
Bore size:6.10mm
bore type:throug
Trailing Angle:41 degree
Cutback:2.0
SP height Angle:-2.00
Blade height:29.50mm
Splitter Height:23.00mm
7+7 blades
Tapered tip Angle: 9.1 degree
It is custom size,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced.
We can produce as your requirement.
