| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | CT26 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:CT26 Forward

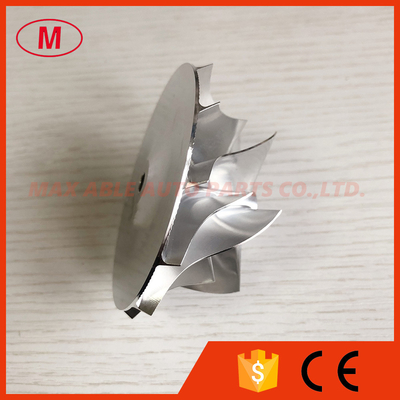

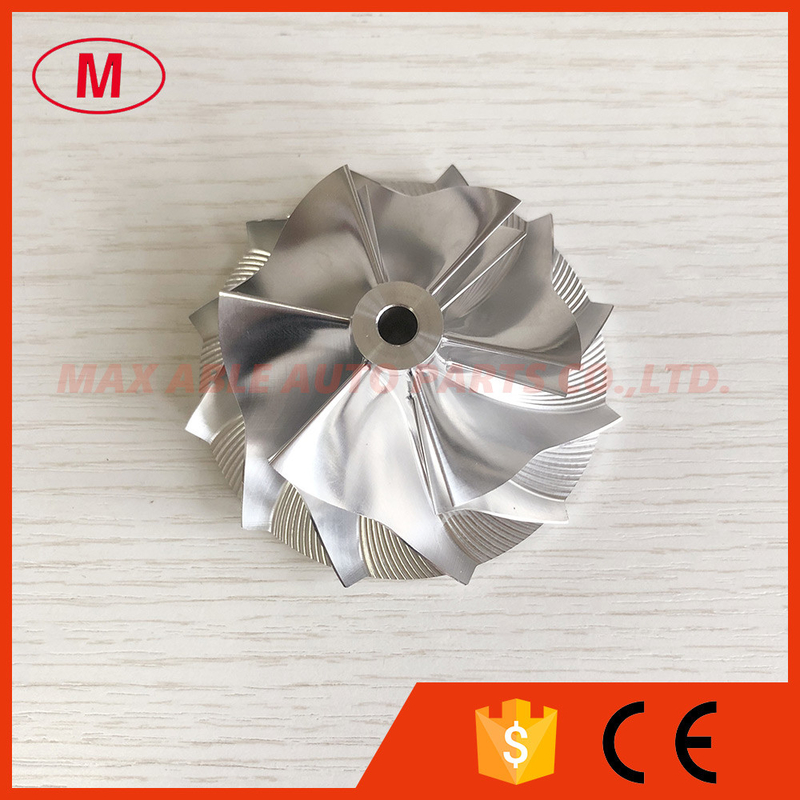

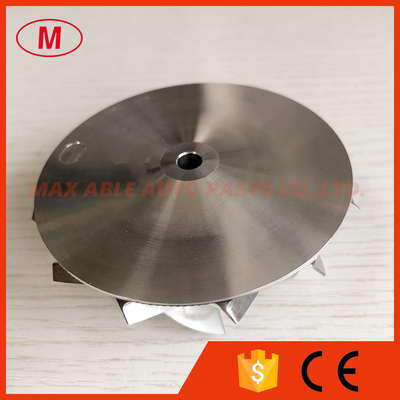

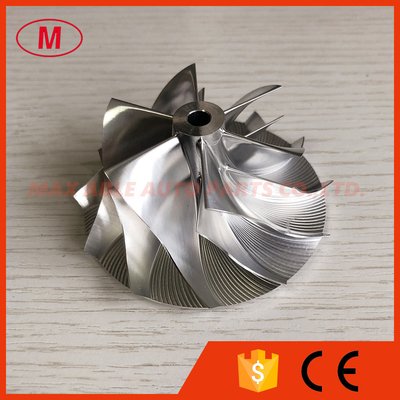

2. CT26 53.11/70.98mm 6+6 blades high performance high bladeTurbo aluminum 2618/milling/Billet compressor wheel
3.Size:
Nose diameter:13.14mm
inducer:53.11mm
exducer:70.98mm
Tapered tip exducer:75.78mm
Tip height:5.16mm
bore size :5.70mm
bore type:through
Overall height:34.00mm
Superback:2.00mm
Trailing angle:60 degree
Cutback:2.0
SP Height angle:-8.40
Blades height:30.12mm
Splitter height:20.80mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
All the billet compressor wheels have been balanced.
