| Brand Name: | no |
| Certification: | ISO |
| Model Number: | TD03 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | Neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:TD03 forward

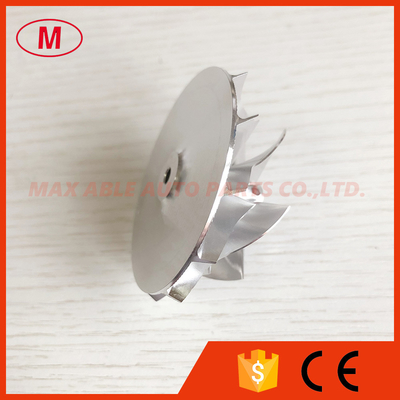

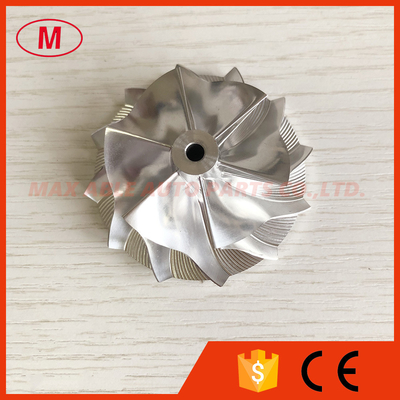

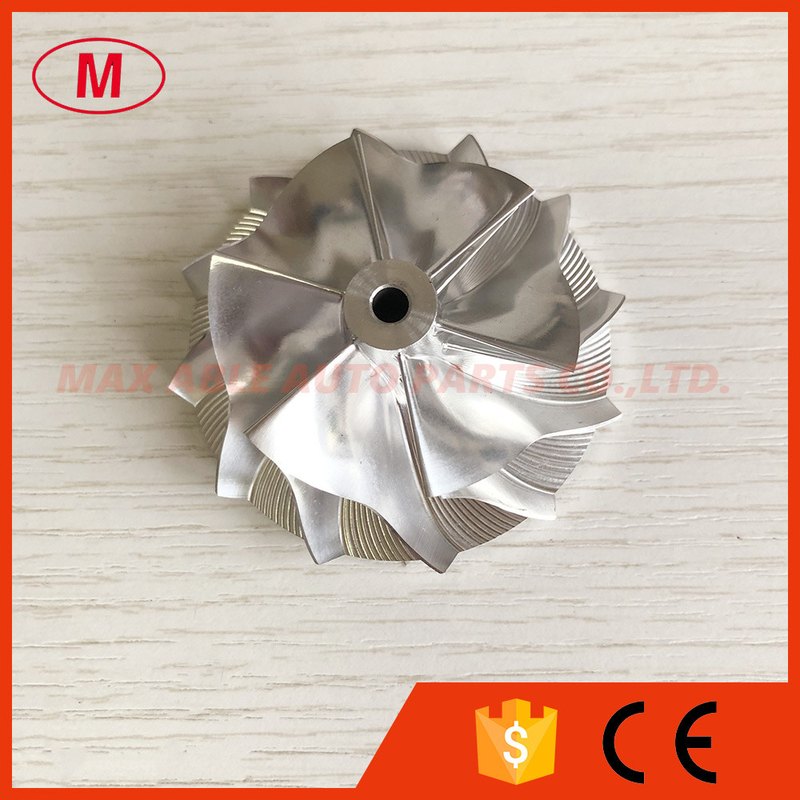

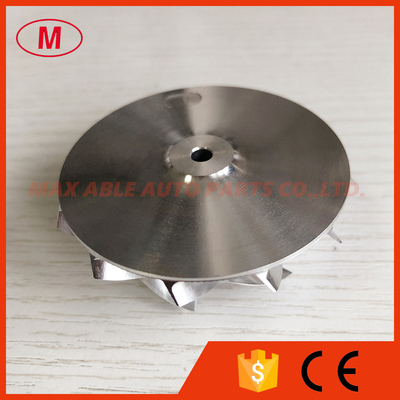

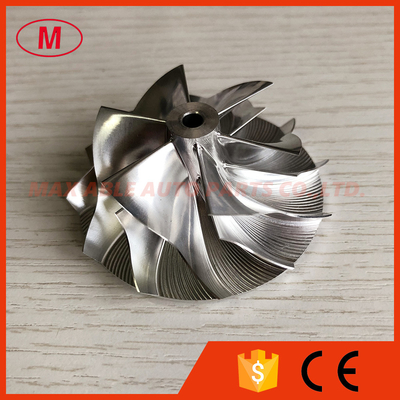

2.TD03 42.20/55.00mm 6+6 blades high performance Turbo milling/aluminum 2618/billet compressor wheel
3. Size :
Nose diameter:10.24mm
Inducer:42.20mm
Exducer:55.00mm
Tapered tip exducer:59.01mm
Tip height:4.60mm
Superback:1.68mm
Overall height:24.00mm
bore size :4.00mm
Trailing angle:60
Cutback:2.0
SP Height angle:0.00
blades height:20.30mm
Splitter height:11.85mm
6+6 Blades
forward rotation
Tapered tip angle:29.1degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced
