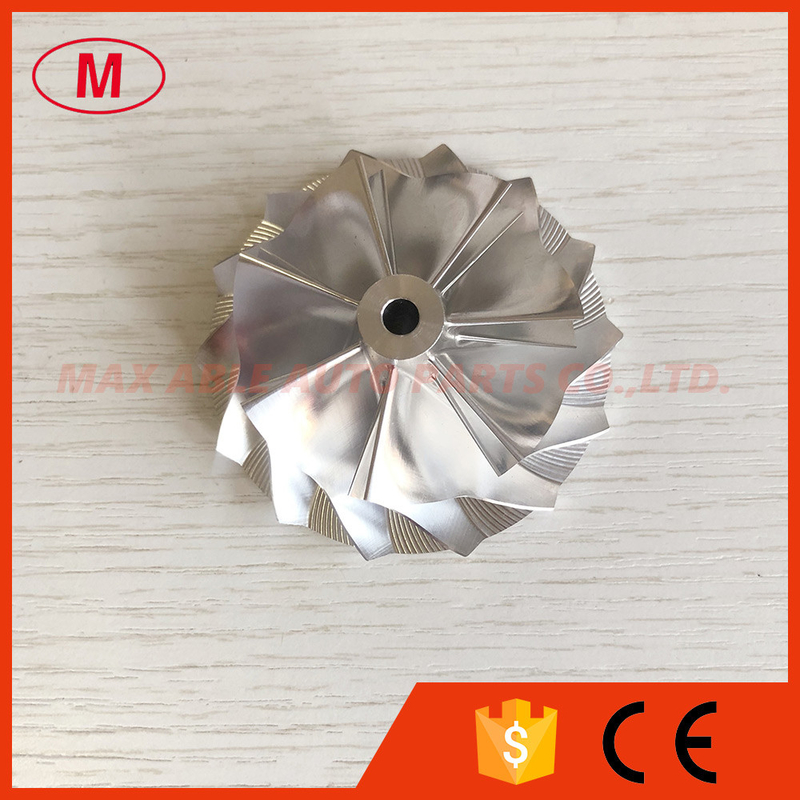

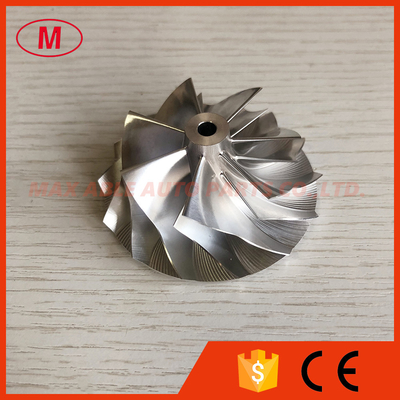

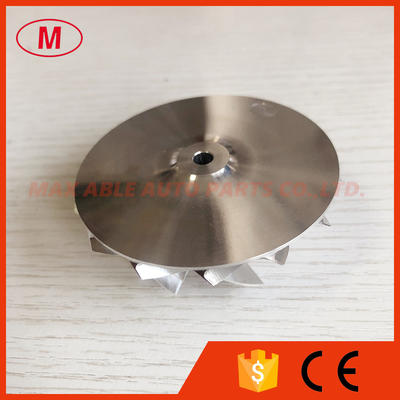

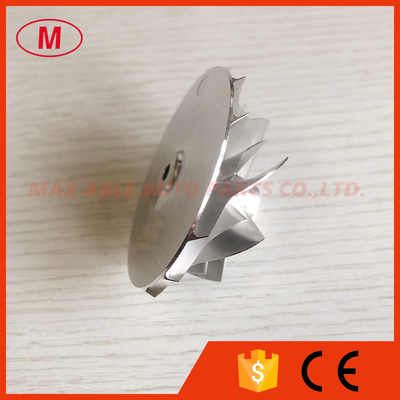

K04 5306-123-2014 Upgrade 46.39/60.00mm 7+7 blades high performance turbocharger billet/milling compressor wheel

K04 5306-123-2014 Upgrade 46.39/60.00mm 7+7 blades high performance turbocharger billet/milling compressor wheel

    • K04 5306-123-2014 Upgrade 46.39/60.00mm 7+7 blades high performance turbocharger billet/milling compressor wheel
    • K04 5306-123-2014 Upgrade 46.39/60.00mm 7+7 blades high performance turbocharger billet/milling compressor wheel
    • K04 5306-123-2014 Upgrade 46.39/60.00mm 7+7 blades high performance turbocharger billet/milling compressor wheel
    • K04 5306-123-2014 Upgrade 46.39/60.00mm 7+7 blades high performance turbocharger billet/milling compressor wheel
    • K04 5306-123-2014 Upgrade 46.39/60.00mm 7+7 blades high performance turbocharger billet/milling compressor wheel

    Product Details:

    Brand Name: no
    Certification: ISO
    Model Number: K04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: Neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description


    1.Model:K04 Forward

    2.K04 5306-123-2014 Upgrade 46.39/60.00mm 7+7 blades high performance turbocharger billet/milling/aluminum 2618 compressor wheel for 5304-970-0064 Upgrade

    3.Size:
    Nose diameter:10.95mm
    Inducer:46.39mm
    Exducer:60.00mm
    Tapered tip exducer:62.83mm
    Tip height:3.90mm
    Superback:1.80mm
    Overall height:25.68mm
    Bore size:4.61mm
    Std size or customs:STD w larger exducer
    Trailing angle:45
    Cutback:0.0
    SP Height angle:-2.50
    Blade height:20.36mm
    Splitter height:14.75mm
    7+7 blades
    Forward rotation
    Tapered tip angle:26 degree
    It is OE w modifed backplate

    4.High quality ,competitive price and good service.

    5.We can also produce as your requirement.
    All the compressor wheel have been balanced.

    6.If you want more details, please send email to me or talk to me online.
    We will try our best to meet your needs.
    K04 5306-123-2014 Upgrade 46.39/60.00mm 7+7 blades high performance turbocharger billet/milling compressor wheelK04 5306-123-2014 Upgrade 46.39/60.00mm 7+7 blades high performance turbocharger billet/milling compressor wheelK04 5306-123-2014 Upgrade 46.39/60.00mm 7+7 blades high performance turbocharger billet/milling compressor wheel

    K04 5306-123-2014 Upgrade 46.39/60.00mm 7+7 blades high performance turbocharger billet/milling compressor wheel
