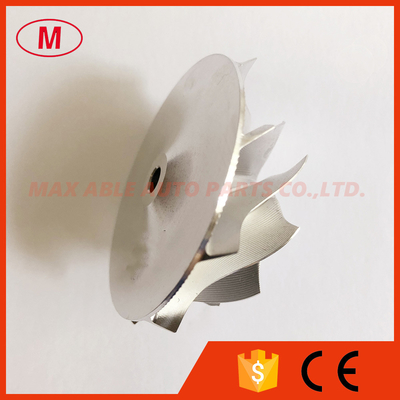

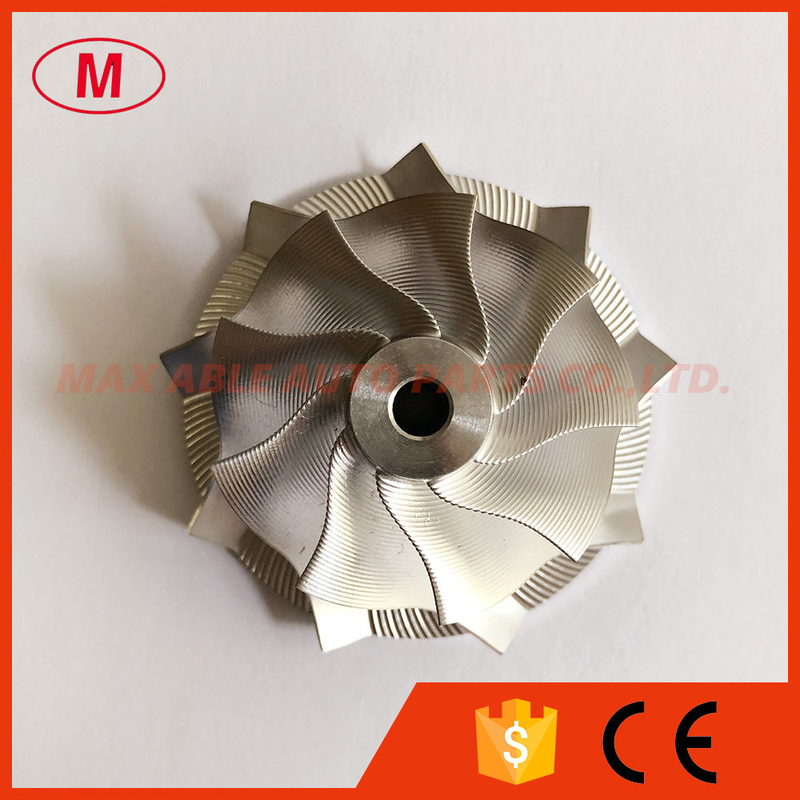

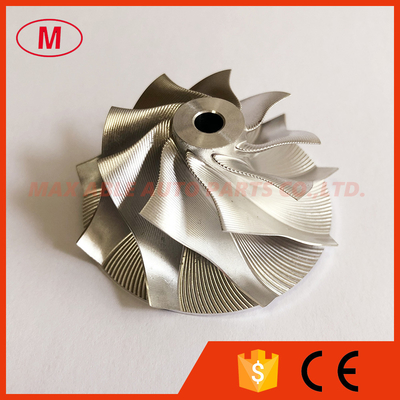

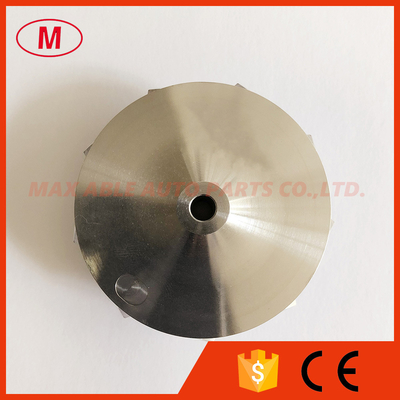

TD04HL 39.60/51.00mm 9+0 blades point milling snake curve turbo milling/aluminum 2618/billet compressor wheel

TD04HL 39.60/51.00mm 9+0 blades point milling snake curve turbo milling/aluminum 2618/billet compressor wheel

    • TD04HL 39.60/51.00mm 9+0 blades point milling snake curve turbo milling/aluminum 2618/billet compressor wheel
    • TD04HL 39.60/51.00mm 9+0 blades point milling snake curve turbo milling/aluminum 2618/billet compressor wheel
    • TD04HL 39.60/51.00mm 9+0 blades point milling snake curve turbo milling/aluminum 2618/billet compressor wheel
    • TD04HL 39.60/51.00mm 9+0 blades point milling snake curve turbo milling/aluminum 2618/billet compressor wheel
    • TD04HL 39.60/51.00mm 9+0 blades point milling snake curve turbo milling/aluminum 2618/billet compressor wheel

    Product Details:

    Brand Name: no
    Certification: ISO
    Model Number: TD04HL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: Neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1.Model:TD04HL forward

    2.TD04HL forward 39.60/51.00mm 9+0 blades point milling snake curve turbo milling/aluminum 2618/billet compressor wheel

    3.Size:
    Nose diameter:12.37mm
    Inducer:39.60mm
    Exducer:51.00mm
    Tapered tip exducer:55.37mm
    Tip height:4.79mm
    Superback:1.90mm
    Overall height:24.22mm
    Bore size:5.00mm
    Trailing angle:45
    Cutback:0.0
    SP Height angle:0.00
    Blade height:18.30mm
    Splitter height:0.00mm
    9+0 blades
    Forward rotation
    Tapered tip angle:30 degree
    It is custom size,please check carefully before buying.
    4.High quality ,competitive price and good service.

    5.We can also produce as your requirement.
    All the compressor wheel have been balanced.

    6.If you want more details, please send email to me or talk to me online.
    We will try our best to meet your needs.
    TD04HL 39.60/51.00mm 9+0 blades point milling snake curve turbo milling/aluminum 2618/billet compressor wheel
    TD04HL 39.60/51.00mm 9+0 blades point milling snake curve turbo milling/aluminum 2618/billet compressor wheelTD04HL 39.60/51.00mm 9+0 blades point milling snake curve turbo milling/aluminum 2618/billet compressor wheelTD04HL 39.60/51.00mm 9+0 blades point milling snake curve turbo milling/aluminum 2618/billet compressor wheelTD04HL 39.60/51.00mm 9+0 blades point milling snake curve turbo milling/aluminum 2618/billet compressor wheel
