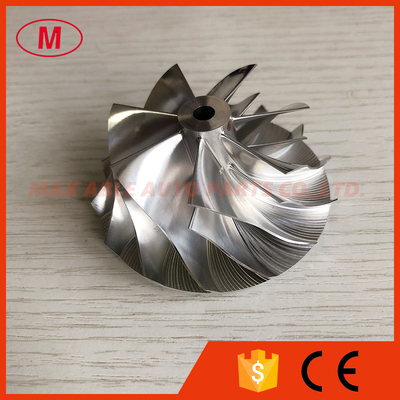

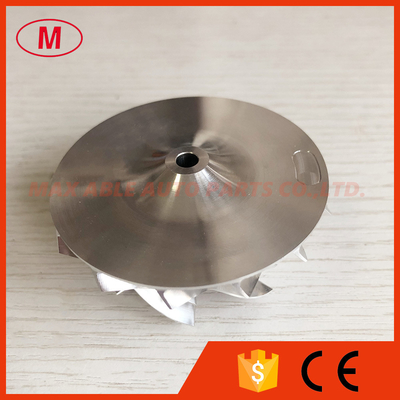

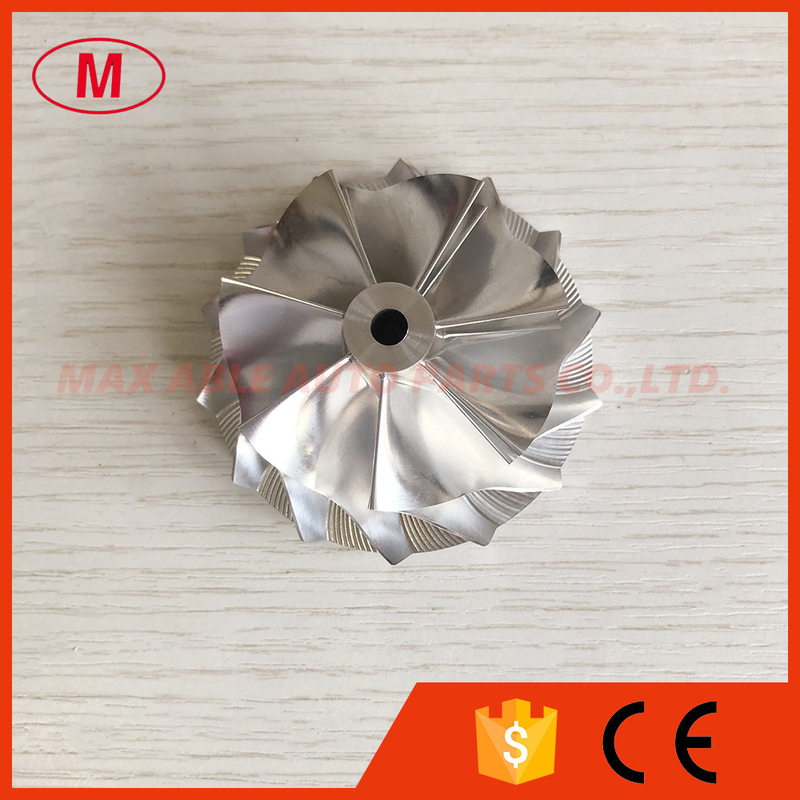

GT15-25 49.15/63.00mm 7+7 blades high performance turbo milling/aluminum 2618/billet compressor wheel

Contact Now

Detailed Product Description

1.Model:GT15-25 Forward

2.GT15-25 49.15/63.00mm 7+7 blades high performance turbo billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:12.45mm

Inducer:49.15mm

Exducer:63.00mm

Tapered tip exducer:66.00mm

Tip height:5.10mm

Superback:3.71mm

Overall height:32.30mm

Bore size:5.08mm

bore type:through

Trailing angle:60 degree

Cutback:1.0mm

SP Height angle:-4.50

Blade height:26.30mm

Splitter height:17.10mm

7+7 blades

Forward rotation

Tapered tip angle:20.1 degree

It is custom size ,please check carefully before buying.

4.High quality ,competitive price and good service.

5.We can also produce as your requirement.The minimun order 5pcs

All the compressor wheels have been balanced.

6.If you want more details, please send email to me or talk to me online.

We will try our best to meet your needs.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

GT15-25 49.15/63.00mm 7+7 blades high performance turbo milling/aluminum 2618/billet compressor wheel
