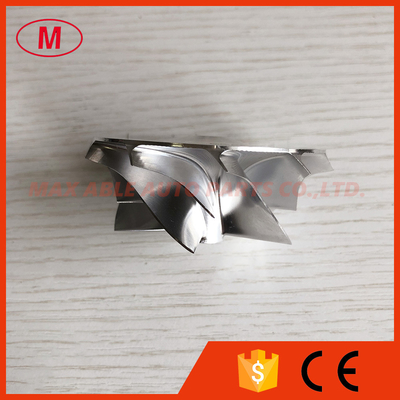

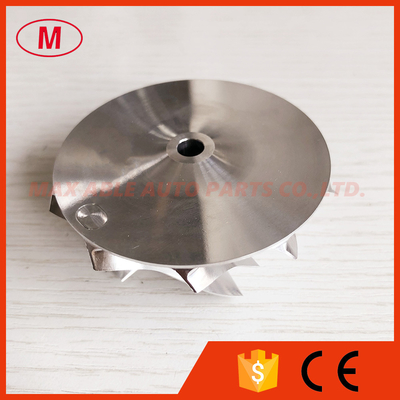

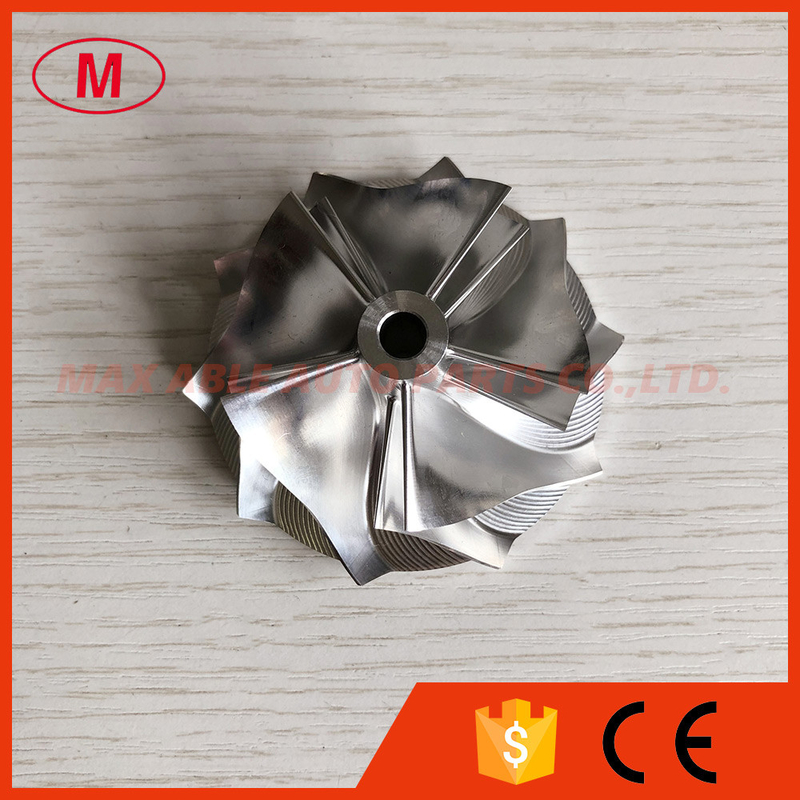

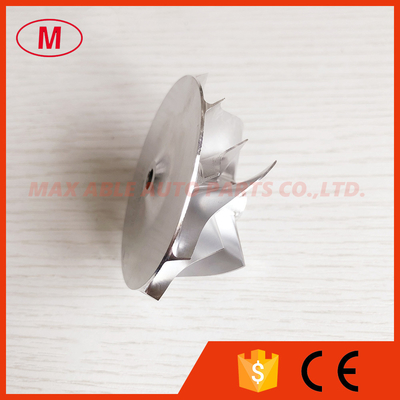

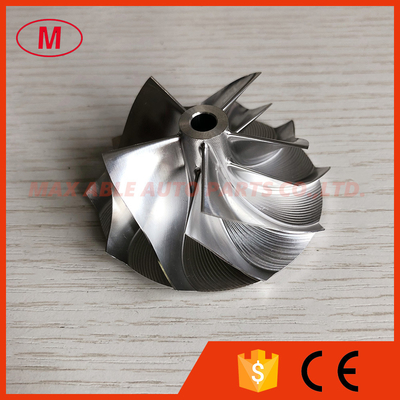

RHF5HB 49.62/61.98mm 5+5 blades high performance Turbocharger milling/aluminum 2618/Billet compressor wheel

Brand Name:	NO
Model Number:	RHF5HB

Contact Now

Detailed Product Description

1. MODEL:RHF5HB forward

2.RHF5HB 49.62/61.98mm 5+5 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:11.78mm

Inducer:49.62mm

exducer:61.98mm

Tapered tip exducer:66.89mm

Tip height:5.25mm

Superback:1.85mm

bore size :6.10mm

bore type:through

Overall height:28.77mm

Trailing Angle:45 degree

Cutback:0.0

Sp height Angle:0.00

Splitter height:16.50

Tapered tip Angle:30 degree

Blades height:24.90mm

5+5 blades forward

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719

RHF5HB 49.62/61.98mm 5+5 blades high performance Turbocharger milling/aluminum 2618/Billet compressor wheel
