| Brand Name: | NO |
| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:RHF5 reverse

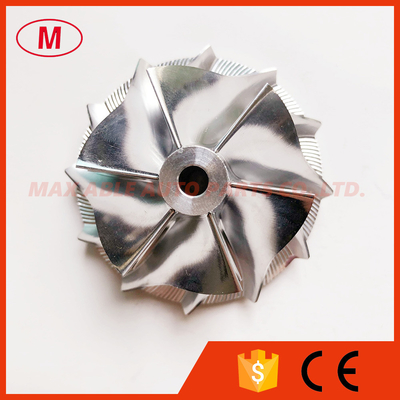

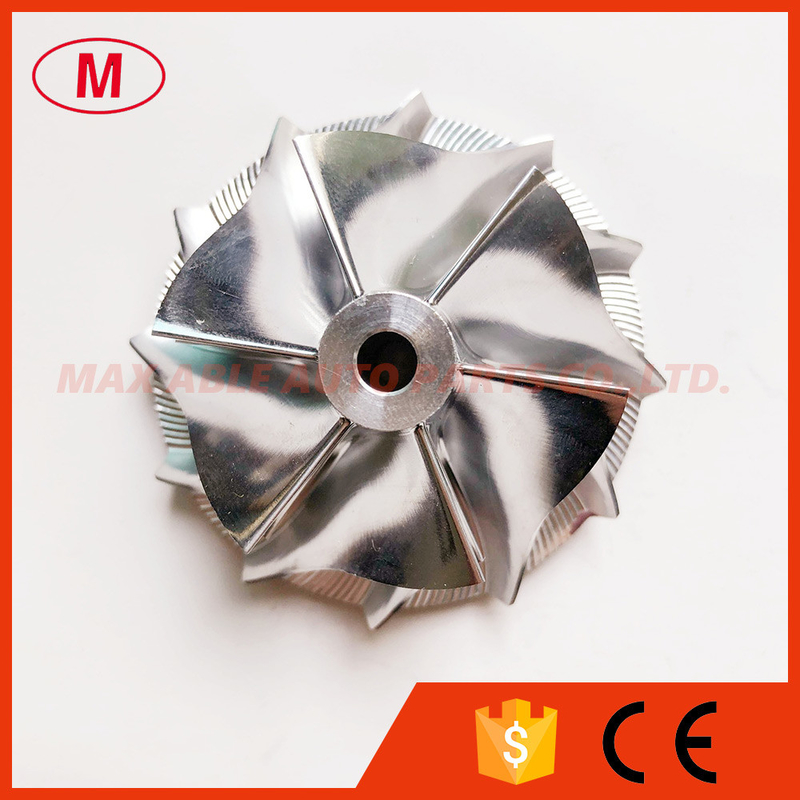

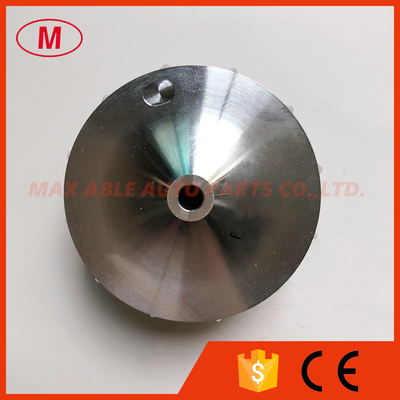

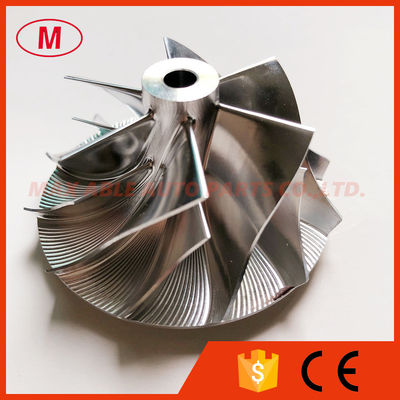

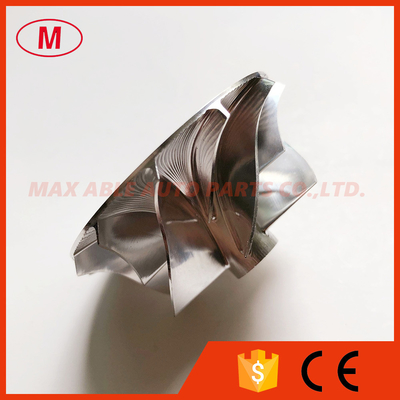

2.RHF5 reverse 41.80/54.00mm 6+6 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:11.70mm
Inducer:41.80mm
Exducer:54.00mm
Tapered tip exducer:57.53mm
Tip height:4.06mm
super back:3.85mm
overall height:30.00mm
Trailing angle:60
bore size :5.10mm
Cutback:0.0
SP height angle:-1.30
Blade height:22.80mm
Splitter height:13.80mm
6+6 blades
It is for OE compressor housing.
Tapered tip angle: 30 degree
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced
