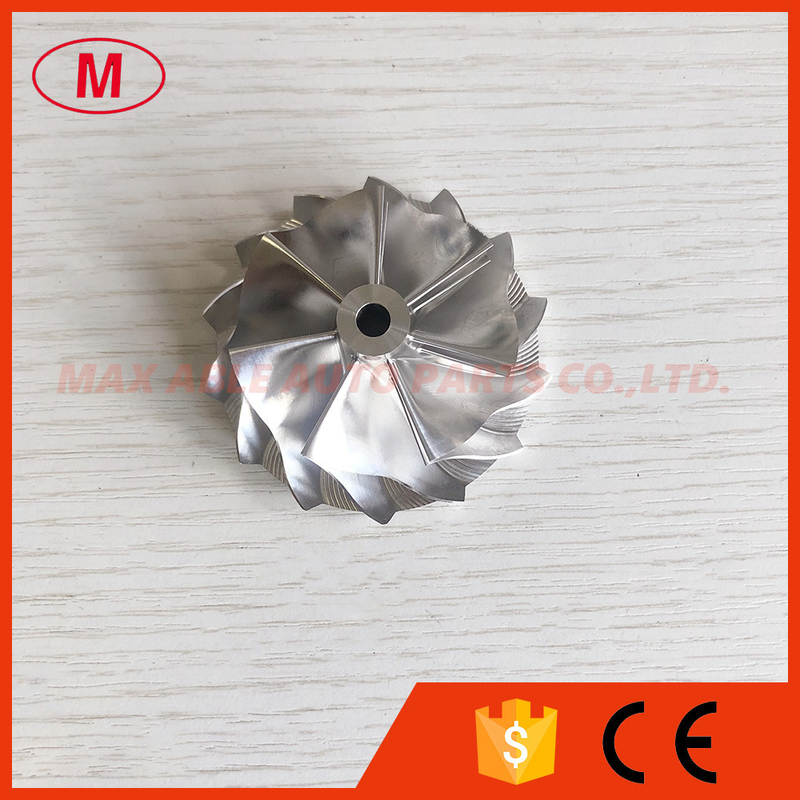

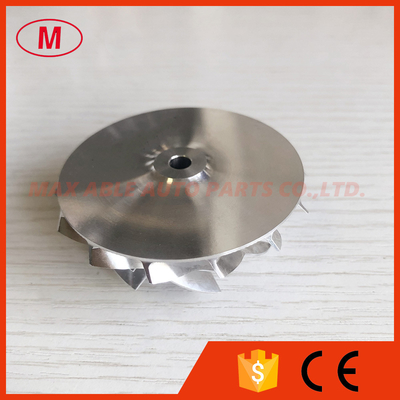

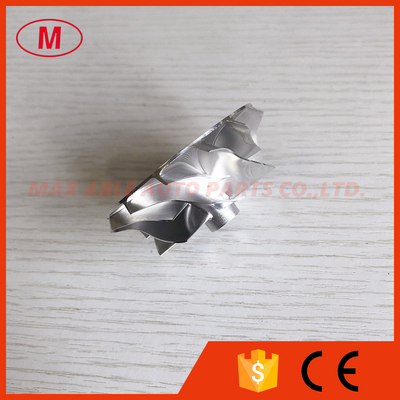

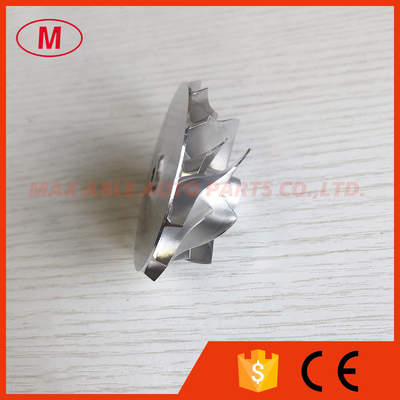

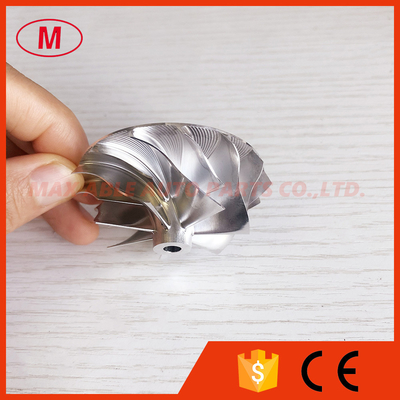

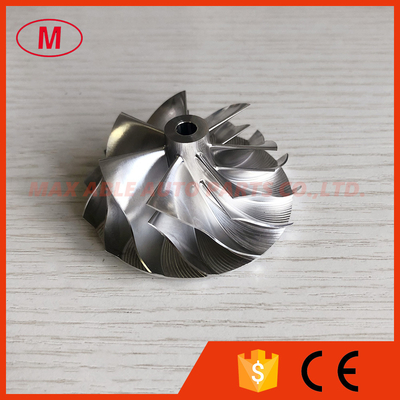

GT15-25 44.92/56.08mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheel

Brand Name:	NO
Model Number:	GT15-25

Contact Now

Detailed Product Description

Size:	44.92/56.08mm	Type:	Turbochargers

1. MODEL:GT15-25 FORWARD

2.GT15-25 44.92/56.08mm 7+7 blades turbo milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:10.97mm

Inducer:44.92mm

exducer:56.08mm

Tapered tip exducer:60.25mm

Tip height:4.61mm

Superback:1.80mm

bore size :5.08mm

bore type:through

Overall height:25.68mm

Trailing Angle:60 degree

Cutback:0.0mm

Tapered tip Angle:30 degree

SP height angle:-4.00

Blade height:19.60mm

Splitter height:12.80mm

7+7 blades forward

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheels have been balanced.

skype: maxabledieselparts

wechat/whatsapp:+8618018657719
