| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | T04S |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:T04S forward

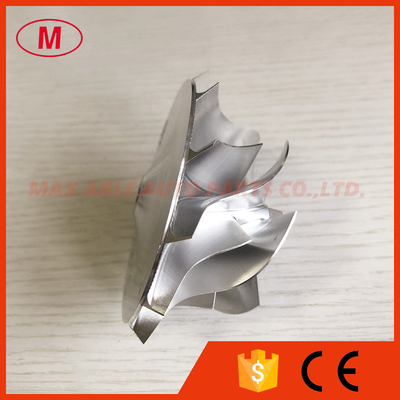

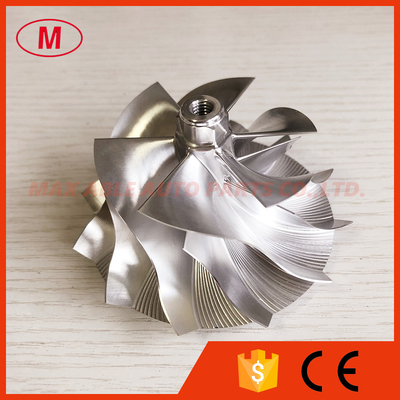

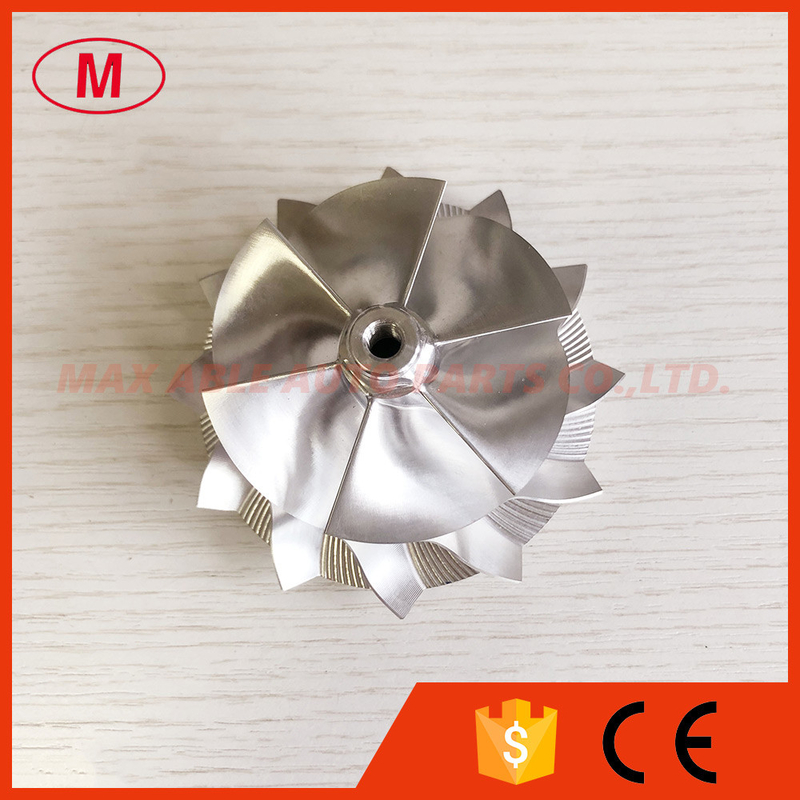

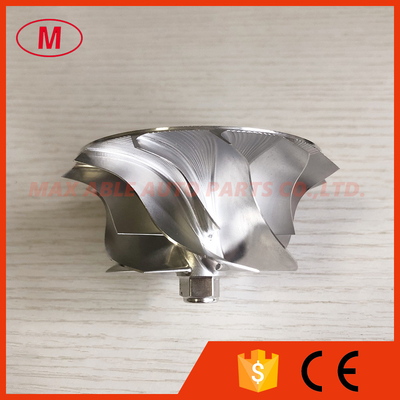

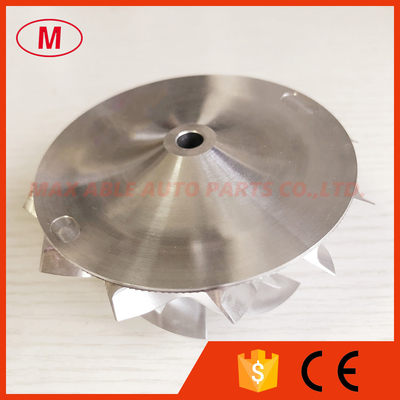

2.T04S 58.80/76.07mm 6+6 blades high performance turbo aluminum 2618/milling/Billet compressor wheel
3.Size:
Nose Diameter:15.00mm
Inducer:58.80mm
Exducer:76.07mm
Tapered tip exducer:85.70mm
Tip height:5.81mm
Superback:4.97mm
Trailing Angle:60 degree
Bore size:6.35mm
Bore type:Threaded-M6x1.0-LHT
Cutback:0.0
Blade height:33.50mm
Splitter height:24.20mm
SP height angle:0.00
Overall height:49.00mm
6+6 blades
Forward rotation
It is Custom size ,please check carefully before buying.
Tapered tip Angle:45 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
