| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT3584 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:GT3584 Forward

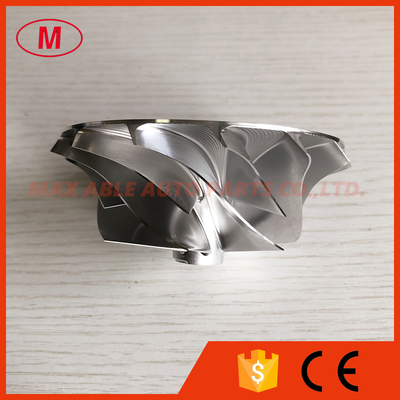

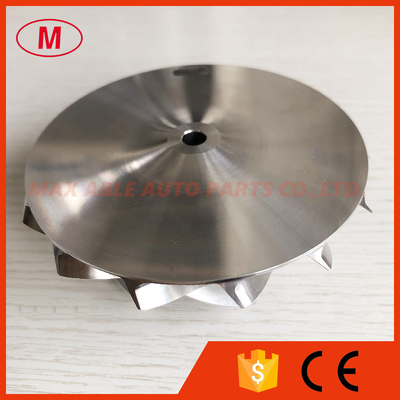

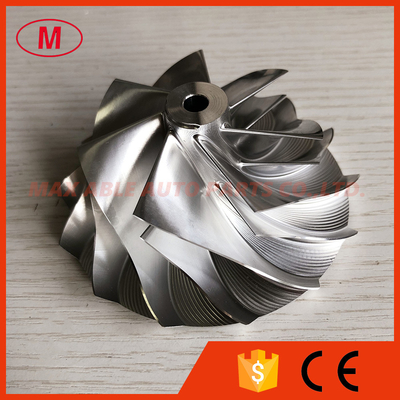

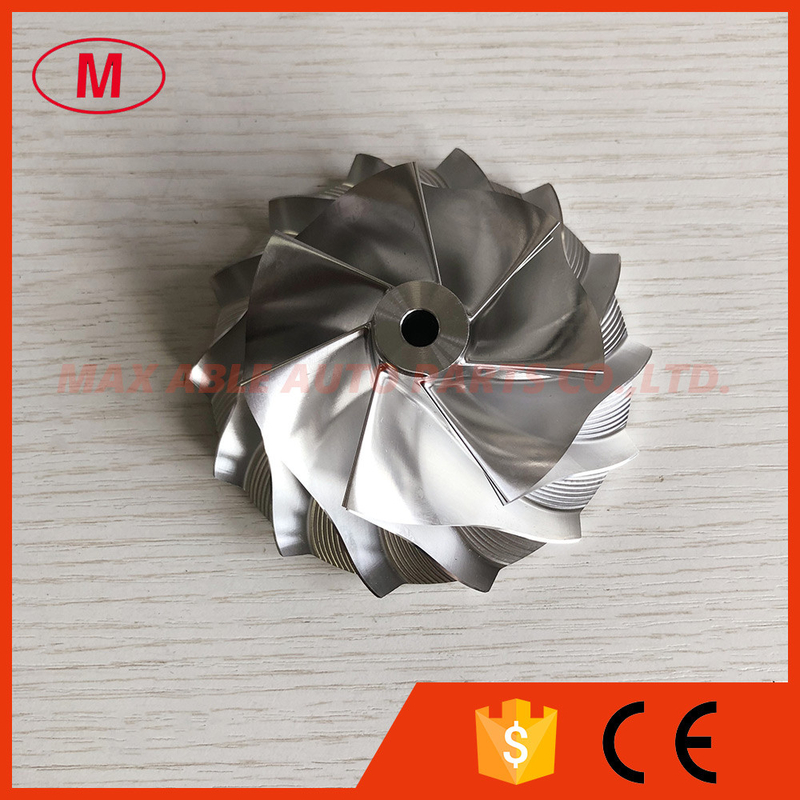

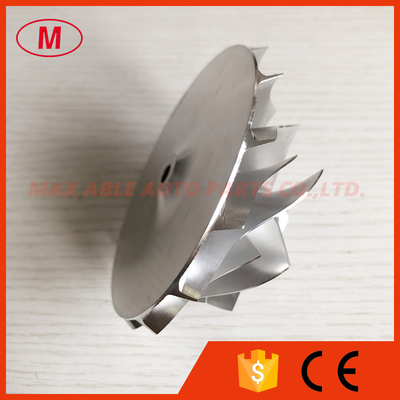

2.GT3584 7+7 blades 64.97/88.00mm high Performance turbo milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:16.50mm
Inducer:64.97mm
Exducer:88.00mm
Tapered tip exducer:94.11mm
Tip height:6.29mm
Superback:2.36mm
Bore size:6.35mm
Trailing angle:60
Cutback:8.0
SP height angle:-11.00
Splitter height:22.13mm
Blade height:34.63mm
Overall height:40.99mm
7+7 blades
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying
4.Good quality and competitive price
5.if you want to know more details ,please send email to me !
We can produce as your requirements.
All the compressor wheel have been balanced.
