| Brand Name: | NO |
| Model Number: | S400 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:S400 forward

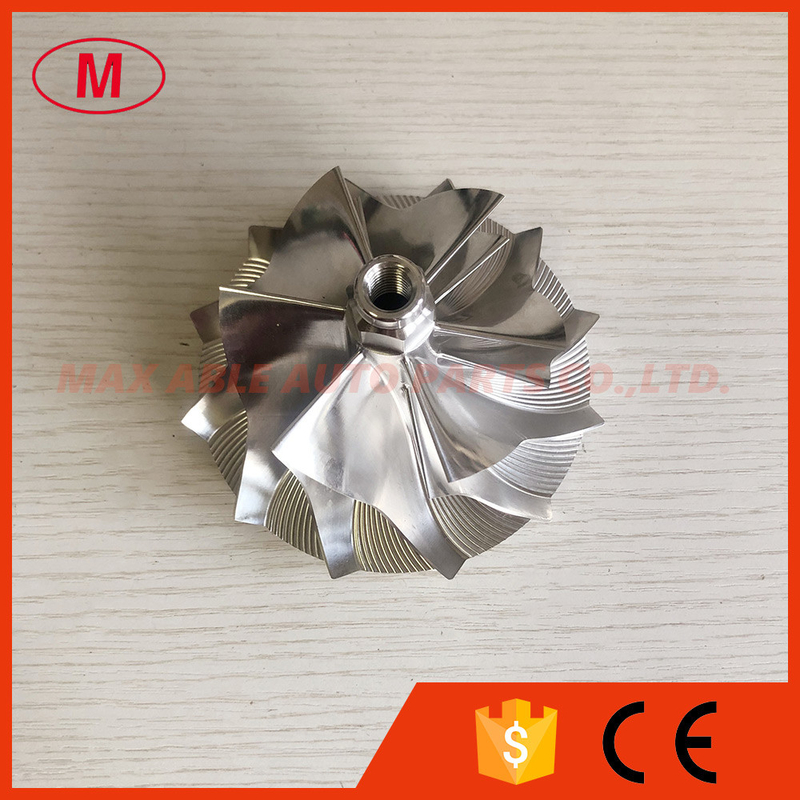

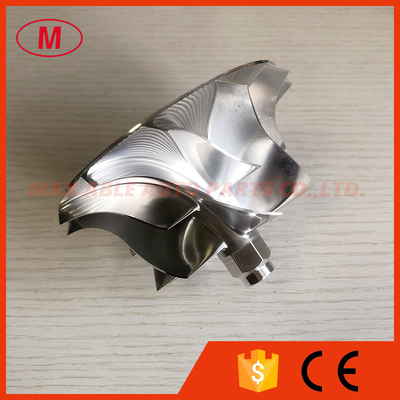

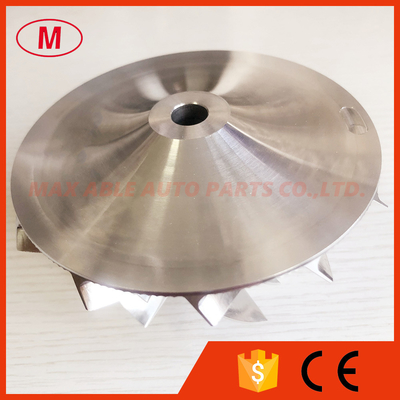

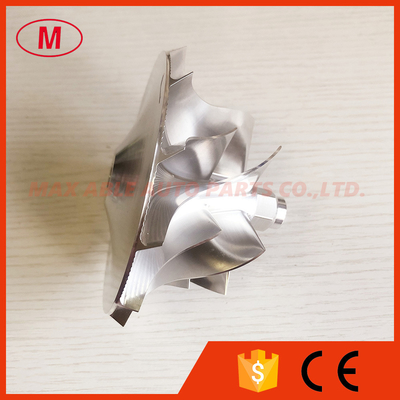

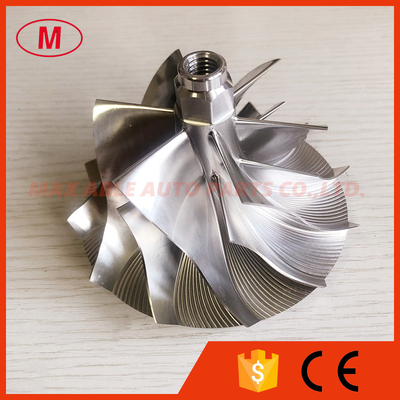

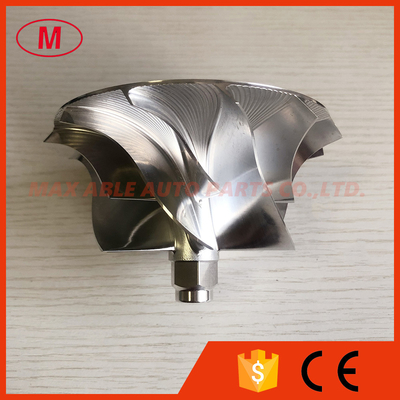

2. S400 171691 74.53/101.44mm 6+6 blades Turbo Billet/milling/aluminum 2618 compressor wheel for 171702(S400SX4-75), 176806(S400SX4-75), 179174(S400SX-75) racing.
3.Size:
Nose diameter:18.85mm
Inducer:74.53mm
Exducer:101.44mm
Tapered tip exducer:109.14mm
Tip height:7.67mm
Superback:8.41mm
Overall height:73.00mm
Bore size:10.00mm
Bore type:Threaded-M10x1.5LHT
Trailing angle:55
Overall height:73.00mm
Cutback:0.0
SP Height angle:-2.50
Blades height:46.36mm
Splitter height:29.65mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
Fits OE Compressor Housing
4.High quality and competitive price.
5.Any questions please send email to me
We can produce as your requirement.
All the compressor wheel have been balanced.
