Max Able Auto Parts Co.,Ltd.
Customer Satisfy is the eternal pursue of corporation.
Customer Satisfy is the eternal pursue of corporation.
 |
| Place of Origin: | CHINA |
| Brand Name: | NO |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
|
1. MODEL:GT15-25 forward

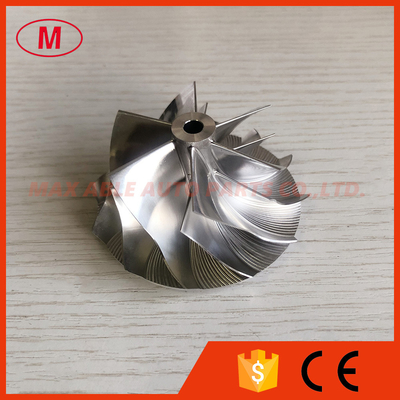

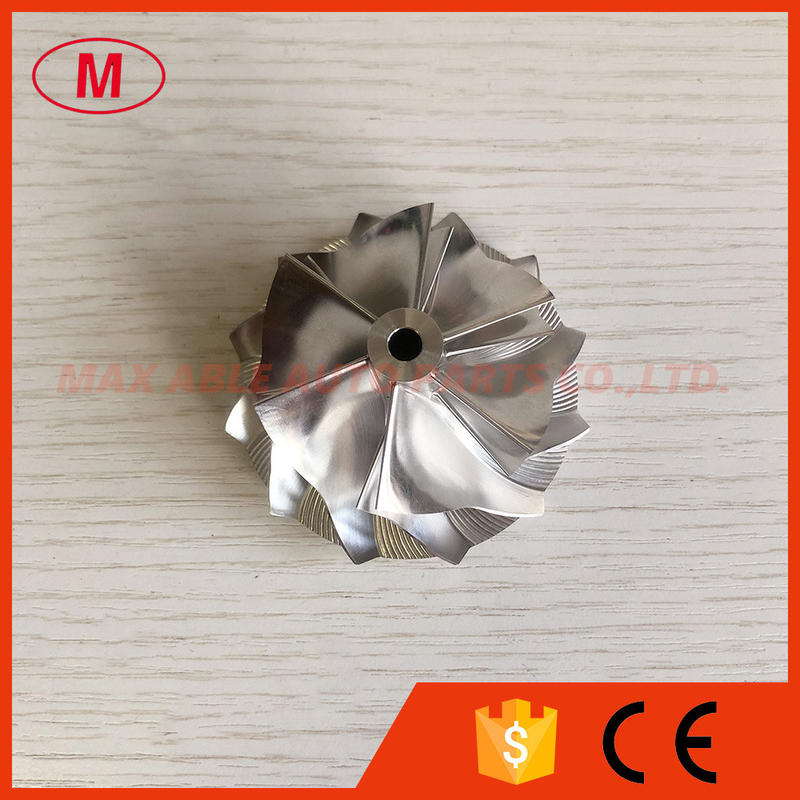

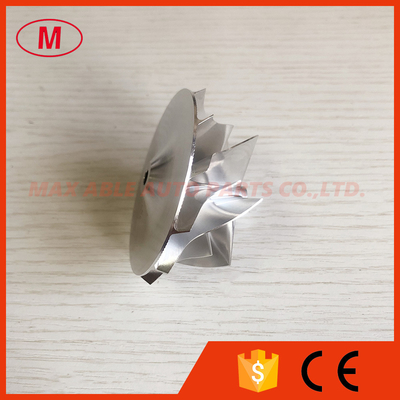

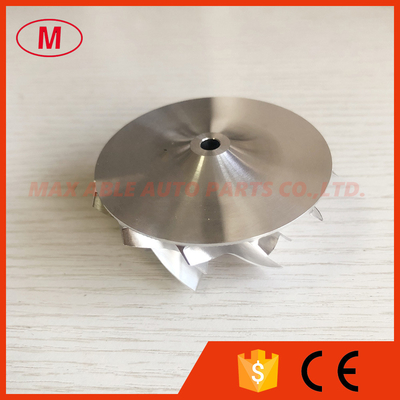

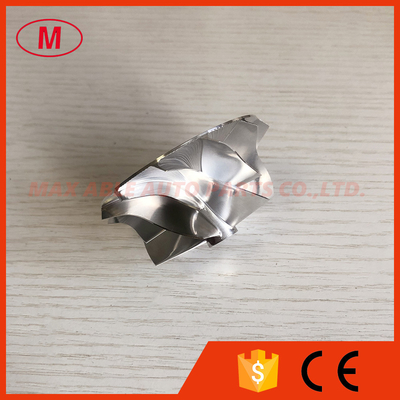

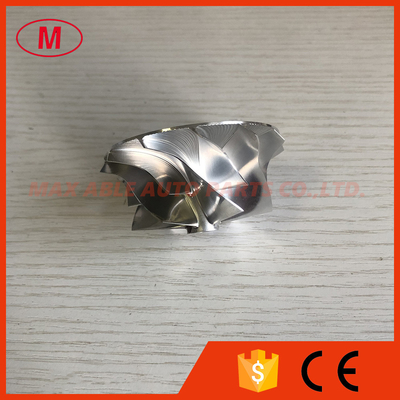

2.GT15-25 49.62/61.98mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:11.58mm
Inducer:49.62mm
exducer:61.98mm
Tapered tip exducer:66.31mm
Tip height:4.85mm
Superback:4.20mm
bore size :5.08mm
bore type:through
Overall height:34.50mm
Trailing Angle:55 degree
Cutback:6.0
Splitter height:18.35mm
SP height angle:-4.00
Tapered tip Angle:30 degree
Blades height:28.20mm
6+6 blades forward
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
Skype: maxabledieselparts Wechat/Whatsapp:+86-18018657719
|
