| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | K26 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |

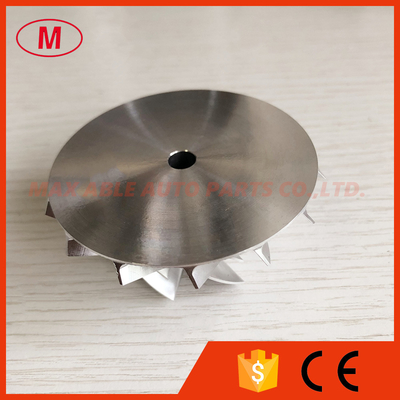

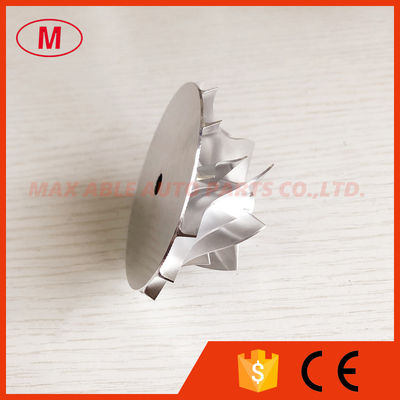

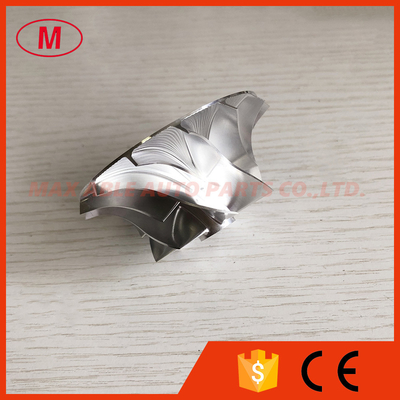

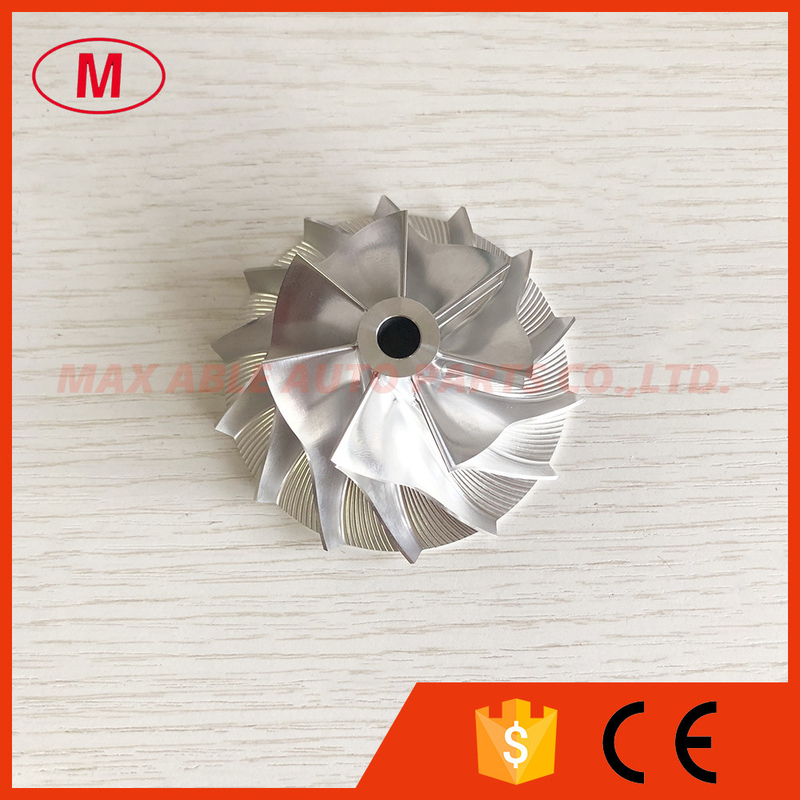

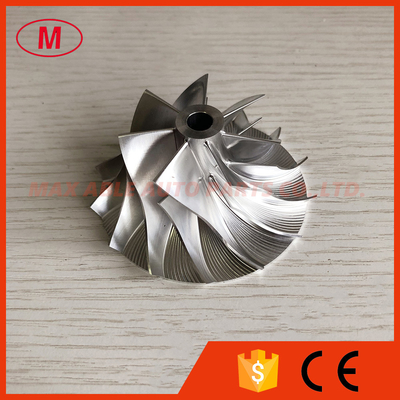

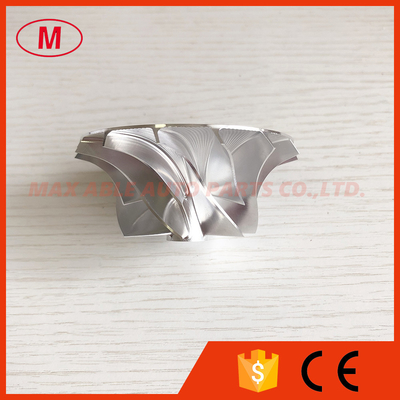

1.K26 44.5/65.94mm 7+7 blades high performance milling/aluminum 2618/billet compressor wheel
2.Size:
Nose Diameter:13.30mm
inducer:44.50mm
Exducer:65.94mm
Tapered tip exducer:70.65mm
Tip height:5.08mm
Superback:0.00mm
Overall height:30.86mm
Bore size:7.02mm
Trailing Angle:60
Cutback:0.0
Splitter height:20.00mm
SP height angle:-13.40
Blades height:29.07mm
7+7 blades
forward rotation
Tapered tip Angle:30 degree
