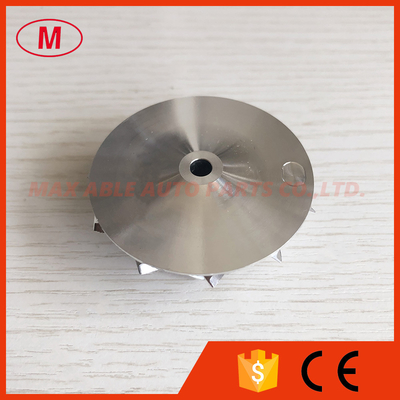

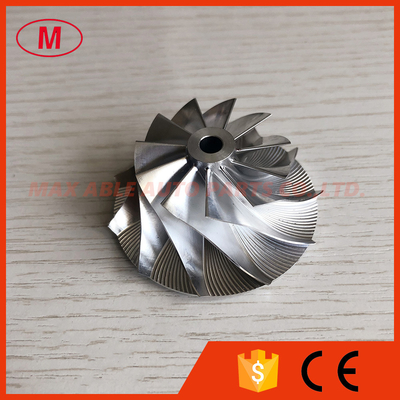

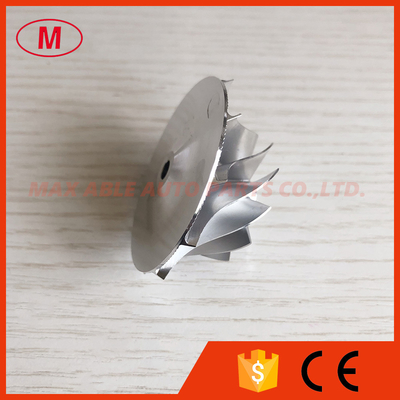

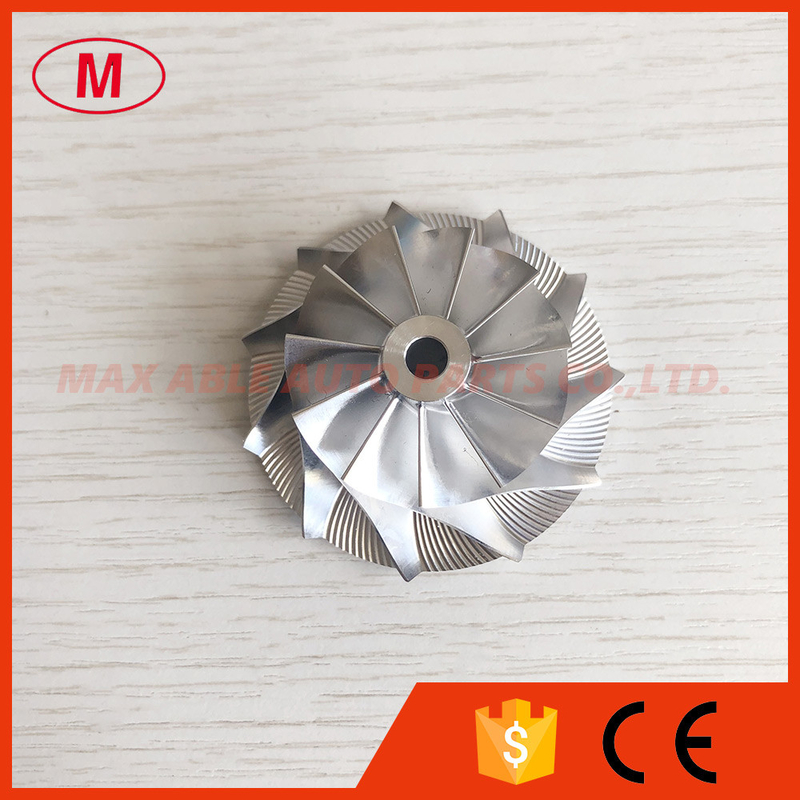

TF035 34.84/51.00mm 11+0 blades high Performance turbo milling/aluminum 2618/billet compressor wheel

Brand Name:	NO
Model Number:	TF035

Contact Now

Detailed Product Description

Size:	34.84/51.00mm	Type:	Turbochargers

1.Model:TF035 Forward

2.TF035 34.84/51.00mm 11+0 blades high Performance turbo milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:10.50mm

Inducer:34.84mm

Exducer:51.00mm

Tapered tip exducer:53.89mm

Tip height:3.30mm

Superback:1.90mm

Overall height:24.06mm

Bore size:5.01mm

Trailing angle:60

Bore Type:Through

Cutback:0.5

SP Height angle:0.00

Blade height:20.20mm

Splitter height:0.00mm

11+0blades

Forward rotation

Tapered tip angle:30 degree

It is custom size,please check carefully before buying.

4.High quality ,competitive price and good service.

5.We can also produce as your requirement.

All the compressor wheel have been balanced.

6.If you want more details, please send email to me or talk to me online.

We will try our best to meet your needs.

TF035 34.84/51.00mm 11+0 blades high Performance turbo milling/aluminum 2618/billet compressor wheel
