| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | S300 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000 |
1. MODEL:S300 Forward

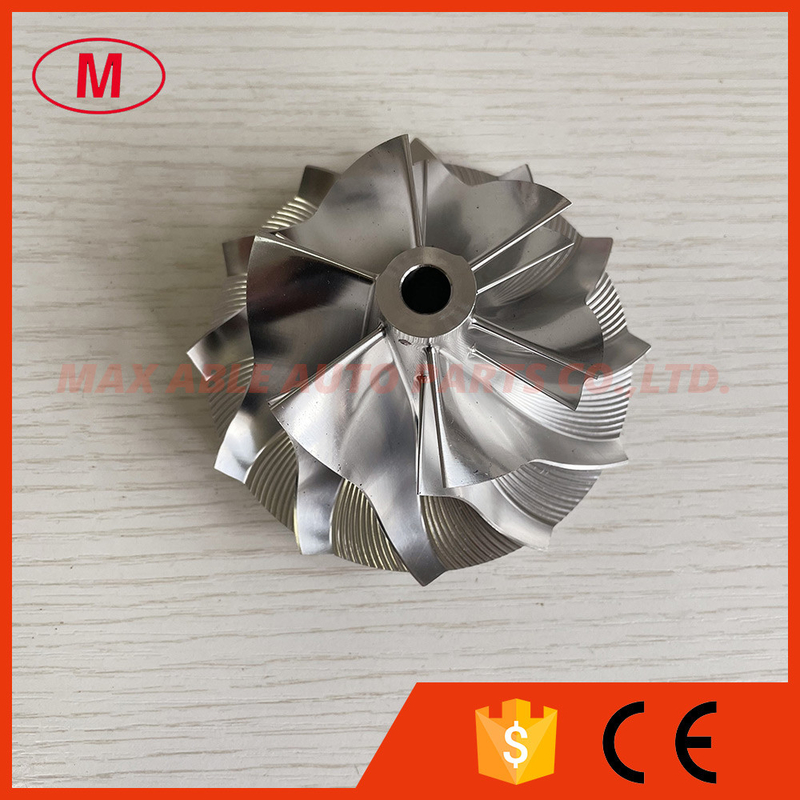

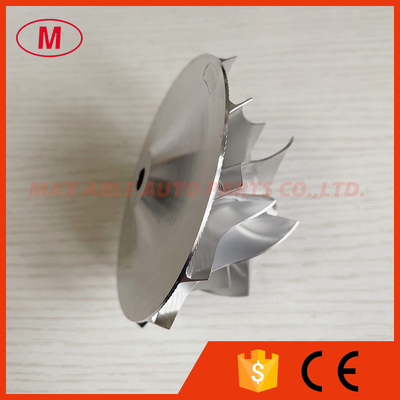

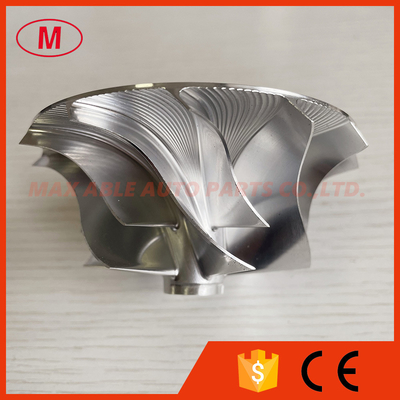

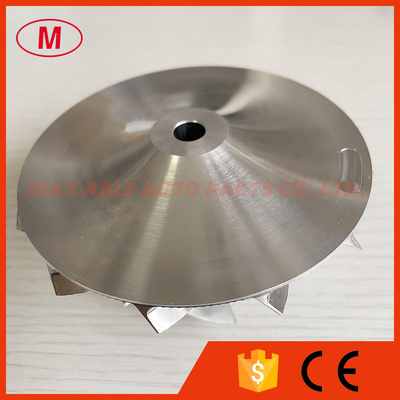

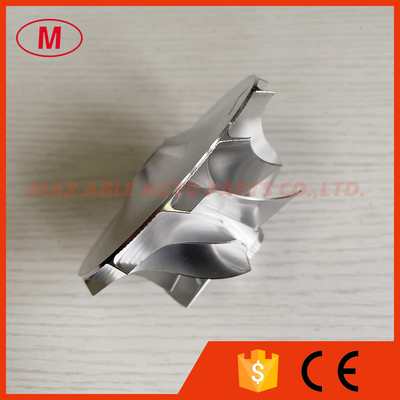

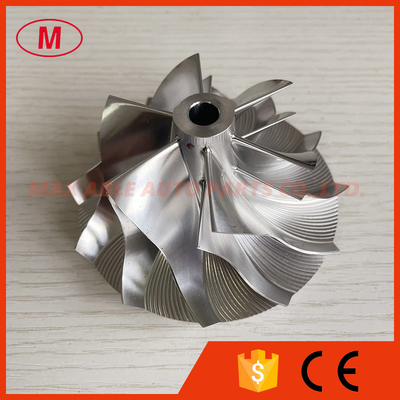

2. S300 173296 63.00/88.48 mm 6+6blades turbo milling/aluminum 2618/billet compressor wheel for 177283(S300SX3-63) racing
3.Size:
Nose Diameter:16.46mm
inducer:63.00mm
Exducer:88.48mm
Tapered tip exducer:93.89mm
Tip height:6.31mm
Superback:6.98mm
Overall height:48.75mm
Bore size:8.01mm
Bore type:Through
Trailing Angle:45
Cutback:6.0
SP height angle:2.80
Blade height:37.08mm
Splitter height:25.65mm
6+6 BLADES
Tapered tip angle:27 degree
FIT for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.
