1.Model: S400 forward

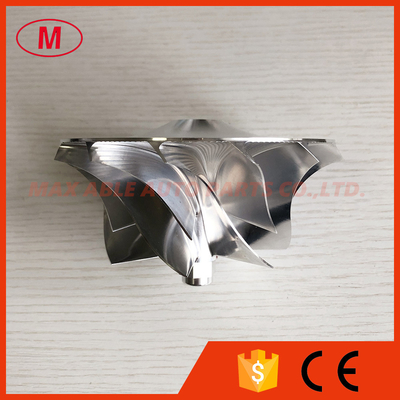

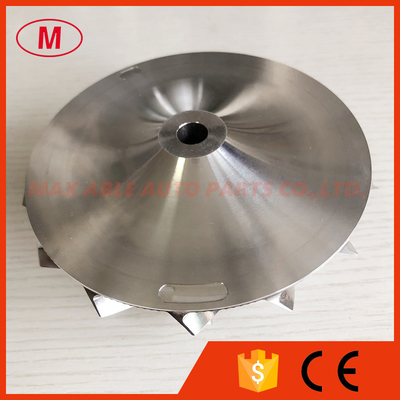

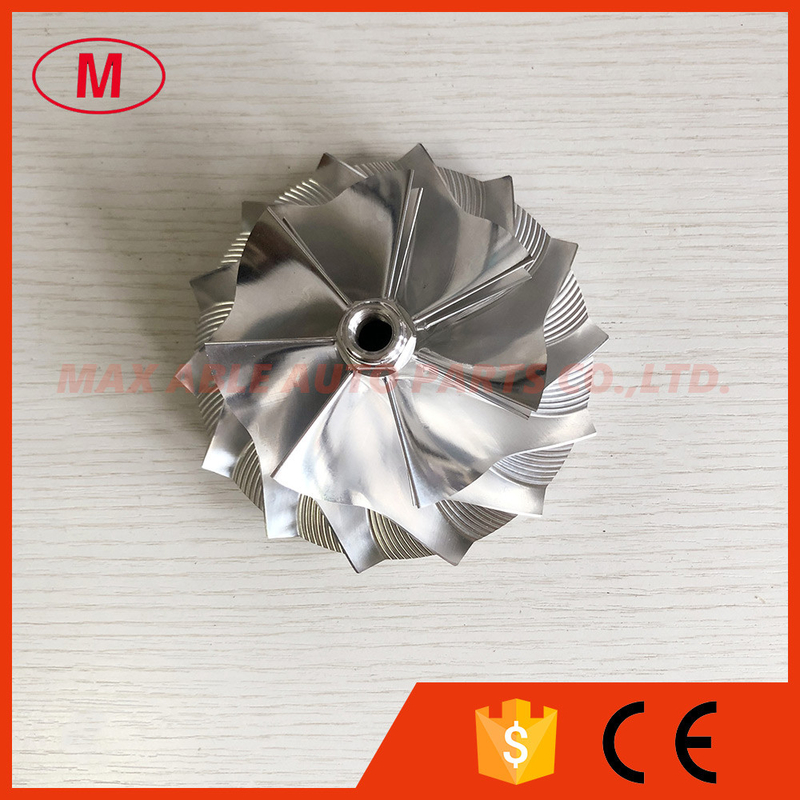

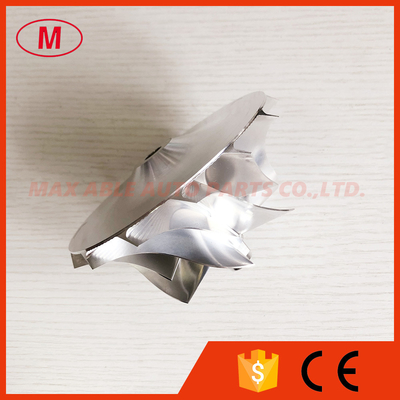

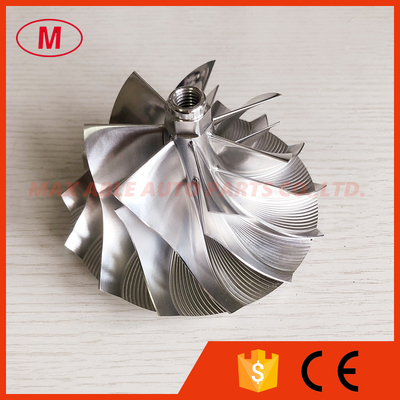

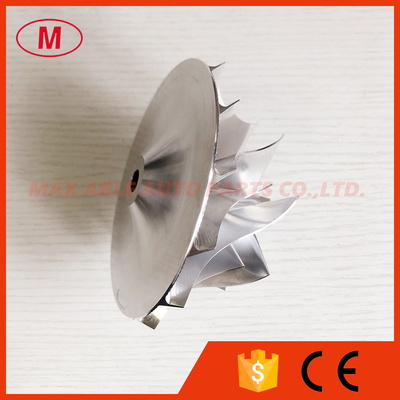

2.S400 80.44/113.00mm 7+7 blades high performance turbo aluminum 2618/milling/billet compressor wheel
3.SIZE:
Nose Diameter:17.25mm
inducer:80.44mm
Exducer:113.00mm
Tapered tip exducer:120.35mm
Tip height:7.55mm
Superback:8.41mm
Bore type:Threaded-M10x1.5LHT
Overall height:71.00mm
bore size :10.00mm
Trailing angle:50
Cutback:0.0
Sp height angle:-13.00
Splitter height:35.30mm
Blades height:48.55mm
7+7 blades
Forward rotation
It is custom size ,please check carefully before buying.
Tapered tip angle:29.3 degree
4.Good quality and competitive price
5.Please send email to me or talk to me on online ,if you want to know more details.
All the billet compressor wheel have been balanced.
