| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD05H |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:TD05H Forward

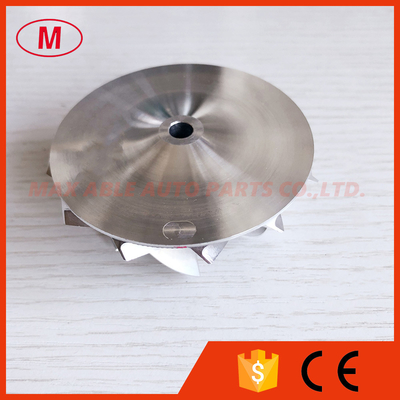

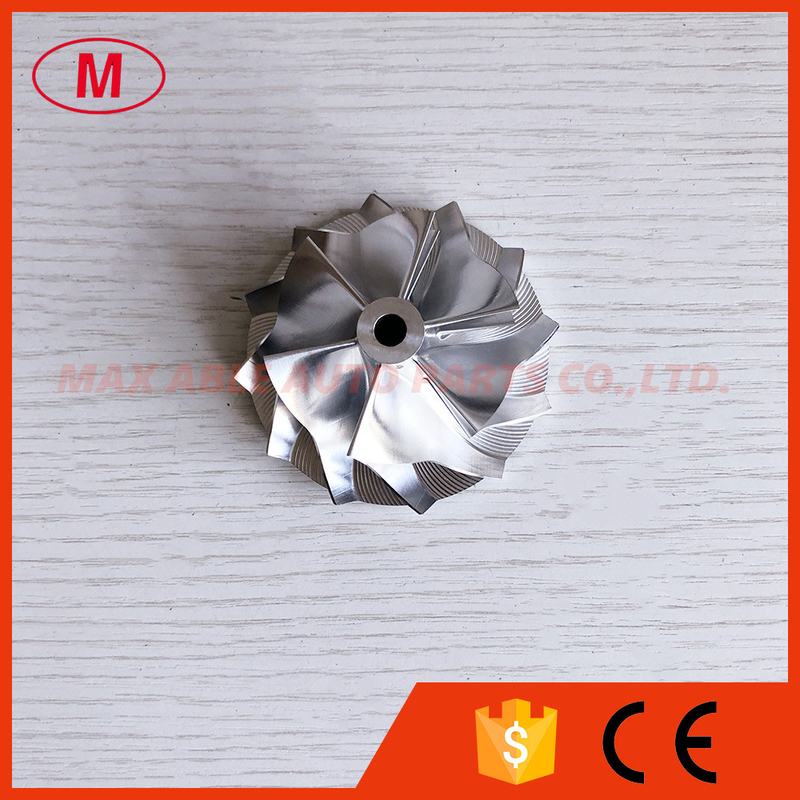

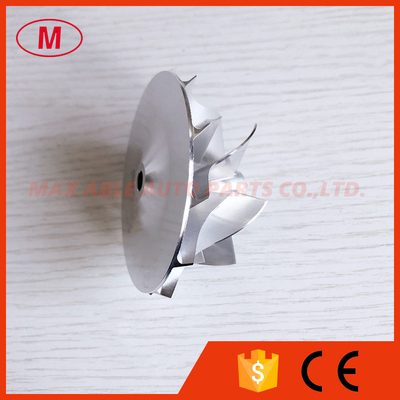

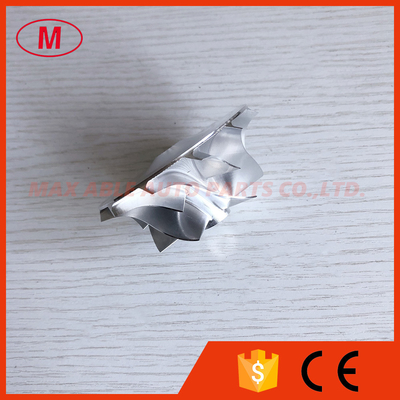

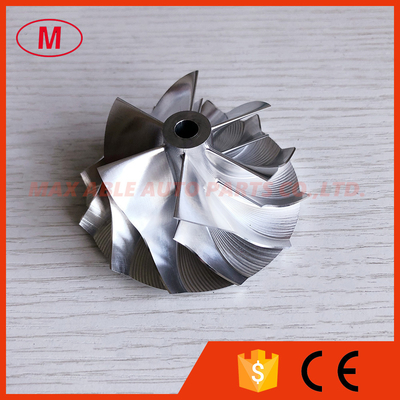

2. TD05H 52.56/70.01mm 6+6 blades high performance Turbocharger aluminum 2618/milling/billet compressor wheel
3.Size:
Nose diameter:13.50mm
Inducer: 52.56mm
Exducer:70.01mm
Tapered tip exducer:74.78mm
Tip height:5.14mm
Superback:2.90mm
bore size :6.5mm
Overall height:35.00mm
Trailing angle:45
Cutback:0.0
SP height angle:-8.60
Blade height:28.90mm
Splitter height:17.15mm
6+6 Blades
Forward rotation
It is custom size ,please check carefully before buying.
Tapered tip angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
