| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | unkown |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL: forward

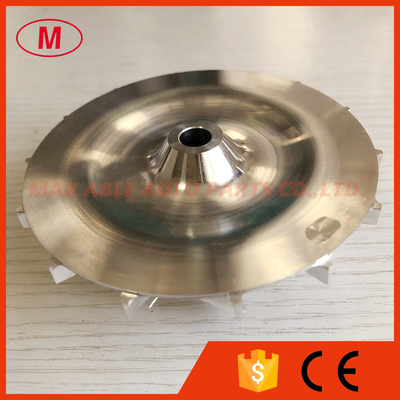

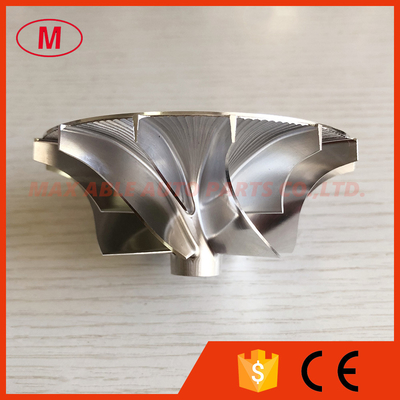

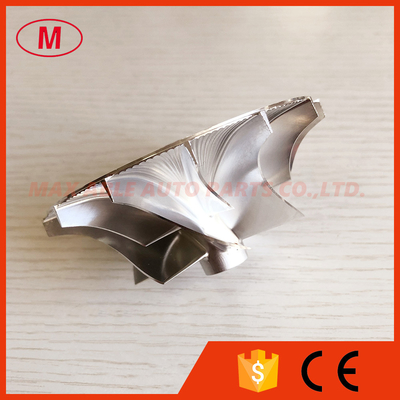

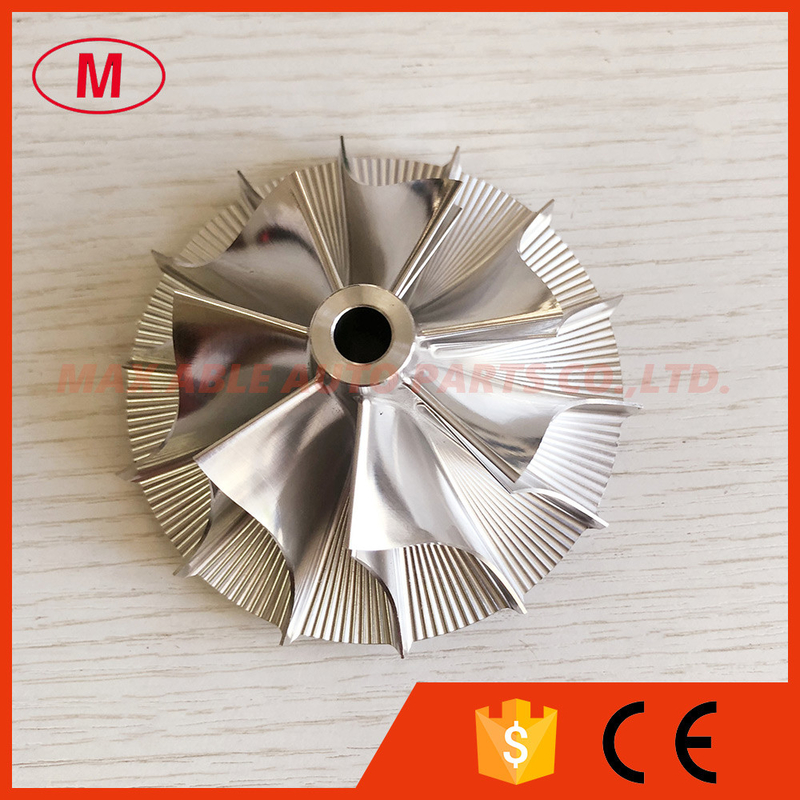

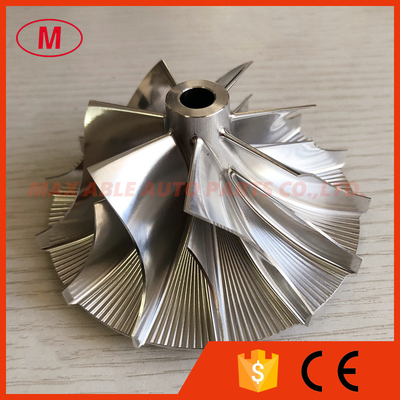

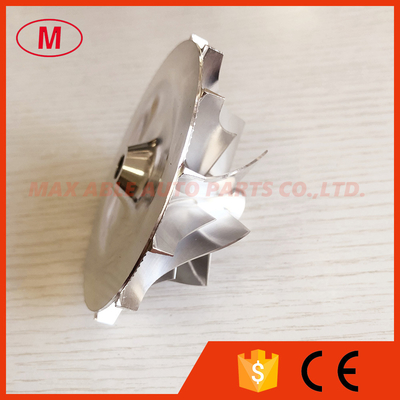

2. 57.07/85.80mm 7+7 blades Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:14.50mm
Inducer:57.07mm
Exducer:85.80mm
Tapered tip exducer:90.04mm
Tip height:6.48mm
Superback:4.78mm
Overall height:73.00mm
Bore size:7.90mm
Trailing angle:90
Overall height:41.50mm
Cutback:0.0
SP Height angle:0.0
Blades height:30.57mm
Splitter height:19.60mm
7+7 blades
Forward rotation
Tapered tip angle:0 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me
We can produce as your requirement.
All the compressor wheel have been balanced.
