| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | TD04HL |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:TD04HL 19T forward

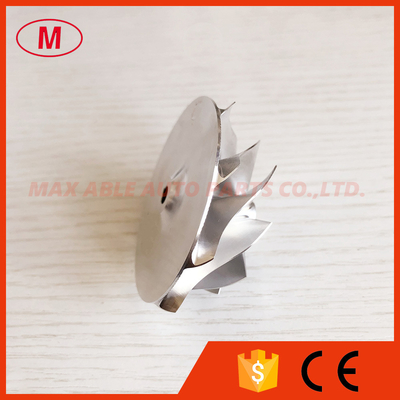

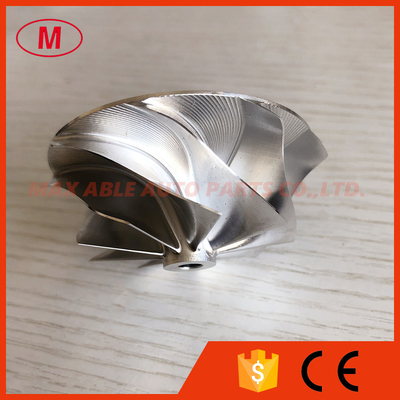

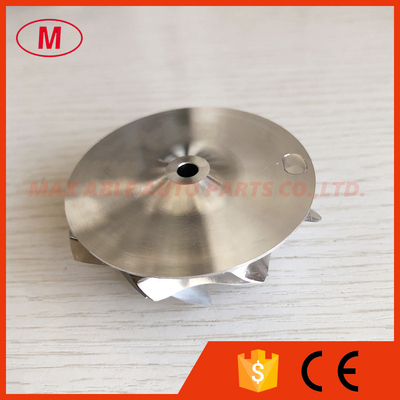

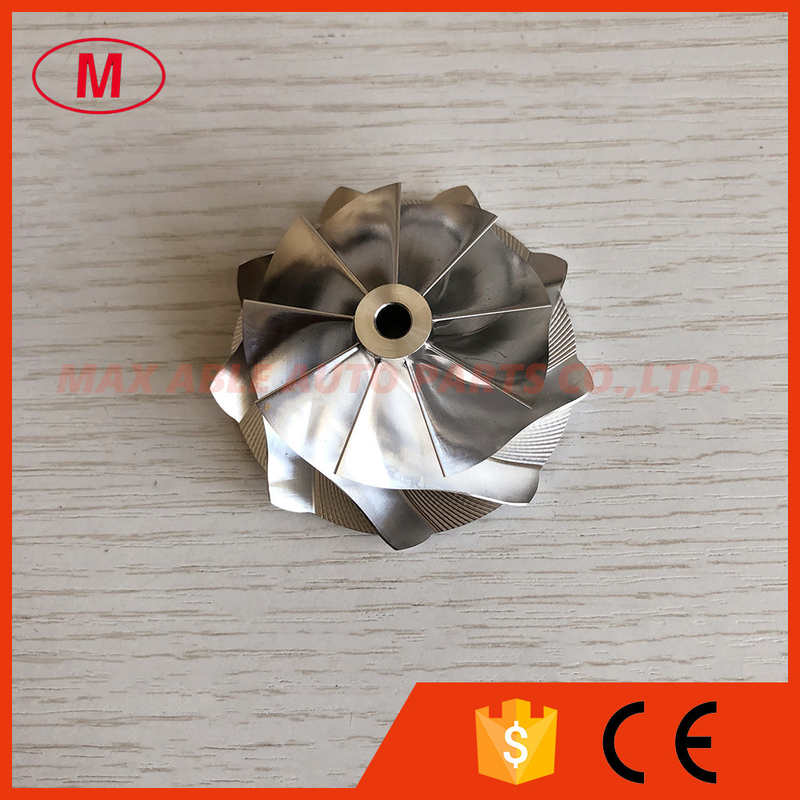

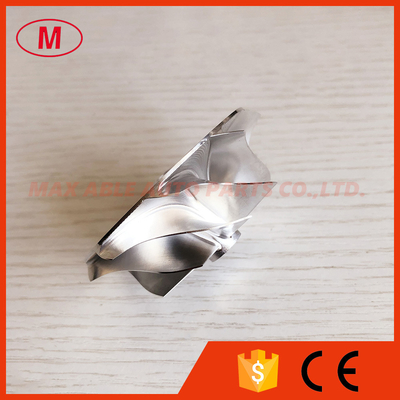

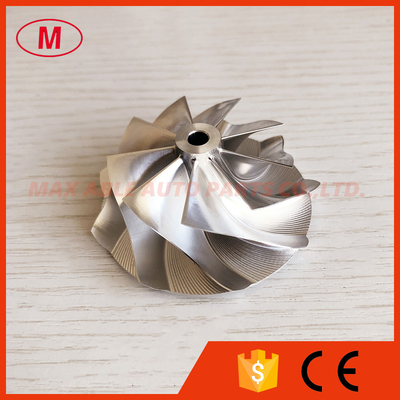

2.TD04HL 19T 46.02/58.00mm 9+0 blades 49189-X high performance turbo milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:11.00mm
Inducer:46.02mm
Exducer:58.00mm
Tapered tip exducer:62.74mm
Tip height:4.94mm
Superback:1.90mm
Overall height:26.13mm
Bore size:5.00mm
bore type:through
Trailing angle:35 degree
Cutback:6.6
SP Height angle:0.00
Blades height:22.20mm
Splitter height:0.00
9+0 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.Any questions please send email to me.
6.Application:
7.All the compressor wheels have been balanced.
