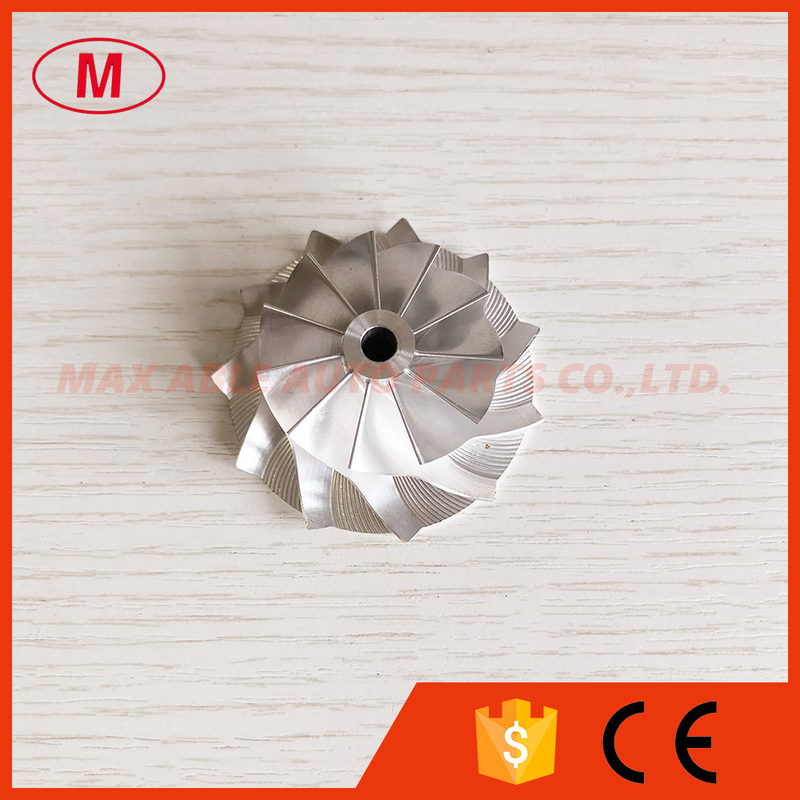

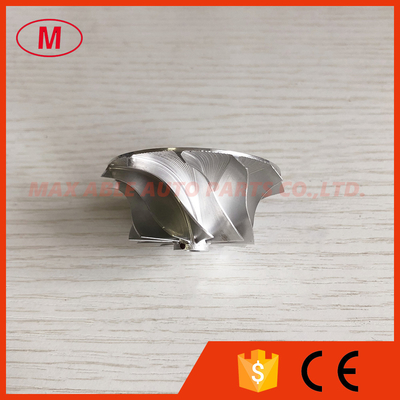

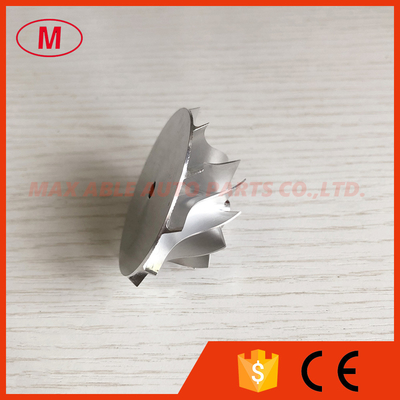

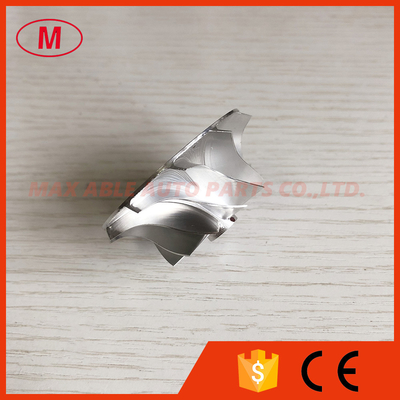

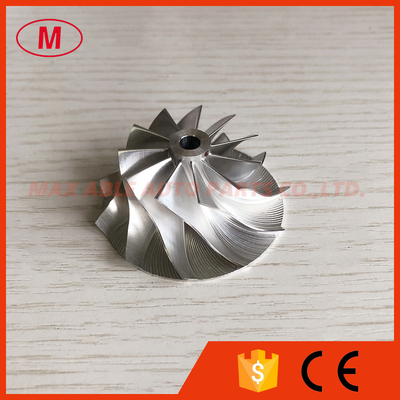

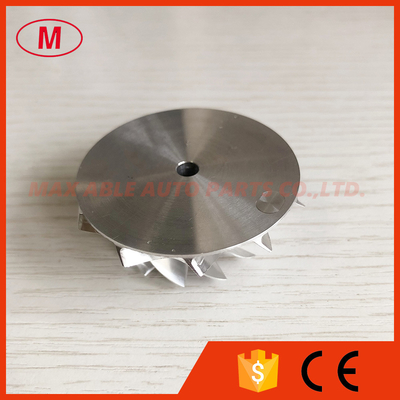

TD04 9B-FB 49171-41410 34.82/49.00mm 11+0 blades performance turbo billet compressor wheel for 49171-01200

TD04 9B-FB 49171-41410 34.82/49.00mm 11+0 blades performance turbo billet compressor wheel for 49171-01200

    • TD04 9B-FB 49171-41410 34.82/49.00mm 11+0 blades performance turbo billet compressor wheel for 49171-01200
    • TD04 9B-FB 49171-41410 34.82/49.00mm 11+0 blades performance turbo billet compressor wheel for 49171-01200
    • TD04 9B-FB 49171-41410 34.82/49.00mm 11+0 blades performance turbo billet compressor wheel for 49171-01200
    • TD04 9B-FB 49171-41410 34.82/49.00mm 11+0 blades performance turbo billet compressor wheel for 49171-01200
    • TD04 9B-FB 49171-41410 34.82/49.00mm 11+0 blades performance turbo billet compressor wheel for 49171-01200
    • TD04 9B-FB 49171-41410 34.82/49.00mm 11+0 blades performance turbo billet compressor wheel for 49171-01200
    • TD04 9B-FB 49171-41410 34.82/49.00mm 11+0 blades performance turbo billet compressor wheel for 49171-01200

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: TD04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Price: DISCUSS
    Packaging Details: neutral packing
    Delivery Time: 3-7 DAYS
    Payment Terms: T/T, Western Union, MoneyGram,PAYPAL
    Supply Ability: 1000PCS
    Contact Now
    Detailed Product Description

    1.Model:TD04 Forward
    2.TD04 34.82/49.00mm 11+0 blades  9B-FB 49171-41410 high performance turbocharger milling/aluminum 2618/billet compressor wheel for 49171-01200/49177-00640
    3.Size:
    Nose diameter:9.74mm
    Inducer:34.82mm
    Exducer:49.00mm
    Tapered tip exducer:52.82mm
    Tip height:4.31mm
    Superback:0.00mm
    Overall height:22.49mm
    Bore size:5.00mm
    bore type:through
    Trailing angle:60
    Cutback:0.0
    SP Height angle:0.00
    Blade height:20.44mm
    Splitter height:0.00mm
    11+0 blades
    Forward rotation
    Tapered tip angle:30 degree
    It is for OE compressor housing

    4.High quality ,competitive price and good service.

    5.We can also produce as your requirement.
    All the compressor wheel have been balanced.

    6.If you want more details, please send email to me or talk to me online.
    We will try our best to meet your needs.
