1. MODEL:forward

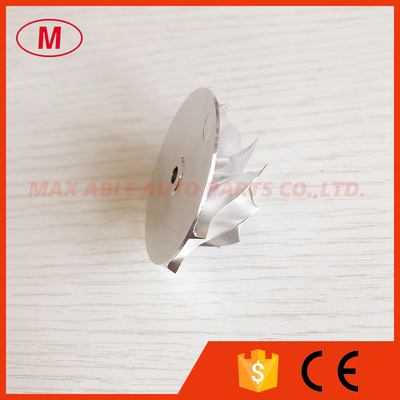

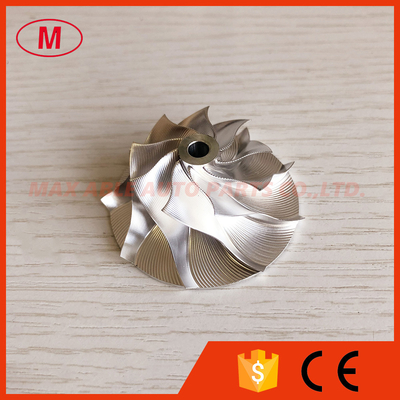

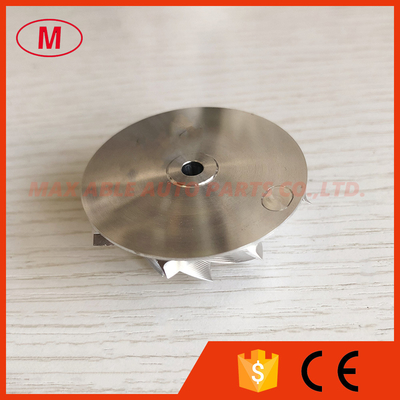

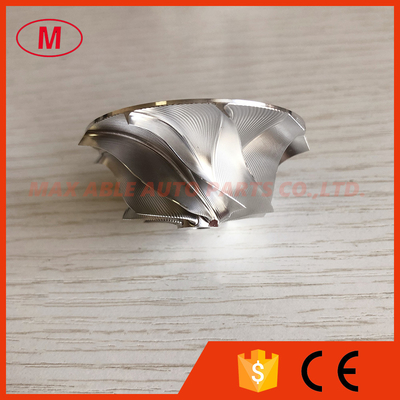

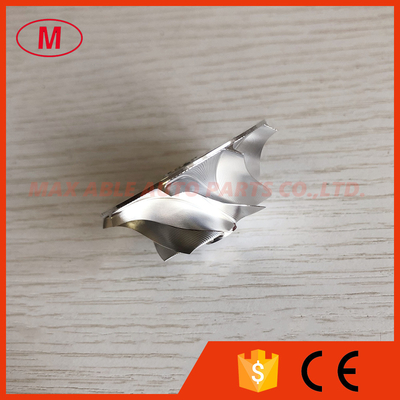

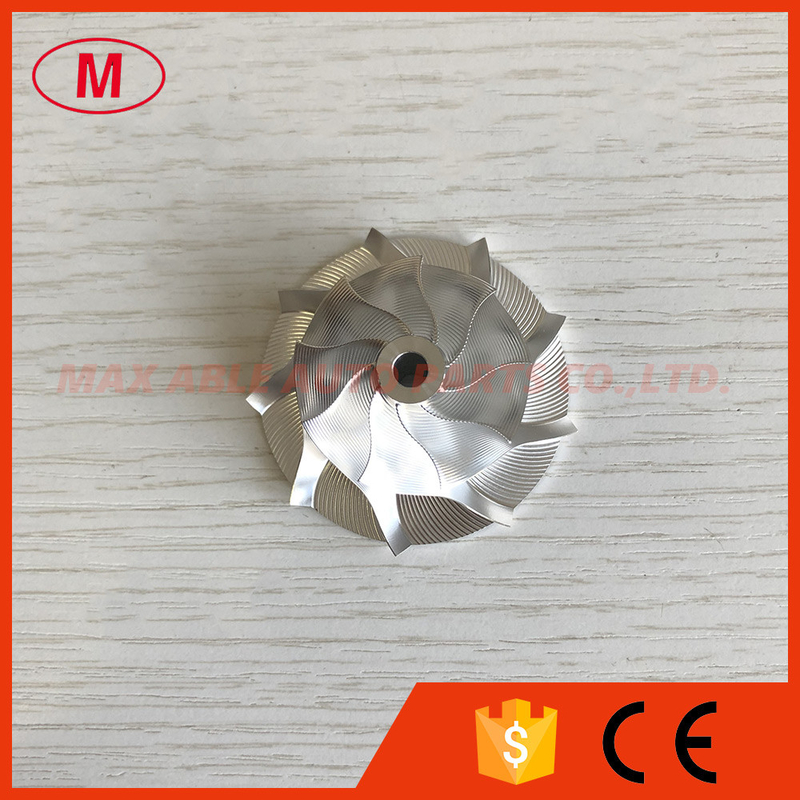

2. 31.60/46.00mm 9+0 blades point milling high performance billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:9.00mm
inducer:31.60mm
Exduder:46.00mm
Tapered tip exducer:49.31mm
Tip height:3.67mm
Superback:0.40mm
Overall height:20.23mm
bore size :4.50mm
Trailing Angle:60
Cutback:4.0
Splitter height:0.00
SP height angle:0.00
Blades height:17.35mm
9+0blades
Forward rotation
Tapered tip Angle: 30 degree
Fit for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
