| Place of Origin: | China |
| Brand Name: | no |
| Model Number: | TD06 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days after payment |
| Payment Terms: | TT,western union ,paypal |
| Supply Ability: | 10000pcs |
|
1.Model:TD06 Forward

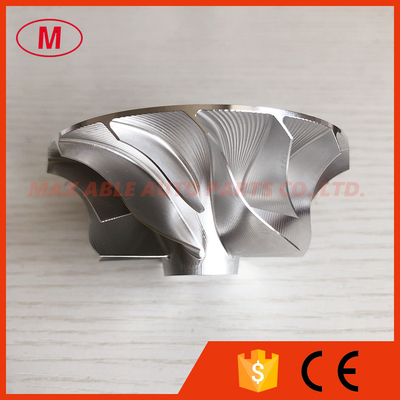

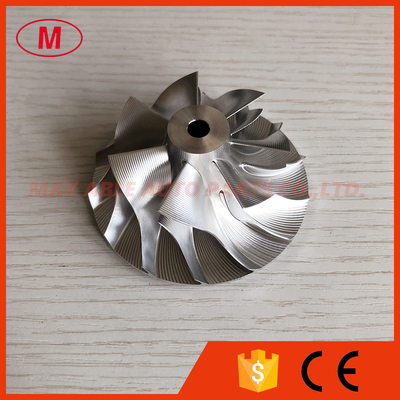

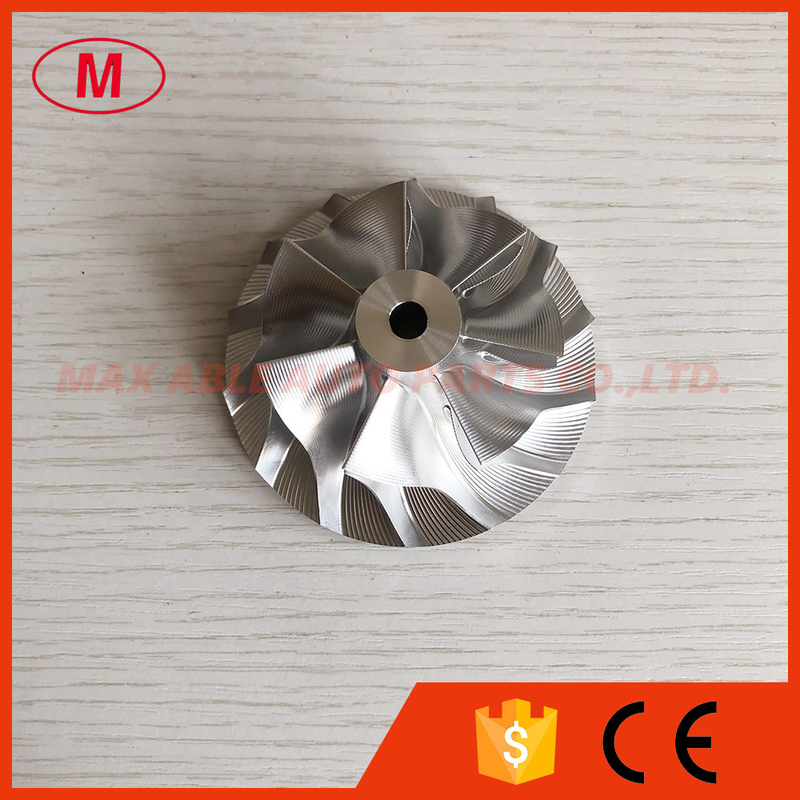

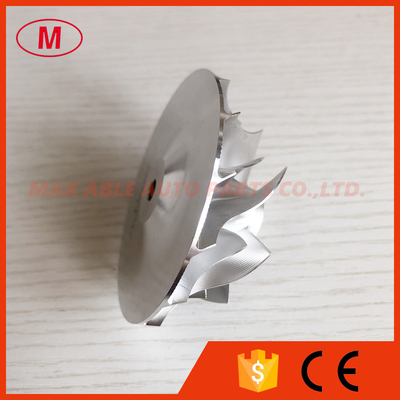

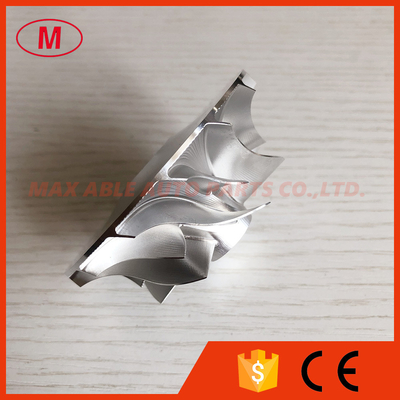

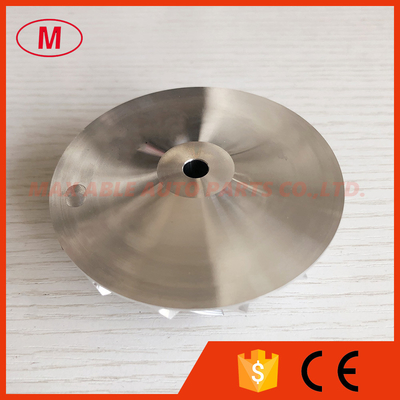

2.TD06 55.08/75.00mm 7+7 blades point milling turbo milling/aluminum 2618 /billet compressor wheel for TF06-07*18KX3RC-12T
3.Size:
Nose diameter:18.30mm
Inducer:55.08mm
Exducer:75.00mm
Tip height:5.53mm
Superback:2.70mm
Overall height:32.95mm
Bore size:6.50mm
Trailing angle:45
Cutback:0.0
SP Height angle:-17.70
Blade height:25.90mm
Splitter height:18.60mm
7+7 blades
forward rotation
Tapered tip angle:0 degree
It is for OE compressor housing
4.High quality ,competitive price and good service.
5.We can also produce as your requirement.
All the compressor wheel have been balanced.
6.If you want more details, please send email to me or talk to me online.
We will try our best to meet your needs
 |
