| Place of Origin: | China |
| Brand Name: | no |
| Model Number: | GT15-25 |
| Minimum Order Quantity: | 1PCS |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days after payment |
| Payment Terms: | TT,western union ,paypal |
| Supply Ability: | 10000pcs |
|
1. MODEL:GT15-25 forward

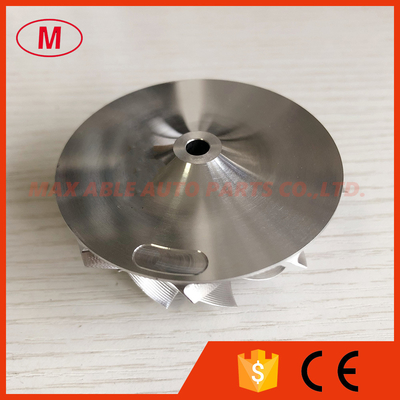

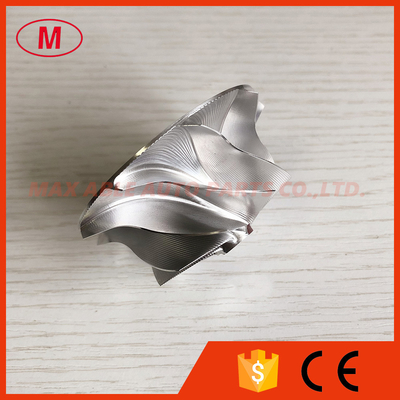

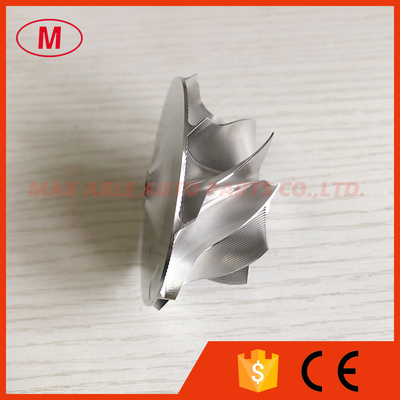

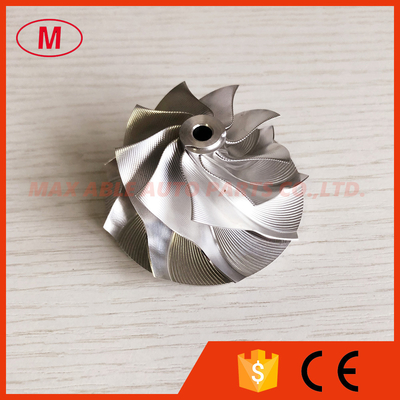

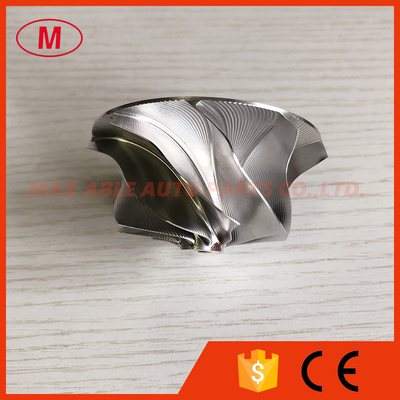

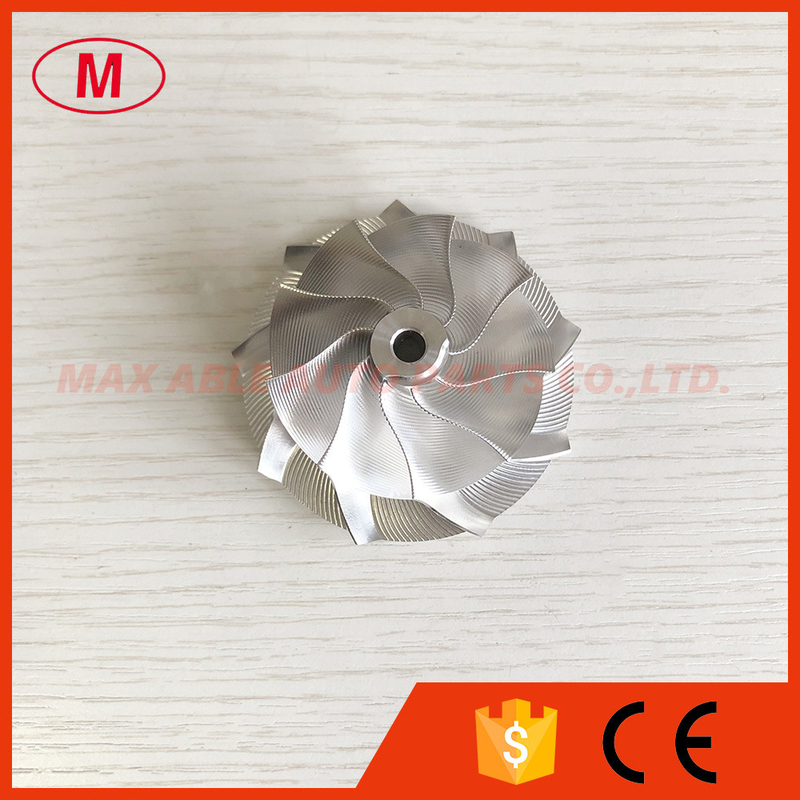

2.GT15-25 47.00/61.98mm 9+0 blades Point Milling_Snake Curve,Twisted Blade design Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:12.19mm
Inducer:47.00mm
exducer:61.98mm
Tapered tip exducer:65.45mm
Tip height:4.41mm
Superback:3.71mm
bore size :5.08mm
bore type:through
Overall height:34.00mm
Trailing angle:45 degree
Cutback:7.0mm
Blades height:25.70mm
SP height Angle:0.00
Splitter height:0.00mm
9+0 blades forward
Tapered tip Angle:27 degree
It is Custom size,Please check carefully before buying
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheels have been balanced.
