| Model Number: | tb25 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1.Model:TB25 forward

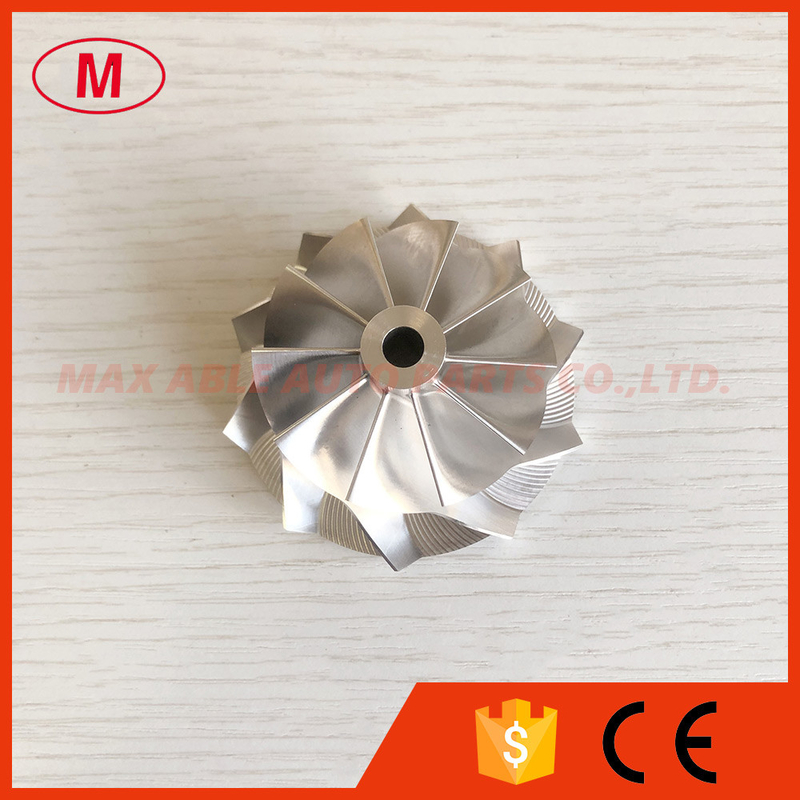

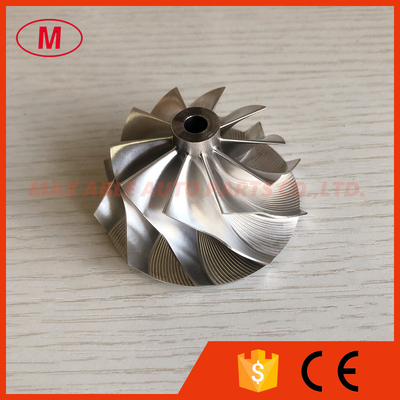

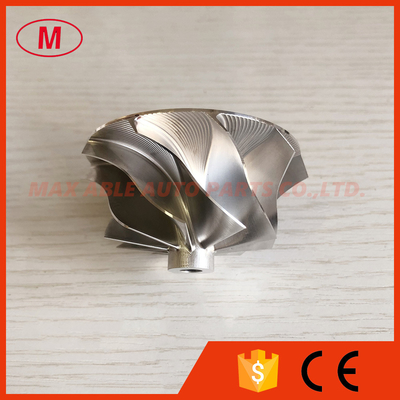

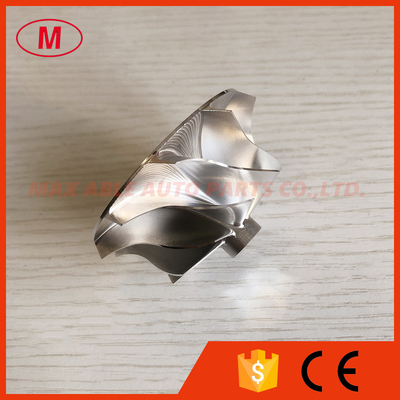

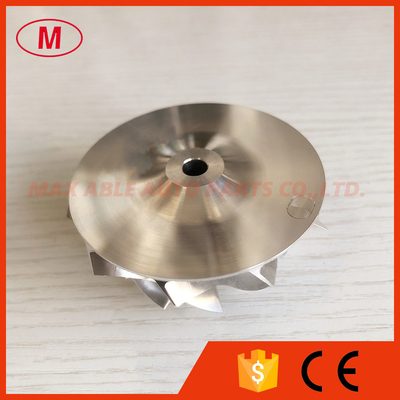

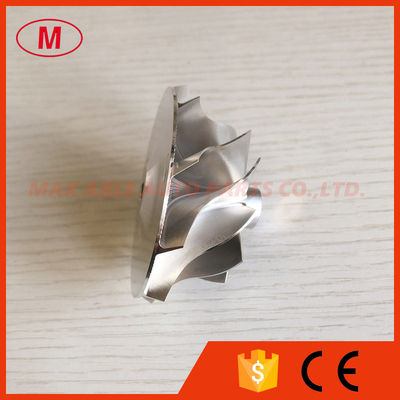

2.TB25 46.50/60.13mm 10+0 blades turbo milling/aluminum 2618/billet compressor wheel
3.SIZE:
Nose diameter:12.46mm
inducer:46.50mm
Exducer:60.13mm
Tapered tip exducer:64.50mm
Tip height:6.15mm
Superback:2.30mm
Overall height:34.50mm
bore size :6.00mm
bore type:through
Trailing angle :55 degree
Cutback:8.50mm
SP height angle:0.00
Splitter height:0.00mm
Blade height:27.19mm
10+0 blades
Forward rotation
Tapered tip Angle:23 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.please email to me or talk to me on online ,if you want to know more details.
All the compressor wheels have been balanced.
We can produce as your requirement.
