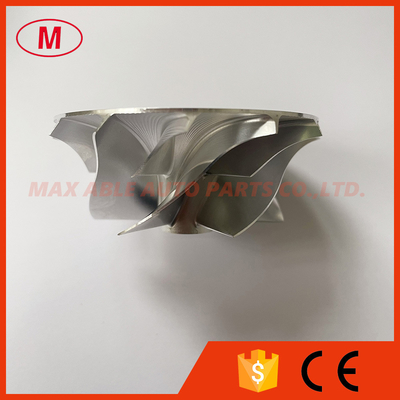

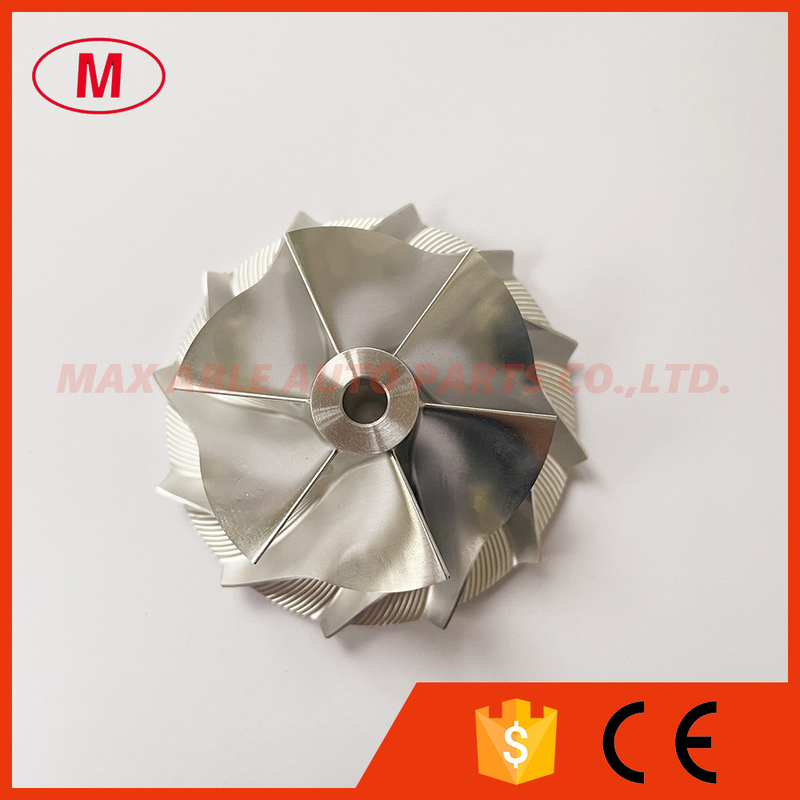

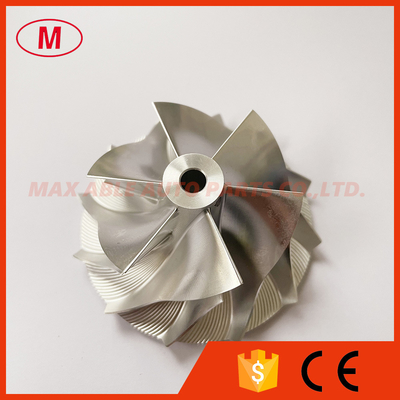

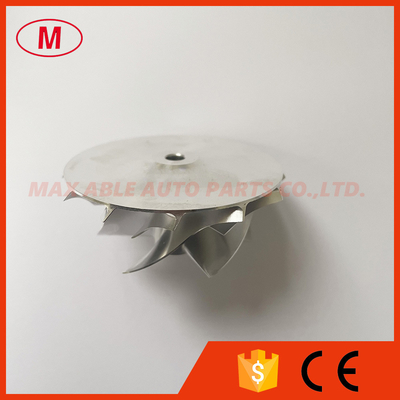

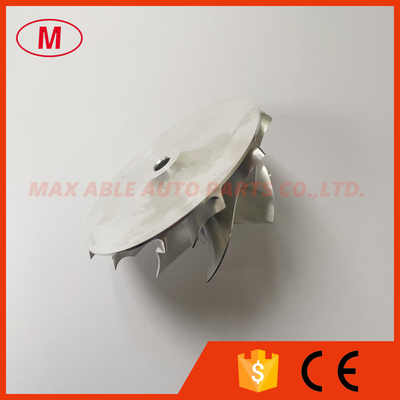

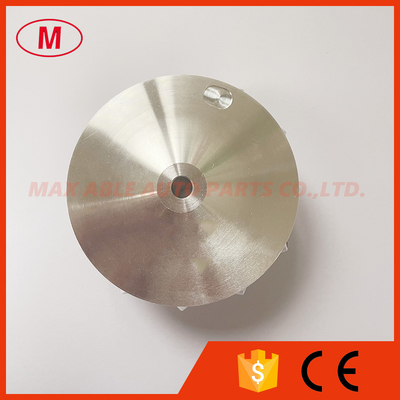

TD04 reverse 43.00/56.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel

TD04 reverse 43.00/56.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel

    • TD04 reverse 43.00/56.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • TD04 reverse 43.00/56.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • TD04 reverse 43.00/56.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • TD04 reverse 43.00/56.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • TD04 reverse 43.00/56.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • TD04 reverse 43.00/56.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel
    • TD04 reverse 43.00/56.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel

    Product Details:

    Brand Name: NO
    Certification: ISO
    Model Number: TD04

    Payment & Shipping Terms:

    Minimum Order Quantity: 1PC
    Packaging Details: neutral packing
    Delivery Time: 3-7 days
    Payment Terms: TT ,western union ,paypal
    Supply Ability: 1000
    Contact Now
    Detailed Product Description
    Type: Turbochargers

    1. MODEL:TD04 reverse
    2.TD04 reverse 43.00/56.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel for 49477-02220 BMW Engine:B46A20M0
    3.Size:
    Nose Diameter:12.00mm
    Inducer:43.00mm
    exducer:56.00mm
    Tapered tip exducer:59.31mm
    Tip height:3.86mm
    Superback:1.90mm
    bore size :5.01mm
    Bore type:through
    Overall height:26.20mm
    Trailing angle:60
    Blade height:22.30mm
    Cutback:.0.0
    Sp Height angle:0.00
    Splitter height:11.40mm
    Tapered tip angle: 30 degree
    6+6 blades reverse
    It is custom size ,please check carefully before buying
    4.High quality and competitive price.
    5.if you want more details, please send email to me.

    All the compressor wheel have been balanced.
    we can produce as your requirement ,the minimun order is 5pcs.
    TD04 reverse 43.00/56.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheelTD04 reverse 43.00/56.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheelTD04 reverse 43.00/56.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheelTD04 reverse 43.00/56.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheelTD04 reverse 43.00/56.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheelTD04 reverse 43.00/56.00mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel
