1. MODEL:CT16V forward

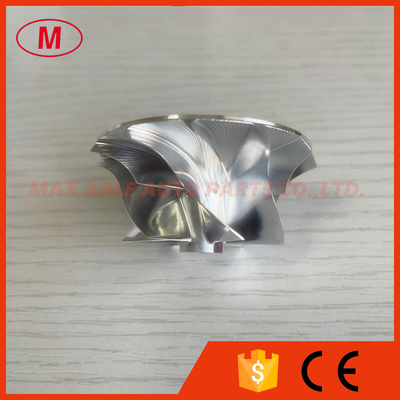

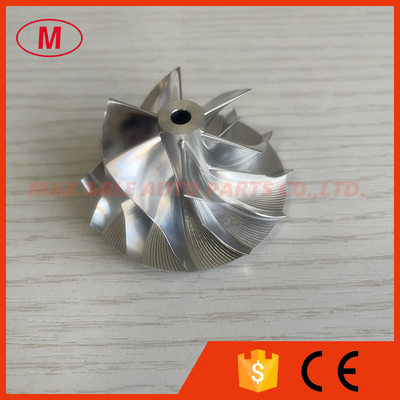

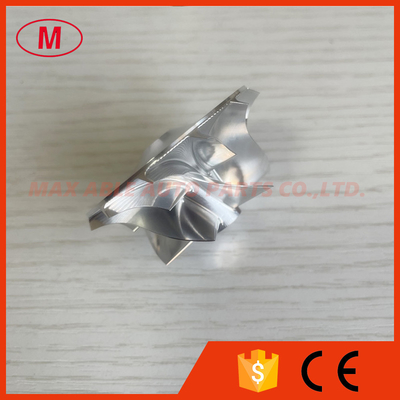

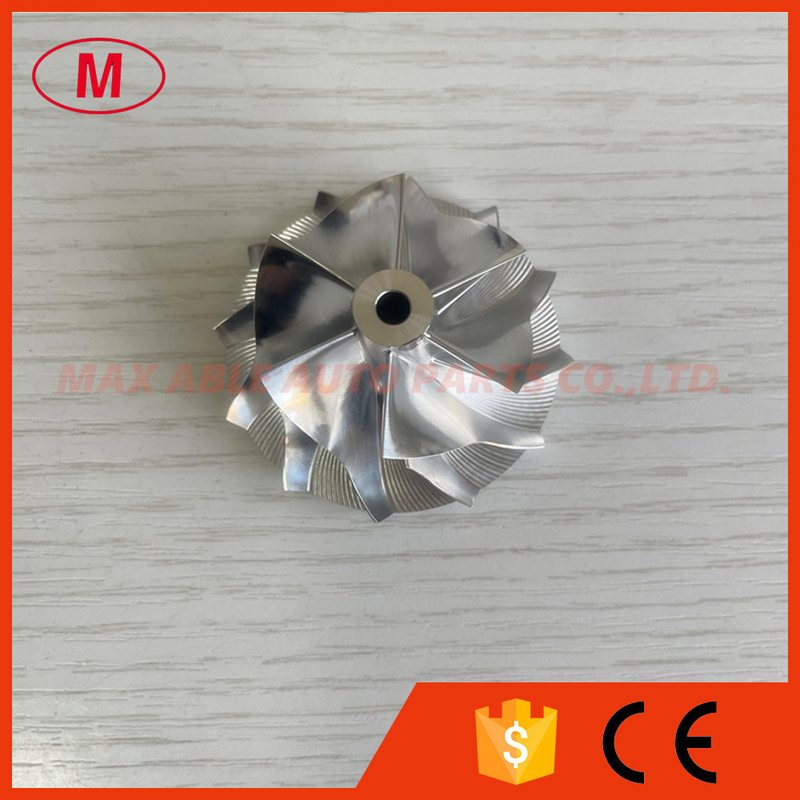

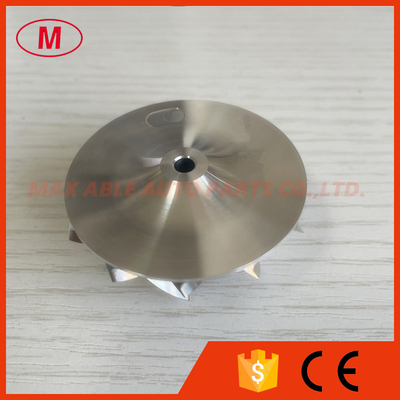

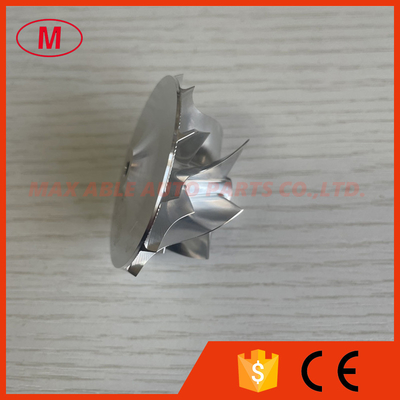

2.CT16V 36.04/48.00mm 6+6 blades high performance turbo billet/milling/aluminum 2618 compressor wheel for 17201-11080 1GD-FTV / 2015-2021 Land Cruiser Prado (KDJ15_, GRJ15_) 2.8 D-4D / 2018-2021 Land Cruiser Prado (KDJ15_, GRJ15_) 2.8 D-4D (GDJ150, GDJ155)
3.Size:
Nose diameter:9.65mm
inducer:36.04mm
Exduder:48.00mm
Tapered tip exducer:51.26mm
Tip height:3.62mm
Superback:3.05mm
Overall height:26.33mm
bore size :4.10mm
Bore type:through
Trailing Angle:60 degree
Cutback:0.0mm
Sp height Angle:0.00
Splitter height:10.55mm
Blade height:21.30mm
Tapered tip Angle:30 degree
6+6 blades
forward rotation
It is for OE compressor housing .
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The more models we also have.
