| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | GT2263 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1.Model:GT2263 forward

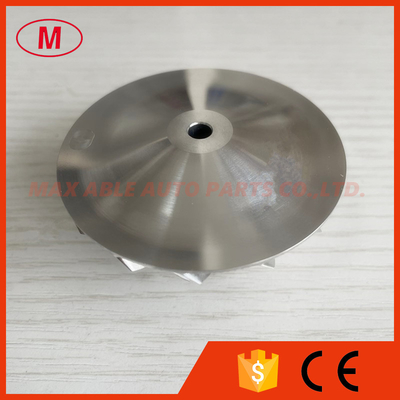

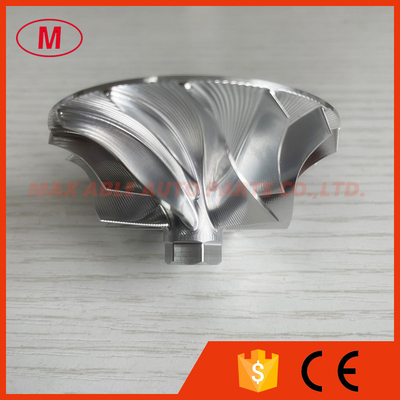

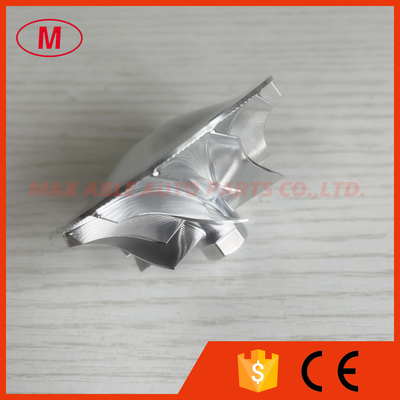

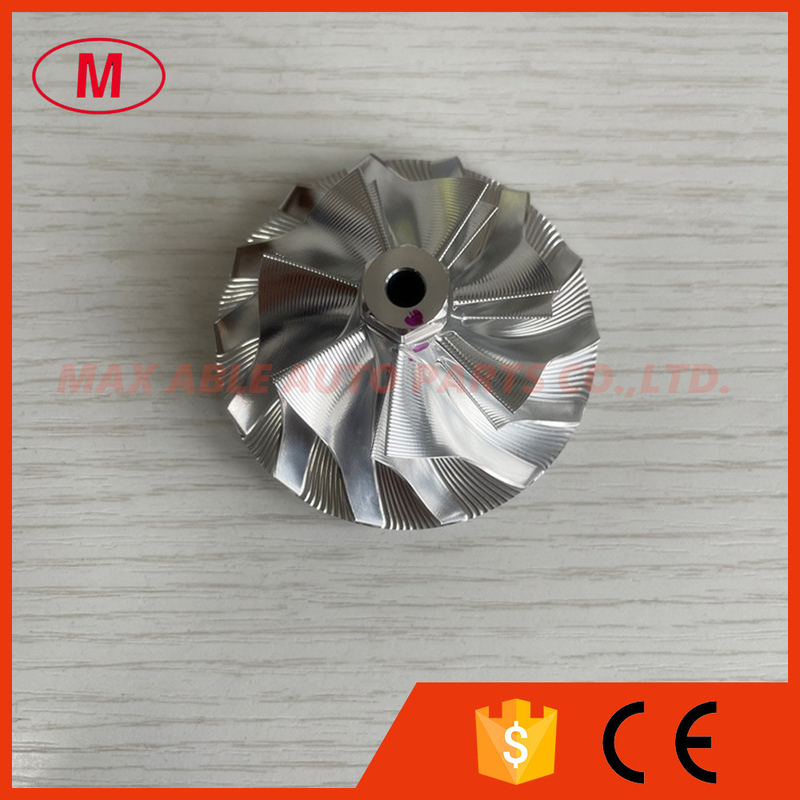

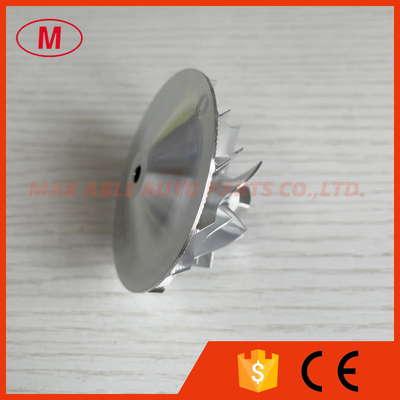

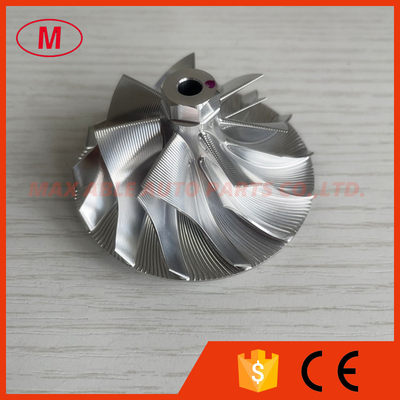

2.GT2263 17201-E0890 43.66/63.17mm 7+7 blades Point milling turbo milling/aluminum 2618/billet compressor wheel
3.SIZE:
Nose Diameter:13.30mm
inducer:43.66mm
Exducer:63.17mm
Tip height:5.04mm
Superback:5.23mm
Overall height:34.82mm
bore size :5.08mm
bore type:through
Trailing angle:45 degree
Cutback:2.7mm
SP Height angle:1.00
Blade height:21.80mm
Splitter height:15.40mm
7+7blades
forward rotation
Tapered tip angle:0 degree
It is for OE compressor housing
4.Good quality and competitive price
5. aluminum 2618/milling/ billet high performance compressor wheel
6.Please send email to me or talk to me on online ,if you want to know more details.
All the compressro wheel have been balanced.
we can produce as your requirement ,the minimun order 5pcs
