| Brand Name: | no |
| Certification: | ISO |
| Model Number: | KP39 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | DISCUSS |
| Packaging Details: | Neutral packing |
| Delivery Time: | 3-7 DAYS |
| Payment Terms: | T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 1000PCS |
1. MODEL:KP39 Forward

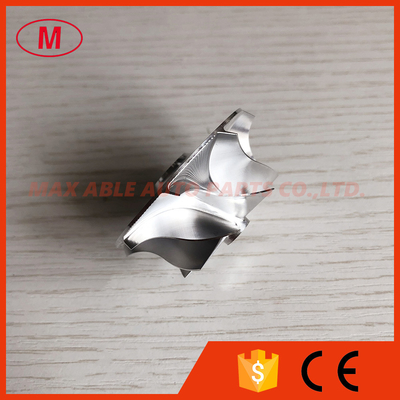

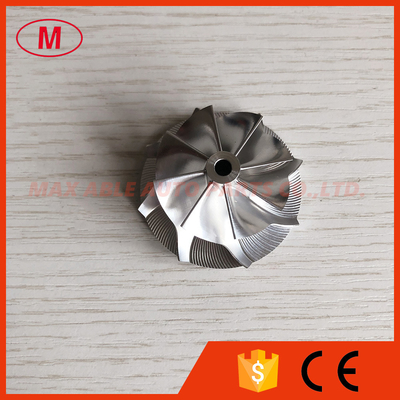

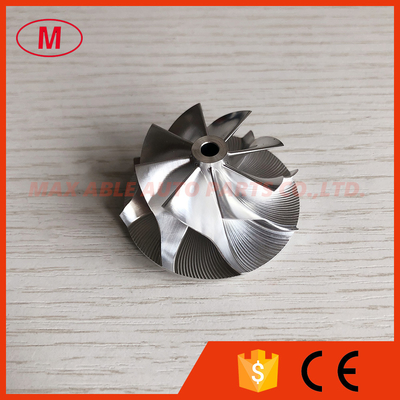

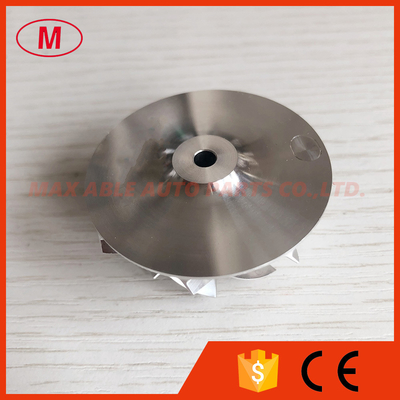

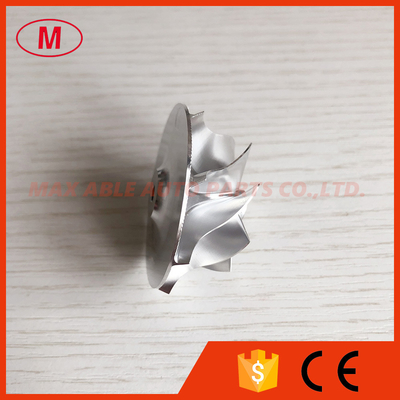

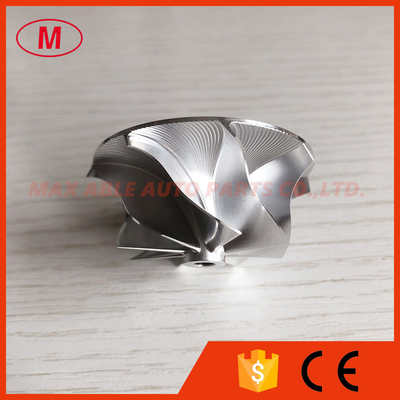

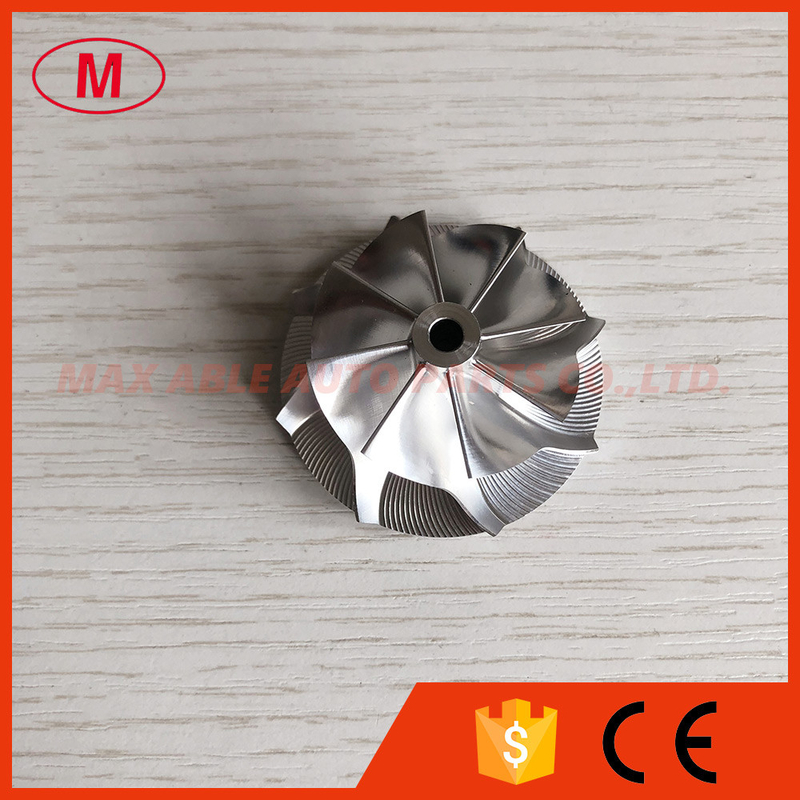

2.KP39 35.00/46.00mm 8+0 blades Turbo Billet/aluminun 2618/milling compressor wheel
3.Size:
Nose diameter:8.34mm
inducer:35.00mm
Exduder:46.00mm
Tapered tip exducer:48.15mm
Tip height:3.96mm
Superback:2.81mm
Bore size :4.10mm
bore type:through
Overall height:23.60mm
Blade height:19.00mm
Cutback:2.0mm
splitter height:0.00
sp height angle:0.00
Trailing Angle:60 degree
8+0 blades
Foward rotation
tapered tip angle:19 degree
it is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.
We can produce as your requirement.
The minimum order is 5pcs
All the billet compressor wheels have been balanced.
The more models we also have.
