Max Able Auto Parts Co.,Ltd.
Customer Satisfy is the eternal pursue of corporation.
Customer Satisfy is the eternal pursue of corporation.
 |
| Brand Name: | NO |
| Certification: | ISO |
| Model Number: | RHF5 |
| Minimum Order Quantity: | 1PC |
|---|---|
| Packaging Details: | neutral packing |
| Delivery Time: | 3-7 days |
| Payment Terms: | TT ,western union ,paypal |
| Supply Ability: | 1000pcs |
1. MODEL:RHF5 forward

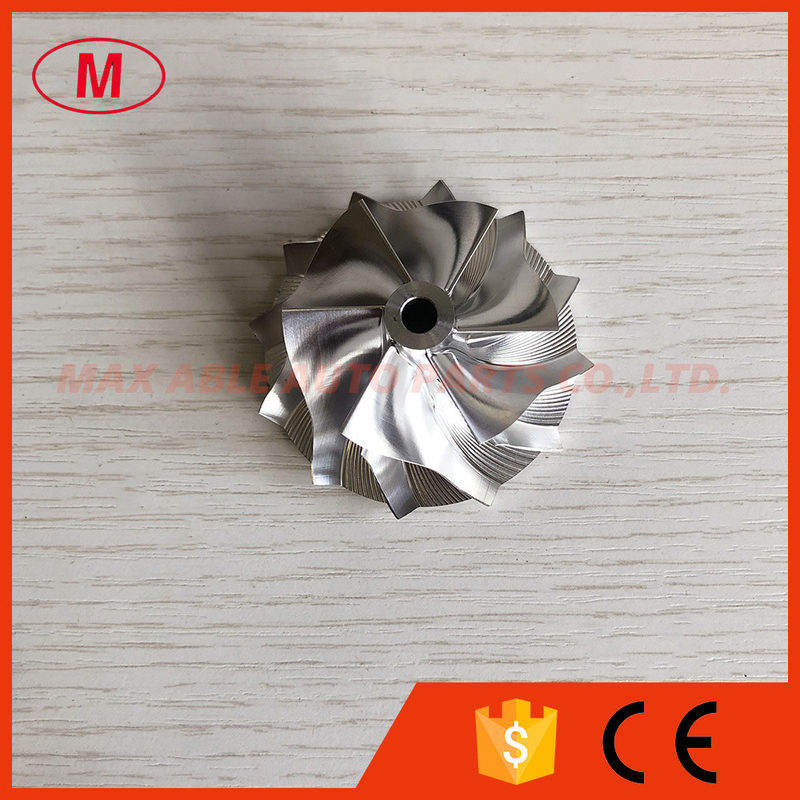

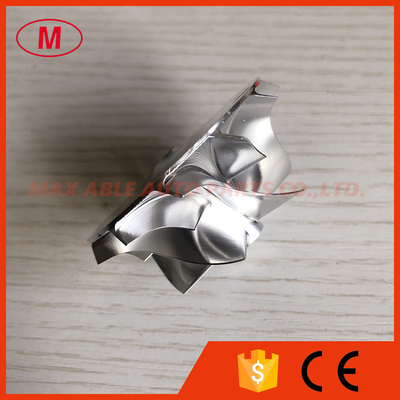

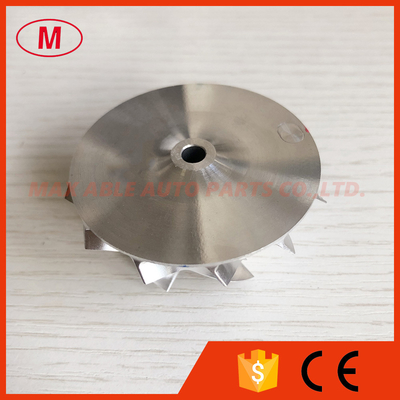

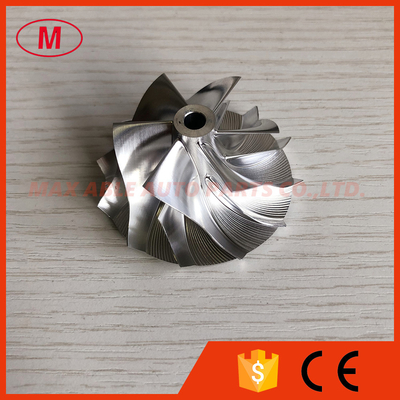

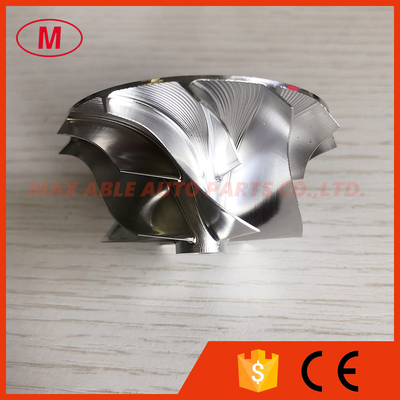

2. RHF5 forward 39.94/52.50mm 6+6 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel for 06H145702T A4/A5/A6/Q5/S4 Allroad Passat Seat Exeo
3.Size:
Nose diameter:10.00mm
Inducer:39.94mm
exducer:52.50mm
Tapered tip exducer:57.07mm
Tip height:4.96mm
Superback:1.53mm
Overall height:27.50mm
Bore size:5.09mm
Bore type:through
Trailing angle:55
Cutback:2.5
SP Height angle:0.00
BladeS height:23.80mm
Splitter height:12.20mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
We also have many other sizes,please don't hestitate to contact me.
All the compressor wheels have been balanced.
